Specifications
Brand Name :
Yuxing
Model Number :
YXX-96-3''-50.8B
Place of Origin :
China
MOQ :
1 set
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
30 SET/MONTH
Delivery Time :
20 workdays
Packaging Details :

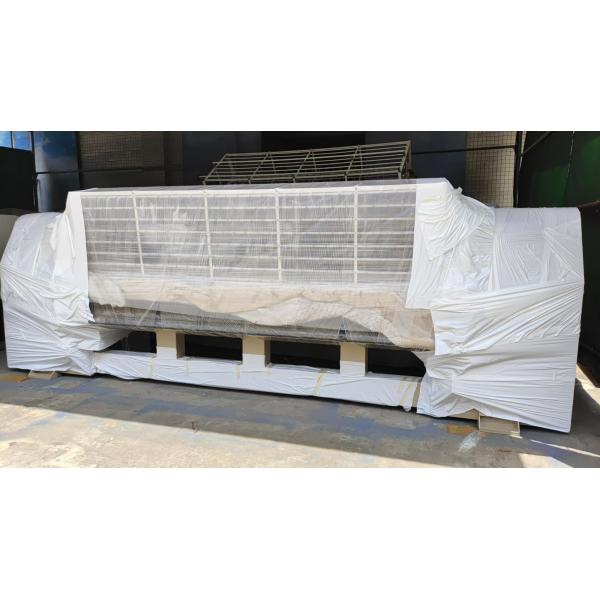

flim packing/ export packing
Condition :
New
Needle Rows :
3
Stitch Size :
3-8mm
Max Sewing Speed :
1400 R/min
Speed :
500-1400 Rpm
Port :
Shenzhen
Imported Screw Rod :
High Precision And High Rigidity
Applicable Industries :
Factory
Description
New Yuxing Computer Multi Needle Rotary Hook Quilting Machine with 2 Needle Row High Speed 1600r/min
Product Description
  • Can replace most functions of two needle bar shuttle quilting machines
  • Two needle row unique combination design with 3-inch front-to-back needle bar spacing and 2-inch left-to-right needle space; back needle row is adjustable to achieve 1-inch front-back needle spacing
  • Drum structure design allows Y-axis continuous production

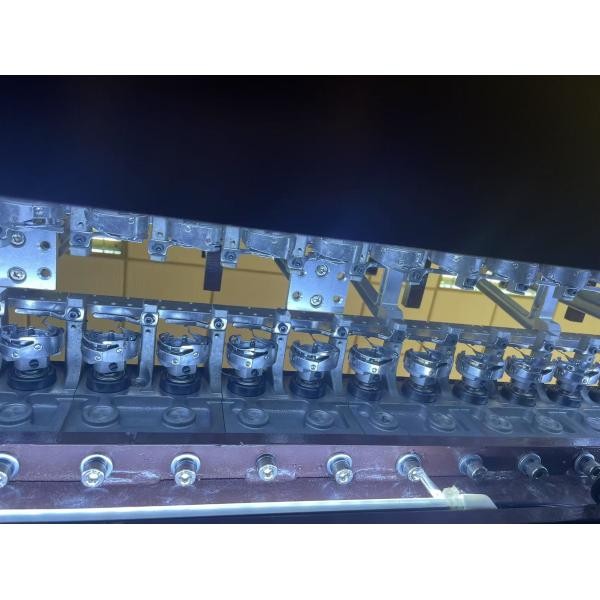

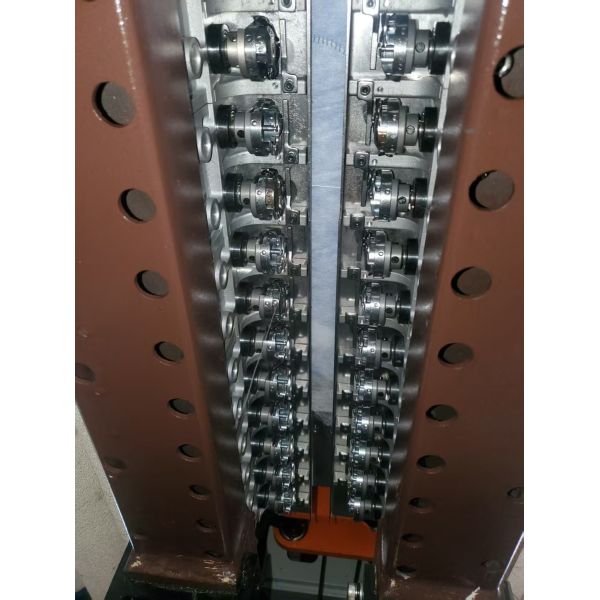

  • Large rotating shuttle provides high speed, high efficiency, and low noise operation
  • Computer-controlled speed adjustment from 500-1600r/min with stitch length adjustable between 2mm-8mm
  • X, Y, Z axes all use high-power servo motors for high precision, beautiful stitches, and reduced thread breakage
  • Direct pattern drawing capability using mouse on machine computer, compatible with embroidery design format (.DST); patterns can be copied via USB for easy custom design creation
  • Automatic stop function when front or bottom thread breaks, with tension maintenance device for smooth fabric feeding
  • Special models available according to customer requirements
New Yuxing Computer Multi Needle Rotary Hook Quilting Machine with 1600r/min High Speed and High Precision Screw Rod
Technical Parameters
Parameter (Unit mm) YXX-68-3"-50.8B YXX-80-3"-50.8B YXX-96-3"-50.8B
Size: L × W × H 3900 × 1000 × 1860 4300 × 1000 × 1860 4700 × 1000 × 1860
Weight 4000kg 4500kg 5500kg
Quilting Width 1700 2000 2450
Needle Bar Space 76.2(3") 76.2(3") 76.2(3")
Needle Space 50.8 50.8 50.8
X-axis Movement 204 204 254
Quilting Thickness ≤30 ≤30 ≤30
Stitch 2-8 2-8 2-8
Output 10-180m/h 10-180m/h 10-180m/h
Needle Type #14,#16 #14,#16 #14,#16
Rolling Speed 500-1600r/min 500-1600r/min 500-1600r/min
Rated Voltage (AC) 380V/50HZ 220V/60HZ 380V/50HZ 220V/60HZ 380V/50HZ 220V/60HZ
Power 5.5kw 7.0kw 8.0kw
Applications
This high-speed quilting machine is designed for industrial textile manufacturing, bedding production, upholstery manufacturing, and other applications requiring precision quilting with high efficiency and customizable patterns.
