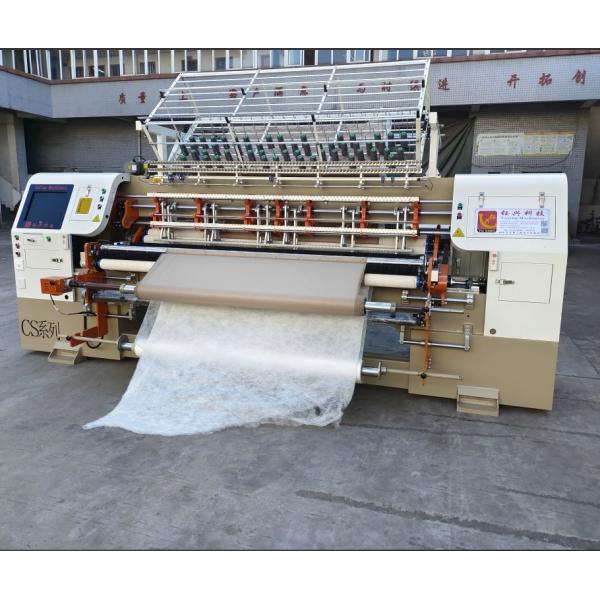

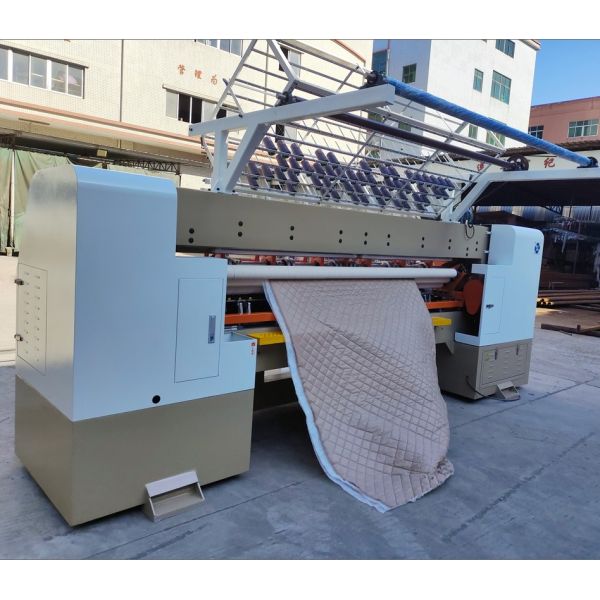

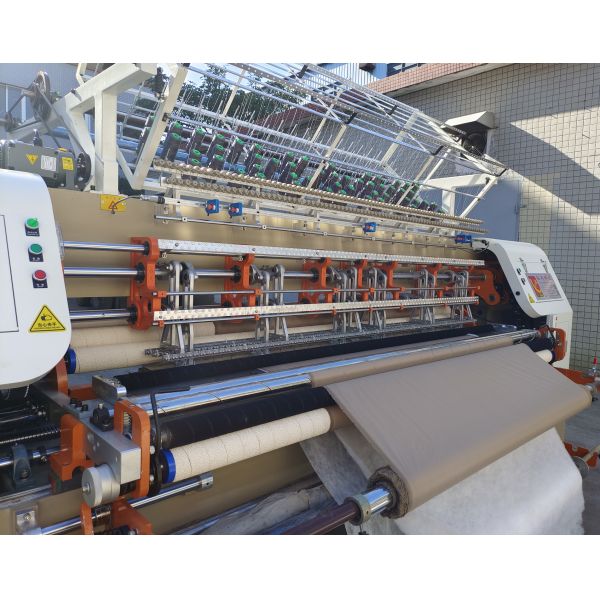

1200RPM 210CM Width Computerized Industrial Quilting Machine For Duvets
1200RPM 210CM Width Computerized Industrial Quilting Machine For Duvets
1200RPM 210CM Width Computerized Industrial Quilting Machine For Duvets
1200RPM 210CM Width Computerized Industrial Quilting Machine For Duvets
1200RPM 210CM Width Computerized Industrial Quilting Machine For Duvets
1200RPM 210CM Width Computerized Industrial Quilting Machine For Duvets
Specifications
Brand Name :
Yuxing
Model Number :
YXS-96-2CS
Certification :
CE
Place of Origin :
China
MOQ :
1 SET
Price :
Negotiable
Payment Terms :
T/T,L/C
Supply Ability :
30 SETS/MONTH
Delivery Time :
15 Days
Packaging Details :
Packed by plastic film
Product name :
Computer quilting machine
Guarranty :
12 months
Dimension(l*w*h) :
4300*1500*1700 MM
Quilting width :
2.45 M
sewing speed :
500-1200 RPM
Power :
6.5 KW
Weight :
5000 KG
After-sales service provided :
Online service
Description

Industrial Computerized 50 Mm Material Sewing And Quilting Machine


Computerized Quilting Machine Function:

  1. The machine adopts advanced computer control and precision mechanical technology for superior performance.
  2. The needle bar operates within a needle bar frame, eliminating the need for additional lubrication and preventing material contamination from oil.
  3. The needle bar frame is designed with a robust and durable structure, significantly reducing maintenance costs.
  4. The saddling rack and roller are powered by high-pfficiency servo motors for precise and reliable operation.
  5. The main spindle is equipped with a frequency conversion device for smooth and adjustable speed control.
  6. Speed is computer-controlled, with a maximum capacity of 1200 RPM, and stitch length can be set between 2mm and 8mm.
  7. The machine supports 360° random quilting and offers limitless multi-span and independent quilting capabilities.
  8. A compensation function ensures consistent stitching, even with thick materials, effectively solving looping pattern issues.
  9. Advanced thread break detection technology automatically stops the machine when the thread is broken, ensuring uninterrupted operation.
  10. An infrared safety system enhances operator safety during machine operation.
  11. The pattern editing system is user-friendly and easy to learn, simplifying the design process.


Model YXS-96-2CS
Dimension(L×W×H) 4600*1500*1700
Quantity of needle bar 2
Quilting width 2.4M
Space between needle rows 76.2(3')/ 152.4(3'+3')
Space between needles 25.4
X-axis movement dispacent 254
Thickness of quilting ≤58
Stitch length 2~8 mm
Speed of operation(m/H) 20~210 m/hour
Needle type 16#,19#
Speed of main shaft(RPM) 500~1200RPM
Total power 6 KW
Voltage

380V/50HZ

220V/60HZ
Gross weight 5000kg


1200RPM 210CM Width Computerized Industrial Quilting Machine For Duvets

1200RPM 210CM Width Computerized Industrial Quilting Machine For Duvets

Suitable for: apparel, bedding, duvets, comforters, quilts, handbags, sleeping bags, nightwear, and home decor items.

1200RPM 210CM Width Computerized Industrial Quilting Machine For Duvets
