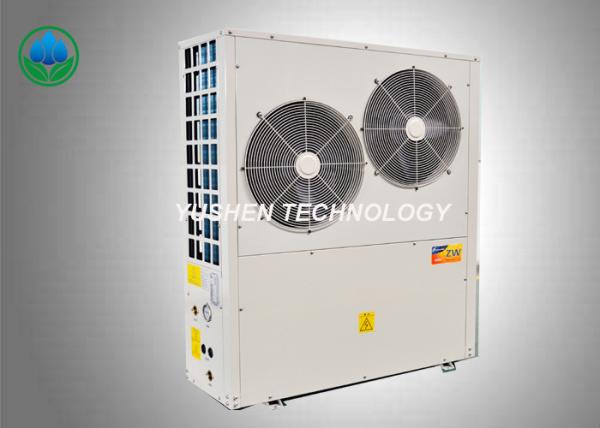

6 HP DC Air Source Heat Pump 1120 × 440 × 1360 Mm For Cooling And Heating System
6 HP DC Air Source Heat Pump 1120 × 440 × 1360 Mm For Cooling And Heating System
Specifications
Brand Name :
Yushen
Model Number :
SLNA-018U
Certification :
CCC, ISO, CQC
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
10 sets/day
Delivery Time :
1-2 weeks
Packaging Details :
Reinforced Carton box with wooden tray
Key word :
Home Air Source Heat Pump
Compressor capacity :
6HP
Function :
Heating anc cooling
Size :
1120×440×1360mm
Weight :
130Kg
Air blow type :
Side
Description

6HP Home DC Air Source Heat Pump For Cooling and heating system

Quick Details

  • Commercial Air Source Heat Pump is 40% energy-saving than air conditioner in heating. It is same energy cosumption in cooling
  • Hot or cool water circulate inside the system, safe and comformtable
  • High degree of automation, simple operation, unattended operation
  • It can be combined with fan coil, radiator, floor heating, etc.

Model data

Model SLNA-018U
Compressor capacity 6HP
Function Heating and Cooling
Electricity 220V-1N-50Hz
Working conditions ℃ -25~～+45
Data Heata Nominal capacity KW 12
Input power KW 5.0
COP / 2.4
Heating IPLV(H) 2.7
Coolb Nominal capacity KW 14
Input power KW 5.6
COP / 2.5
Cooling IPLV(C) 2.7
A7W35c KW/COP 19.5/4.21
A2W35 KW/COP 16.8/3.65
A-7W35 KW/COP 12.0/3.0
A-15W55 KW/COP 10.8 /1.94
A-20W45 KW/COP 9.2/2.02
Max. running currency A 35.6
Compressor quantity set 1
Refrigerant/charging quantity kg / R22/4.80
Air blow type / Side
Water pipe diameter inch G1.2〞
Rating flow m³/h 3.2
Water side pressure loss kPa ≤45
Noise level dB(A) 61
Overall dimensions(L×W×H) mm 1120×440×1360
Weight kg 249


a: Nominal heating conditions: ambient dry bulb temperature-12℃, wet bulb temperature-14℃, outlet water temperature 41℃, water flow 0.172 * nominal heating capacity

b:Nominal refrigeration conditions: ambient dry bulb temperature 35℃, outlet water temperature 7℃, water flow 0.172 * nominal cooling capacity

c:A7W35 working condition: inlet air temperature 7℃, outlet water temperature 35℃

Products Advantages

  • Suitable for environmental temperature:-25℃ to +45 ℃ /-13℉ to 113 ℉
  • 35% more powerful than other products, long heating time and less defrosting time
  • Quality Components such as Copeland compressor, Danfoss valves
  • Pay attention to details such as every stainless-steel screw has cushion to prevent from water corrosion
  • Clean and clear wiring and lining
  • 100% finished products testing

Applications

Villas

office buildings

hotels and restaurants

Apartments
