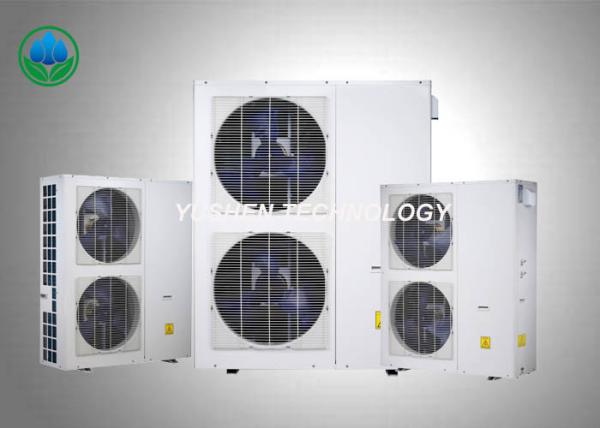

High Efficiency Air Energy Heat Pumps For Home Air Conditioning Machine
High Efficiency Air Energy Heat Pumps For Home Air Conditioning Machine
Specifications
Brand Name :
Yushen
Model Number :
SLNA-017Y
Certification :
CCC, ISO, CQC
Place of Origin :
China
MOQ :
1 set
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
10 sets/day
Delivery Time :
1-2 weeks
Packaging Details :
Reinforced Carton box with wooden tray
Key word :
Home Air Source Heat Pump
Compressor brand :
Copeland
Compressor quantity :
2
Air blow :
side
Weight :
130Kg
Defrosting :
automatic
Description

6HP AC Air Source Heat Pump for Home Air Conditioning Machine

Quick Details

1.Compared with electric water heaters, it maximizes energy saving. The cost of use is only 1/4 of that of electric water heaters. Compared with traditional gas water heaters, it does not consume any gas fuel. The cost of use is only 1/3 of that of gas water heaters.
2. High automation, the control is same easy as AC unit, no need watching
3.It could be connected with more enders, e.g. AC fans, radiator, underfloor coil.

Model data

Model SLNA-017Ycode name.pdf
Compressor capacity 6HP
Function Heating and Cooling
Electricity 380V-3N-50Hz
Working conditions ℃ -25~～+45
Data Heata Nominal capacity KW 12
Input power KW 4.55
COP / 2.4
Heating IPLV(H) 2.7
Coolb Nominal capacity KW 14
Input power KW 5
COP / 2.5
Cooling IPLV(C) 2.7
A7W35c KW/COP 19.5/4.21
A2W35 KW/COP 27/3.60
A-7W35 KW/COP 21.5/2.8
A-15W55 KW/COP 19.7 /1.94
A-20W45 KW/COP 18.1/2.02
Max. running currency A 25
Compressor quantity set 2
Refrigerant/charging quantity kg / R22/4.8
Air blow type / Side
Water pipe diameter mm G1.2〞
Rating flow m³/h 3.2
Water side pressure loss kPa ≤45
Noise level dB(A) 62
Overall dimensions(L×W×H) mm 1120×440×1360
Weight kg 130

a: Nominal heating conditions: ambient dry bulb temperature-12℃, wet bulb temperature-14℃, outlet water temperature 41℃, water flow 0.172 * nominal heating capacity

b:Nominal refrigeration conditions: ambient dry bulb temperature 35℃, outlet water temperature 7℃, water flow 0.172 * nominal cooling capacity

c:A7W35 working condition: inlet air temperature 7℃, outlet water temperature 35℃

Products Advantages

  • Suitable for environmental temperature:-25℃ to +45 ℃ /-13℉ to 113 ℉
  • Large-area hydrophilic aluminum heat exchangers increase the heat production.The four-row tube V-shaped arrangement has high heat exchange efficiency and uniform wind speed distribution.It adopts 9.52*0.35 internal thread high-efficiency heat exchange copper tube and 3.1mm large-format hydrophilic aluminum fins with better hydrophobicity; it improves the operating efficiency during frosting and reduces the number of defrosting.

  • The optimized long flow path design and wide expansion of the expansion throttle ensure uniform distribution of refrigerant in low temperature environments. Ensure even frosting, complete defrosting, strong heating and efficient operation

  • 35% more powerful than other products, long heating time and less defrosting time
  • Quality Components such as Copeland compressor, Danfoss valves
  • Pay attention to details such as every stainless-steel screw has cushion to prevent from water corrosion
  • Multi-throttle channel design is accurate.

  • Multiple energy-saving devices in a single system, precise control of refrigerant flow, enabling the unit to maximize heat/cooling capacity and maximum energy efficiency in various working environments, reducing operating costs

  • 100% finished products testing

Learn more about air source heat pump

.Safety

There is a safety hazard of electric leakage in the electric water heater. The gas water heater has the problem of gas poisoning. Compared with the two water heaters, the air energy water heater passes through the medium heat exchange, avoiding the direct contact between the electric heating element and the water, thus solving the electric water heater. There are hidden dangers of leakage, and secondly, because the raw material is air, the possibility of gas explosion or gas poisoning in gas water heaters is also excluded, which makes people more comfortable and worry-free.

High Efficiency Air Energy Heat Pumps For Home Air Conditioning Machine
