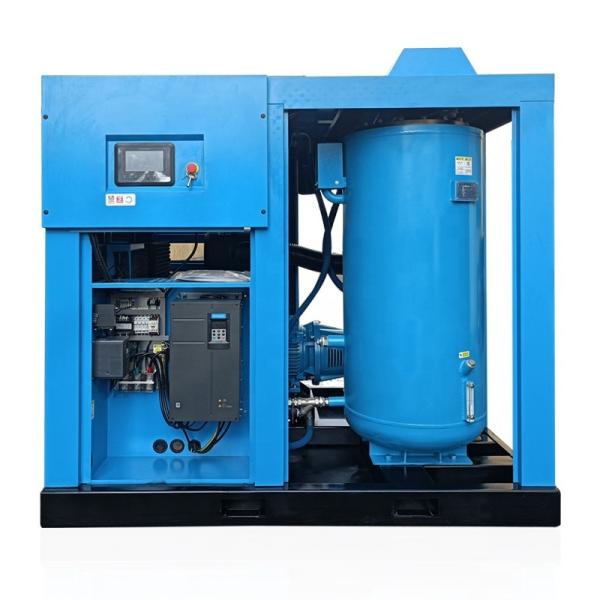

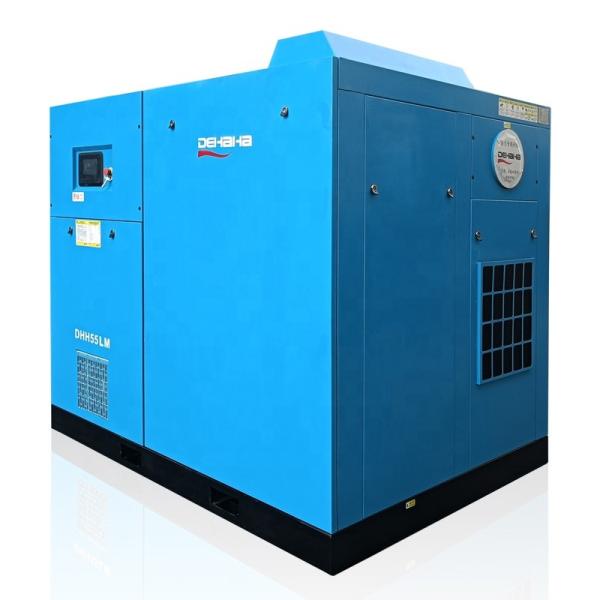

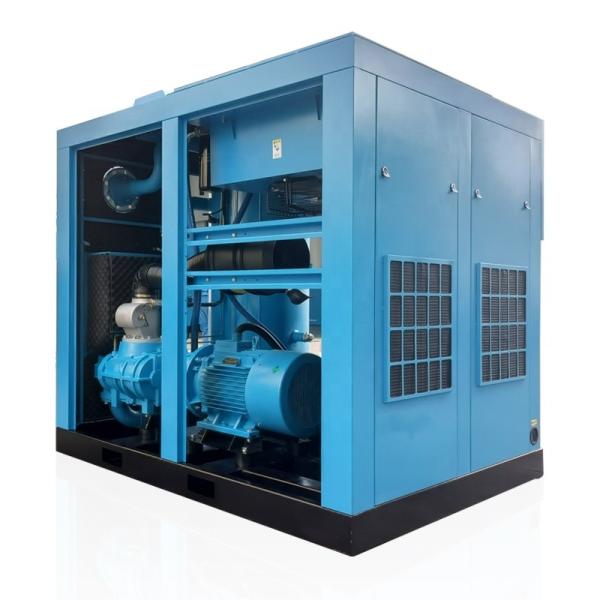

72db Low Pressure Air Compressor 75hp Industrial Screw Compressor
72db Low Pressure Air Compressor 75hp Industrial Screw Compressor
72db Low Pressure Air Compressor 75hp Industrial Screw Compressor
72db Low Pressure Air Compressor 75hp Industrial Screw Compressor
72db Low Pressure Air Compressor 75hp Industrial Screw Compressor
72db Low Pressure Air Compressor 75hp Industrial Screw Compressor
72db Low Pressure Air Compressor 75hp Industrial Screw Compressor
72db Low Pressure Air Compressor 75hp Industrial Screw Compressor
72db Low Pressure Air Compressor 75hp Industrial Screw Compressor
72db Low Pressure Air Compressor 75hp Industrial Screw Compressor
72db Low Pressure Air Compressor 75hp Industrial Screw Compressor
72db Low Pressure Air Compressor 75hp Industrial Screw Compressor
Specifications
Place of Origin :
Jiangsu
Brand Name :
DHH
Model Number :
DHH55LM
Packaging Details :
Wooden box
Supply Ability :
600set/months
Price :
Negotiate
Certification :
CE/ISO9001
MOQ :
1set
Delivery Time :
25days
Payment Terms :
T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
Product name :
Air Compressor
Type :
Rotary
Configuration :
Stationary
Power Source :
AC POWER
Lubrication Style :
Lubricated
Voltage :
380V/50hz
Dimension(L*W*H) :
2100*1677*1890 mm
Weight :
2000kg
Working Pressure :
2 bar, 5 bar, 3bar
Application :
General Industry
Air delivery :
12~21m3/min 424~741cfm
Air end :
Hanbell/Jiuyi
Motor :
Suma/Delta/Simens
Cooling method :
Air Cooling
Pressure :
2~5bar
OEM :
Avaliable
Oil content :
less than 3ppm
MOQ :
1set
Description

General Industrial Screw Compressor 55kw/75hp Low Pressure Air-compressors

Model:DHH55LM
Air delivery: 12~21m³/min
Working pressure: 2~5bar
Power:55kw 75hp
Motor:Suma
Air end:HANBELL/JIUYI
Noise:72db
Dimension:2000*1677*1892mm
Weight:2000kg
Transmiss method:driven
Oil content:≤3ppm
Starting method:Frequency conversion start
Control method:Intelligent controls
Lubricant quantity:50L
Outlet temperature:Ambient temperature+15°C
Ooncuss:≤7mm/s
Product features of low pressure screw air compressor

1. Adopt large rotor and low speed to ensure high performance of the machine;
2. Increase oil and gas separation equipment to ensure that the export oil content is ≤3ppm;
3. The air source of the low-pressure screw air compressor is clean, which reduces the number of cleaning nozzles of texturing machines and other equipment, and improves the quality of the finished product;
4. The heat dissipation area of the oil cooler is increased by more than 30% to ensure normal operation in summer without over-temperature;
5. Independently design the internal pressure ratio of the host to ensure a better specific power;
6. Intelligent control system, automatically adjust the exhaust volume according to the customer's usage (frequency conversion model).
7. For the texturing industry, ensure long-term continuous operation, set fault warnings, and do not stop immediately, so that customers are fully prepared for shutdown;
8. Adopting dual air outlet design, the air outlet temperature can be adjusted according to climate changes, meeting customer needs to a greater extent, and achieving high efficiency and energy saving at the same time.

1. Efficient airend
There is no intermediate transmission, so there is no energy loss; direct drive increases reliability and reduces maintenance costs; large rotors run at low speeds, with higher efficiency, lower noise, lower vibration, and lower energy consumption.

2. High-quality independent oil pump forced lubrication design
(1) Forced lubrication with independent oil pump;
(2) Ensure that there is sufficient fuel injection and a better air-fuel mixture ratio under extremely low exhaust pressure (2kg).

3. Increase customized oil and gas separation system
Increase the customized oil and gas separation system to ensure the ultimate oil and gas separation effect and ensure that the oil content of the air is less than 3ppm.
Technical Parameters

Low-pressure permanent magnet variable frequency air compressor parameters:

Model Air delicery
(m3/min)		 Working pressure
(Mpa)

Power

(kW)

Noise

(dB)

 Outlet diameter Dimension(mm)

Weight

(kg)
Length Width Height
DHH22LM 6.30 0.3 22 72 G2 1600 1060 1470 950
5.30 0.4
DHH30LM 7.02 0.3 30 72 G2 1600 1060 1470 1050
6.90 0.4
6.21 0.5 G11/2 1500 940 1415 890
DHH37LM 10.00 0.3 37 72 G2 2000 1120 1590 1180
9.60 0.4
8.00 0.5
DHH45LM 12.60 0.3 45 72 G2 2000 1120 1590 1260
12.10 0.4
9.30 0.5
DHH55LM 21.00 0.2 55 76 DN150 2100 1677 1892 2000
15.61 0.3
14.80 0.4 G2 2000 1120 1590 1350
12.00 0.5
DHH75LMH 29.50 0.2 75 76 DN150 2100 1677 1892 2100
21.50 0.3
21.00 0.4
15.50 0.5 G2 2000 1120 1590 1450
DHH90LMH 36.00 0.2 90 76 DN150 3050 2000 2000 3300
28.80 0.3
22.60 0.4
21.00 0.5
DHH110LMH 44.50 0.2 110 76 DN150 3050 2000 2000 3450
35.50 0.3
28.50 0.4
DHH132LMH 47.00 0.2 132 82 DN200 3720 2100 2150 4800
44.50 0.3
35.30 0.4
28.30 0.5
DHH160LMH 55.70 0.2 160 82 DN200 3720 2100 2150 5100
51.00 0.3
44.00 0.4
DHH185LMH 58.00 0.3 185 85 DN250 4010 2250 2250 5800
49.00 0.4
DHH200LMH 62.00 0.3 200 85 DN250 4010 2250 2250 6000


55.30
 0.4
