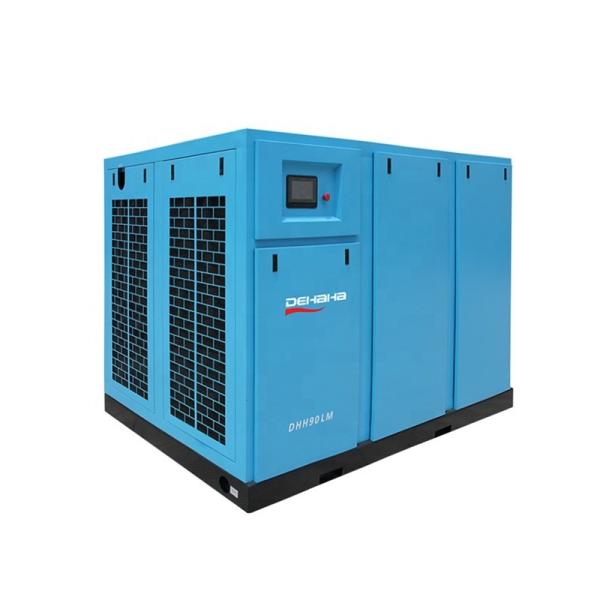

5 Bar High Capacity Air Compressor 22kw Low Pressure Vsd Screw Compressor
5 Bar High Capacity Air Compressor 22kw Low Pressure Vsd Screw Compressor
5 Bar High Capacity Air Compressor 22kw Low Pressure Vsd Screw Compressor
5 Bar High Capacity Air Compressor 22kw Low Pressure Vsd Screw Compressor
5 Bar High Capacity Air Compressor 22kw Low Pressure Vsd Screw Compressor
5 Bar High Capacity Air Compressor 22kw Low Pressure Vsd Screw Compressor
5 Bar High Capacity Air Compressor 22kw Low Pressure Vsd Screw Compressor
5 Bar High Capacity Air Compressor 22kw Low Pressure Vsd Screw Compressor
5 Bar High Capacity Air Compressor 22kw Low Pressure Vsd Screw Compressor
5 Bar High Capacity Air Compressor 22kw Low Pressure Vsd Screw Compressor
5 Bar High Capacity Air Compressor 22kw Low Pressure Vsd Screw Compressor
5 Bar High Capacity Air Compressor 22kw Low Pressure Vsd Screw Compressor
Specifications
Place of Origin :
Jiangsu
Brand Name :
DHH
Model Number :
DHH90LDM
Certification :
CE/ISO9001
Packaging Details :
Wooden box
Price :
Negotiate
MOQ :
1set
Delivery Time :
25days
Payment Terms :
T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.
Supply Ability :
600set/months
Motor power :
90KW
Air delivery :
24.5m3/min
Type :
Rotary
Configuration :
Stationary
Lubrication Style :
Lubricated
Voltage :
380V/50hz
Dimension(L*W*H) :
2800*1828*1590mm
Weight :
3620kg
Working Pressure :
5 bar
Warranty of core components :
1 Year
Application :
General Industry
Air end :
Hanbell
Motor :
Suma
Cooling method :
Air Cooling
Pressure :
5 bar
Bearing :
Sweden SKF
Description

3 bar to 5 bar Low Pressure Air Compressor 22kw high capacity air compressor

Company Information

Our Factory has been in air compressors industry for 26 years, now we have fixed speed (belt driven), fixed speed (direct driven) screw air compressors; VSD variable speed frequency screw air compressors, inverter compressors work very good and save electricity. Besides we also have the newest technology for permanent magnet frequency screw air compressors, this new technology screw air compressor super environmental and save energy, quite lower noise, almost mute, best choice if your work shop have high request of environment.

Welcome to choose us as your partner and best supplier!

Technical parameters

Low-pressure permanent magnet variable frequency air compressor parameters:

Model

Volume flow

(m3/min)

Pressure

(Mpa/bar)

Power

(kW)

Noise

(DB)

 Outlet diameter Dimension(mm)

Weight

(kg)
DHH37LM 10.0 0.3/3 37 65 G2 2000*1120*1590 1180
9.6 0.4/4
8 0.5/5
DHH45LM 15.1 0.2/2 45 65 G2 2100*1677*1892 2500
12.2 0.4/4
9.3 0.5/5
DHH55LM 22 0.2/2 55 70 DN150 2800*1860*1900 3200
15.61 0.3/3 DN100 2100*1677*1892 2600
15.48 0.4/4
12.00 0.5/5
DHH75LMH 29.5 0.2/2 75 70 DN150 2800*1860*1900 3200
21.5 0.3/3
21.0 0.4/4
16.1 0.5/5 DN65 2400*1630*1980 1850
DHH90LMH 31.0 0.2/2 90 72 DN150 2800*1860*1900 3300
28.8 0.3/3
21.0 0.5/5
DHH110LMH 37.0 0.2/2 110 72 DN200 2900*2100*2150 4800
33.0 0.3/3
28.5 0.4/4
DHH132LMH 47 0.2/2 132 78 DN200 2900*2100*2150 4950
43.8 0.3/3
32.5 0.4/4
28.3 0.5/5 DN80 2800*1828*2150 3600
DHH160LMH 55.7 0.2/2 160 78 DN300 4500*2200*2200 6800
49.4 03/3 DN200 2900*2100*2150 5100
43.0 0.4/4
DHH185LMH 60.0 0.3/3 185 78 DN200 4500*2200*2200 6900
43.0 0.5/5

5 Bar High Capacity Air Compressor 22kw Low Pressure Vsd Screw Compressor

FAQ

Q1. Are you trading company or manufacture ?

A: We are professional manufacture of screw air compressor of Qidong(Close to Shanghai), China, more than 24 years.

Q2. How long is the delivery time ?
A: For standard voltage ,15 working days. Non-standard ,please contact our sales.

Q3. What's payment term ?
A: T/T, L/C, D/P, Western Union, Paypal, Credit Card, and etc. Also we could accept USD, RMB, Euro and other currency.

Q4. How about your after-sales service ?
A: 1.Provide customers with installation and commissioning online instructions.
2. Well-trained engineers available to overseas service.
3.Worldwide agents and after service avaiable.arrange our engineers to help you training and installation.

Q5. How about your warranty?
A: One year for the whole machine and two years for screw air end, except consumable spare parts.

Q6. Do you have any certificate ?
A: Yes, per different customer's market need ,we can offer CE ,ISO etc certificate.

Q7. What about the maintenance ?
A: First maintenance need to be done after 500Hours, and then every 2000-3000 hours to do the normal maintenance, and consider the actual environment.

Q8. How do you control quality ?
A: 1.The raw materials are strictly inspected
2. Some key parts are imported from overseas
3.Each compressor must pass at least 5 hours of continuous testing before leaving the factory.

Q9. Do you offer OEM service ?
A: Yes.Both OEM & ODM service can be accepted.
