Specifications
Brand Name :
Dehaha
Model Number :
DHH 55LDM
Certification :
CE/ISO9001
Place of Origin :
Jiangsu, China
MOQ :
1set
Price :
Negotiate
Payment Terms :
T/T, L/C, and etc. Also we could accept USD, RMB, Euro and other currency.
Supply Ability :
600set/months
Delivery Time :
45days
Packaging Details :
ply wooden case
Product name :
Air Compressor
Type :
Screw
Configuration :
Stationary
Lubrication Style :
Lubricated
Voltage :
380V/50hz or customized
Capacity :
15.48m3/min at 100hz
Air end :
jiuyi
Motor :
ip54
Cooling method :
Air Cooling
Dimension(L*W*H) :
2400*1630*1980mm
Weight :
1880kg
Warranty :
1 Year
Application :
General Industry
OEM :
Avaliable
Oil content :
less than 3ppm
PLC :
MAN 6090
INVERTER :
innovance
Description
55KW 5.5bar double stage compression pm vsd low pressure screw compressor rotary screw compressor price

Super Premium Efficiency PM Motor (IE4 equivalent) micro screw compressor.

  • Fully enclosed IP54 protection.
  • Reach lE4 efficiency standard.
  • VSD: variable speed drive.
  • Optimal cooling for all speeds and ambient conditions.
  • Bearing free motor requires zero maintenance.
  • UH series Permanent magnets resist to 180°C
  • F grade insulation and B grade temperature rise assessment.
  • High temperature design prevents demagnetization.
Technical Parameters of lubricated screw compressor
Model: dhh55ldm
Free air delivery: 15.48m3/min
Working pressure:5.5 bar
Screw air end rotor lobe: 5:6
Brand of screw air end: Hanbell Taiwan AB series
Control: PLC
Driven: direct
Cooling: by air
Electric motor: Permanent Magnet type 75hp 55KW, protection level IP65, oil cooling
Discharge temperature: less than ambient +8 ℃
Noise: less than 65 dB(A)
Air outlet size: DN65
Dimension:2400*1630*1980mm
Weight: 1880kg
Double Stage PM VSD Low Pressure Screw Compressor 55KW 5.5bar Rotary Screw Compressor

Double Stage PM VSD Low Pressure Screw Compressor 55KW 5.5bar Rotary Screw Compressor

1.DHH Permanent Magnet VSD Screw Compressor Energy-saving technology makes it an indispensable part in your factory.

Features

Motor Power:7.5~55(Kw)
Air Delivery: 0.7~10.3(m3/min)
Working Pressure:7.0~13.0(Bar)
Cooling Method: Oil cooling
Motor protection class: IP65
High-efficiency, One-piece structure

2.DHH Permanent Magnet VSD Screw Compressor Energy-saving technology makes it an indispensable part in your factory.

Features

Motor Power:75~185(Kw)
Air Delivery:13~33.2(m3/min)
Working Pressure:7.0~13.0(Bar)
Cooling Method: Ail cooling
Motor protection class: IP54
High-efficiency, Significant Energy saving

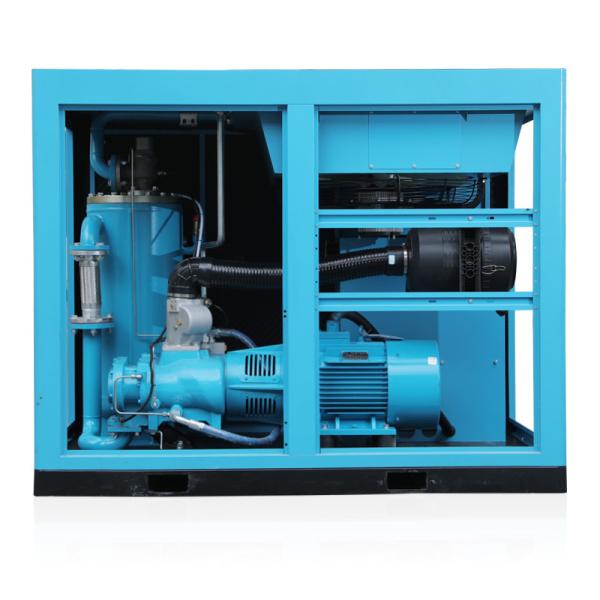

PICTURES OF THE COMPRESSOR

Double Stage PM VSD Low Pressure Screw Compressor 55KW 5.5bar Rotary Screw CompressorDouble Stage PM VSD Low Pressure Screw Compressor 55KW 5.5bar Rotary Screw CompressorDouble Stage PM VSD Low Pressure Screw Compressor 55KW 5.5bar Rotary Screw Compressor

Application Industry
Screw air compressors are widely used in the following industries:Environmental protection, Dry cleaning industry, Precision electronics,Textile industry, Biopharmaceutical, Printing industry,Medical industry, Petrochemical,Communication,Natural gas industry ect.
Company Profile

DHH Compressor Jiangsu Co., Ltd. was established in 1996 and has 26 years of experience in the air compressor industry. It’s an innovative factory which integrates production, trade, service,research and development. We focus on research, development and manufacture screw air compressors of world's newest energy-saving and intelligent internet information system with the industry's top technology and elite engineering team.

Double Stage PM VSD Low Pressure Screw Compressor 55KW 5.5bar Rotary Screw Compressor

Products include:

• Oil-injected screw air compressor (7.5~630kW)

• Oil-free air compressor, screw and scroll (7.5~ 400kW)

• Combined screw air compressor for fiber laser cutting applications

• 3 to 5bar Low pressure screw air compressor (7.5~400kW)

• Portable diesel screw air compressor (42~295kW)

The company has passed ISO9001, EU CE certification, CLASS 0 oil-free certification, German TUV certification, and obtained more than 20 patent certificates. In 2018, we were rated as "High-tech Enterprise" and "Private Technology Enterprise", etc.

Our factory is located in Qidong City, Jiangsu Province, adjacent to Shanghai. We have more than 150 skilled employees and 25 engineers, and we are very strict in every step of manufacturing. The company has a professional international trade center located in Shanghai, China. The company conducts brand promotion and service in the global market with branches in English, French, Russian, Spanish and Portuguese. Now, our valued customers are located in more than 130 countries. Germany technology and 14 years of export experience have helped us to gain more than 50 loyal overseas agents.

DHH's mission is to become a world-renowned high-end brand, with sustainable development, continuously improve its own value, and it is committed to provide our customers with energy-saving products.




FAQ

Q1:Are you factory or trading company?

A1: We are factory.

Q2:Where is your factory located? How can I visit there?

A2: Our factory is located in Qidong City, Jiangsu Province, China. We can pick up you from Shanghai, it’s about 1 hour from Shanghai Pudong Airport to our factory. Warmly welcome to visit us!

Q3: Will you provide some spare parts of the machines?

A3: Yes, of course.

Q4: Warranty terms of your machine?

A4: Two years warranty for Air End, one year for spare part.

Q5: How long will you take to arrange production?

A5:380V 50HZ we can delivery the goods within 14 days. Other electricity or other color we will delivery within 22 days.

Q6:How does your factory do regarding quality control?

A6:Quality is everything. we always attach great importance to quality controlling from the very beginning to the very end. Our factory has gained ISO9001:2015 authentication and CE certificate.

Q7: Can you accept OEM orders?

A7: Yes, with professional design team, OEM orders are highly welcome.
