Specifications
MOQ :
1unit
Model :
P1.53
Module Resolution :
204*104 dots
Gray Scale :
14-16 bit
Brand Name :
Colorsvisionled
Packaging Details :
Flight case with anti-static foam, export-grade packing
Warranty :
2 Years
Protective Technology :
Tile-grade GOB
Screen Size :
1280*1920mm unfolded / 640*1920mm folded
Average Power :
400W
Application :
Indoor advertising, exhibitions, retail, business
Place of Origin :
Shenzhen China
Pixel Pitch :
1.538mm
Certification :
CE,FCC,RoHS,UL,ETL,KC,PSE
Product Name :
Tri-fold Double-sided LED Poster Screen
Model Number :
P1.53
Module Size :
320mm*160mm
Brightness :
700CD
Communication :
USB, Ethernet, WiFi, 4G remote
Delivery Time :
7~15days
Refresh Rate :
≥3840Hz
Peak Power :
1200W
Description

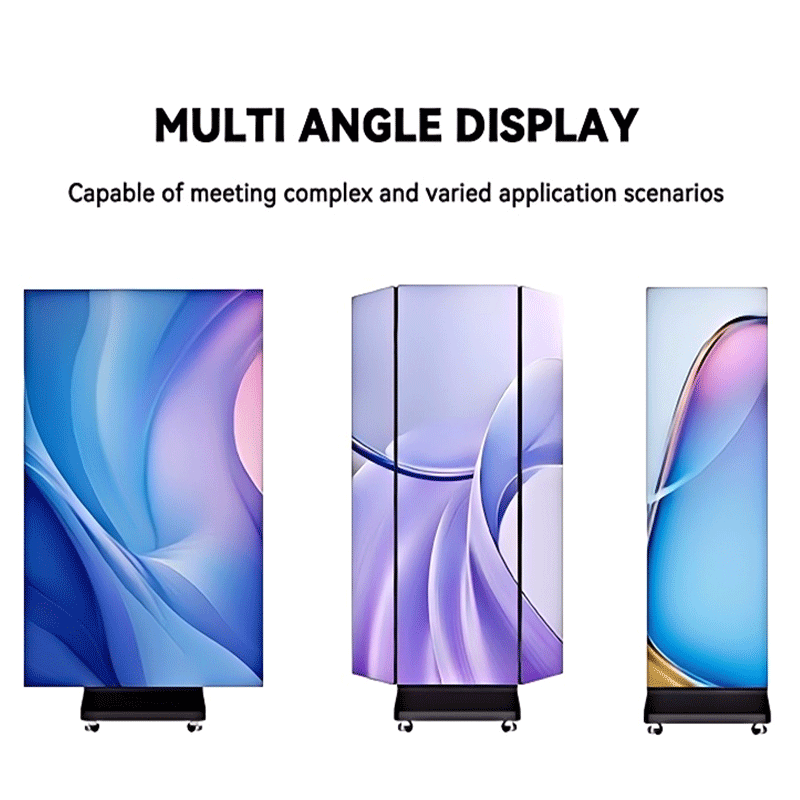

P1.53 Tri-fold (Double-sided) LED Poster Screen

The P1.53 Tri-fold Double-sided LED Poster Screen is a foldable presentation solution built for exhibitions, trade shows and corporate environments. Combining vivid LED illumination with a practical tri-fold structure, it delivers strong visual impact together with easy transport and quick deployment.
With an exclusive "one screen, two displays" design, the P1.53 unfolds into a large 1280*1920mm LED screen and folds into a compact double-sided 640*1920mm poster display. The 78kg ultra-light body uses a 50mm ultra-thin aircraft aluminum frame, moves on 4 swivel wheels and is ready to use once powered on, with no professional installation required.

Key Features
  • Exclusive tri-fold double-sided design: unfolds into a large 1280*1920mm screen and folds into a compact 640*1920mm double-sided display
  • Tile-grade GOB process: scratch-proof, anti-drop, splash-proof and moisture-proof
  • One-click content publishing via mobile APP, USB drive, Ethernet, WiFi and optional 4G remote
  • Supports synchronous and asynchronous modes for posters, videos, conference PPT and live streaming
  • Quick-lock design enables seamless splicing of multiple units into one large screen
  • 78kg ultra-light body with 50mm ultra-thin aircraft aluminum frame and good heat dissipation
  • 4 swivel wheels and ready-to-use design: no professional installation, plug and play
  • High brightness, high color reproduction, high contrast and HD display quality
  • Patent product with private mold design and exclusive technology
Technical Specifications
ItemP1.53
Pixel Pitch1.538mm
Pixel ConstructionSMD 3-in-1 LED
Module Resolution204*104 dots
Module Size320*160mm
Protective TechnologyGOB (water-resistant, dust-proof and impact-resistant surface)
Module Weight0.55kg
Module Composition4 (W) * 12 (H) pcs
Single-sided Resolution832*1248 px
Double-sided Resolution416*1248 px
Single-sided Display Size1280*1920mm (after unfolding)
Double-sided Display Size640*1920mm (after folding)
Single-sided Appearance Size1280*2070*50mm (after unfolding)
Double-sided Appearance Size640*2070*110mm (after folding)
Gross Weight78kg
Optical Parameters
ItemP1.53
Flatness Tolerance0.5mm
White Balanced Brightness700CD
Gray Scale14-16 bit adjustable
Color Temperature3200-9000K adjustable
Best Viewing Distance3-20m
Viewing Angle (H/V)160° / 160°
Luminous Point Deviation≤3%
Luminance Uniformity≥95%
Chromaticity Uniformity±0.003 Cx, Cy
Contrast Ratio8000:1
Power, Communication & Performance
ItemP1.53
Power Supply100-240V (50Hz/60Hz)
Peak Power Consumption1200W
Average Power Consumption400W
Synchronous/AsynchronousSupported
Communication MethodsUSB flash drive, Ethernet, WiFi, 4G remote
Communication InterfacesRS485*1, WiFi*1, USB*1, HDMI*2
Built-in SpeakerSupported
Audio Interface3.5mm audio, supports external amplifier
Drive ModeConstant current drive
Frame Frequency60Hz
Refresh Rate≥3840Hz
Lifespan100,000 hours
Working Temperature-40°C to 50°C
Working Humidity10-80% RH
Storage Temperature-50°C to 50°C
Storage Humidity10-85% RH
Applications
  • Exhibitions and trade show booths
  • Company receptions and lobbies
  • Retail stores and clothing boutiques
  • Restaurants and cafes
  • Conference rooms and stages
  • Schools and educational institutions
