Tile Grade GOB LED Poster Display Foldable SMD 3 In 1 Pixel
Tile Grade GOB LED Poster Display Foldable SMD 3 In 1 Pixel
Tile Grade GOB LED Poster Display Foldable SMD 3 In 1 Pixel
Tile Grade GOB LED Poster Display Foldable SMD 3 In 1 Pixel
Tile Grade GOB LED Poster Display Foldable SMD 3 In 1 Pixel
Tile Grade GOB LED Poster Display Foldable SMD 3 In 1 Pixel
Tile Grade GOB LED Poster Display Foldable SMD 3 In 1 Pixel
Tile Grade GOB LED Poster Display Foldable SMD 3 In 1 Pixel
Tile Grade GOB LED Poster Display Foldable SMD 3 In 1 Pixel
Tile Grade GOB LED Poster Display Foldable SMD 3 In 1 Pixel
Tile Grade GOB LED Poster Display Foldable SMD 3 In 1 Pixel
Tile Grade GOB LED Poster Display Foldable SMD 3 In 1 Pixel
Specifications
Model Number :
P1.25/P1.53/P1.86/P2.5
MOQ :
1unit
Pixel Configuration :
SMD 3-in-1
Power Supply :
110-240V AC
Working Temperature :
-40°C to 50°C
Module Weight :
0.55kg
Gross Weight :
43kg
Refresh Rate :
≥3840Hz
Working Humidity :
10-80% RH, no condensation
Certification :
CE,FCC,RoHS,UL,ETL,KC,PSE
Viewing Angle :
160° (H) / 160° (V)
Application :
Reception, Exhibition, Retail, Restaurant, School, Meeting Room, Stage
Place of Origin :
Shenzhen China
White Balance Brightness :
650 cd/m²
Display Size :
640×1920mm
Color Temperature :
3200-9000K adjustable
Best Viewing Distance :
1.5-20m
Brand Name :
Colorsvisionled
Average Power Consumption :
145-220W (by model)
Delivery Time :
7~15days
Module Size :
320×160mm
Packaging Details :
Flight case with anti-static foam, export-grade packing
Pixel Pitch :
1.25mm / 1.538mm / 1.86mm / 2.5mm
Peak Power Consumption :
430-650W (by model)
Module Composition :
2 (W) × 12 (H)
Contrast Ratio :
8000:1
Overall Dimension :
646×2050×38mm
Gray Scale :
16 bit adjustable
Synchronous/Asynchronous :
Both supported
Built-in Speaker :
50×12mm × 2 pcs
Typical Lifespan :
50000 hours
Protective Technology :
Tile-grade GOB
Communication :
WiFi, USB, Ethernet, RS485, HDMI×2, 4G optional
Description

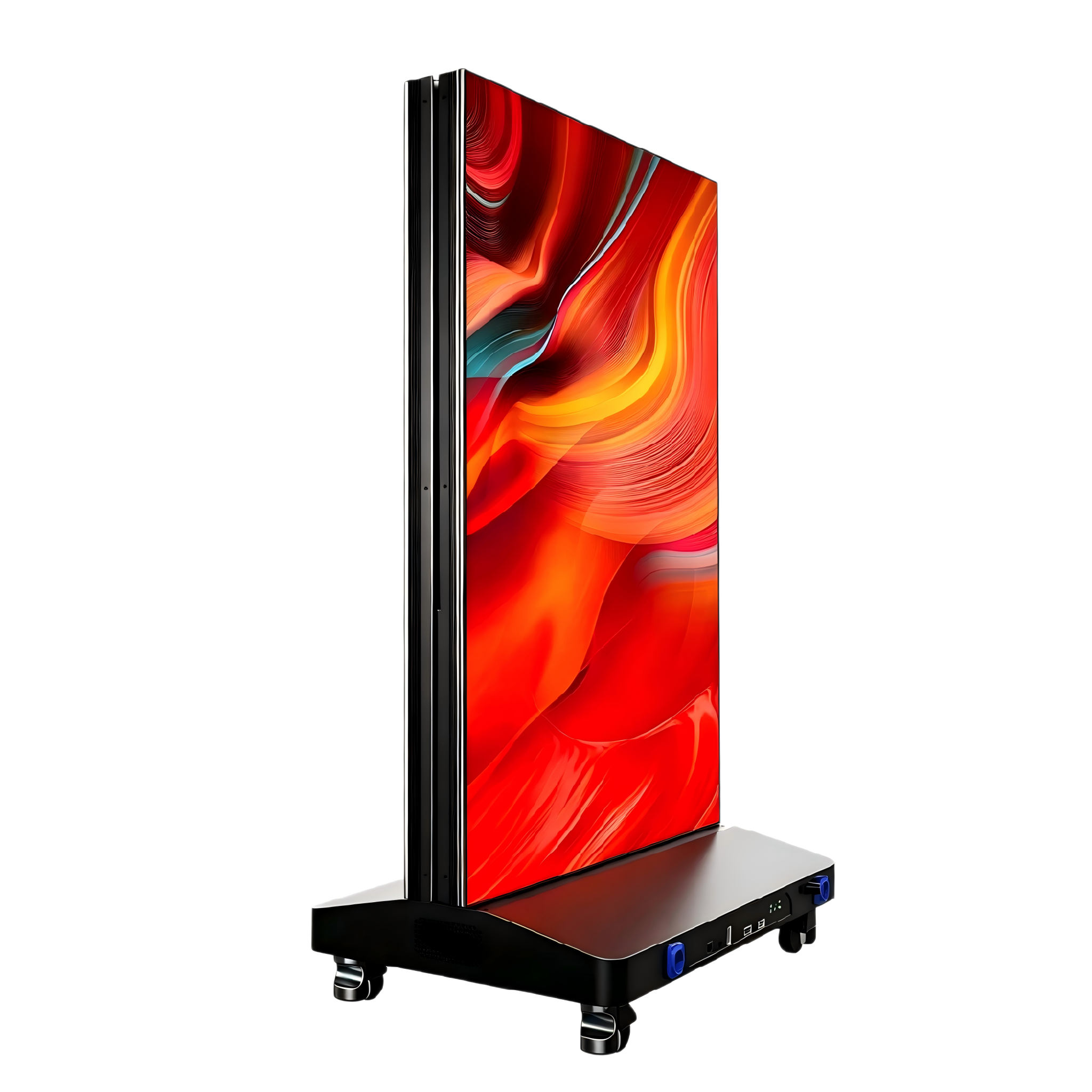

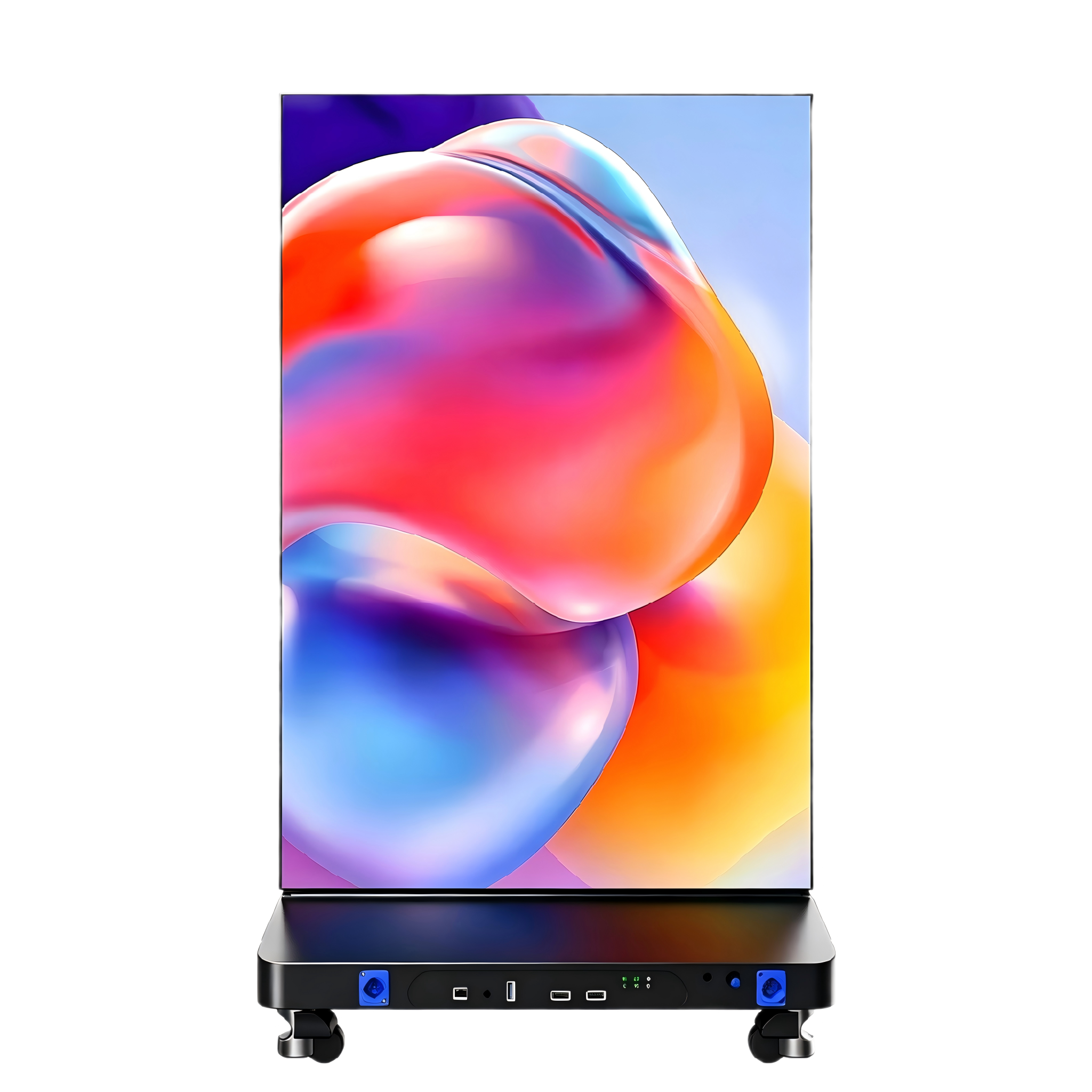

Foldable LED Electronic Poster Screen

This foldable LED electronic poster screen combines a 640*1920mm high-definition display with an exclusive tile-grade GOB process, delivering superb brightness, contrast and color reproduction. The ultra-thin aviation-aluminum body folds into a compact size for easy storage and cost-saving transportation, while four swivel wheels let you move and set it up anywhere without installation - simply plug in and play.

Key Features
  • Tile-grade GOB process: scratch-resistant, drop-proof, splash-proof and moisture-proof for stable long-term operation
  • Foldable design: compact size, easy storage and convenient transportation, greatly reducing international shipping costs
  • Ultra-thin 38mm aviation-aluminum body with excellent heat dissipation, gross weight only 43kg
  • 4 swivel wheels built in: no professional installation needed, ready to use once powered on
  • APP one-click wireless publishing: upload content via APP, USB drive, WiFi, Ethernet port or optional 4G in seconds
  • Quick-lock design: beginners can easily operate and seamlessly splice multiple units into one large screen
  • Supports synchronous and asynchronous modes: for digital posters, promotional videos, conference PPT and live-stream backgrounds
  • Optional energy-storage (battery) version: safe LiFePO4 battery, 3000+ charge cycles, long endurance
  • Private-mold design with premium finish; finished-product delivery with plug-and-play experience
Technical Specifications (4 Models)
ItemP2.5P1.86P1.53P1.25
Pixel Pitch2.5mm1.86mm1.538mm1.25mm
Pixel ConfigurationSMD 3-in-1SMD 3-in-1SMD 3-in-1SMD 3-in-1
Module Resolution128 * 64 dots172 * 86 dots204 * 104 dots256 * 128 dots
Module Size320 * 160mm320 * 160mm320 * 160mm320 * 160mm
Protective TechnologyTile-grade GOBTile-grade GOBTile-grade GOBTile-grade GOB
Module Weight0.55kg0.55kg0.55kg0.55kg
Module Composition (W*H)2 * 122 * 122 * 122 * 12
Overall Resolution (W*H)256 * 768 px344 * 1032 px416 * 1248 px512 * 1536 px
Display Size640 * 1920mm640 * 1920mm640 * 1920mm640 * 1920mm
Overall Dimension646 * 2050 * 38mm646 * 2050 * 38mm646 * 2050 * 38mm646 * 2050 * 38mm
Gross Weight43kg43kg43kg43kg
Flatness Tolerance0.5mm0.5mm0.5mm0.5mm
Peak Power Consumption430W450W550W650W
Average Power Consumption145W150W185W220W
Optical Parameters
White Balance Brightness650 cd/m²~800 cd/m²
Gray Scale16 bit adjustable
Color Temperature3200-9000K adjustable
Contrast Ratio8000:1
Best Viewing Distance1.5-20m
Viewing Angle (Horizontal)160°
Viewing Angle (Vertical)160°
Luminance Uniformity≥ 95%
Chromaticity UniformityWithin ±0.003 Cx, Cy
Tolerance of Center-to-Center Distance of Luminous Point≤ 3%
Power, Communication & Performance
Power Supply110-240V AC
Peak Power Consumption430W / 450W / 550W / 650W (by model)
Average Power Consumption145W / 150W / 185W / 220W (by model)
Synchronous / AsynchronousBoth supported
Communication MethodsAPP wireless, USB drive, Ethernet port, WiFi, 4G remote (optional)
Communication InterfacesRS485 *1, WiFi *1, USB *1, HDMI *2
Built-in SpeakerYes, 50 * 12mm * 2 pcs
Audio Interface3.5mm audio, supports external amplifier
Drive ModeConstant current drive
Frame Frequency60Hz
Refresh Rate≥ 3840Hz
Typical Lifespan100,000 hours
Working Temperature Range-40°C to 50°C
Working Humidity Range10-90% RH, no condensation
Storage Temperature Range-50°C to 60°C
Storage Humidity Range10-90% RH, no condensation
Product Size
  • Folding model (plug-in): 646 (W) * 2050 (H) * 38 (D) mm
  • Integrated model: 646 (W) * 1090 (H) * 90 (D) mm
  • Display area: 640 * 1920mm | Gross weight: 43kg
Applications
  • Company reception and front desks
  • Exhibition booths and trade shows
  • Retail and clothing stores
  • Restaurants and cafes
  • Schools and campuses
  • Conference rooms and meeting halls
  • Stage backgrounds and live events
