P8 Large Format Outdoor Fixed LED Screen 960x960mm Common Cathode
P8 Large Format Outdoor Fixed LED Screen 960x960mm Common Cathode
P8 Large Format Outdoor Fixed LED Screen 960x960mm Common Cathode
P8 Large Format Outdoor Fixed LED Screen 960x960mm Common Cathode
P8 Large Format Outdoor Fixed LED Screen 960x960mm Common Cathode
P8 Large Format Outdoor Fixed LED Screen 960x960mm Common Cathode
P8 Large Format Outdoor Fixed LED Screen 960x960mm Common Cathode
P8 Large Format Outdoor Fixed LED Screen 960x960mm Common Cathode
P8 Large Format Outdoor Fixed LED Screen 960x960mm Common Cathode
P8 Large Format Outdoor Fixed LED Screen 960x960mm Common Cathode
P8 Large Format Outdoor Fixed LED Screen 960x960mm Common Cathode
P8 Large Format Outdoor Fixed LED Screen 960x960mm Common Cathode
P8 Large Format Outdoor Fixed LED Screen 960x960mm Common Cathode
P8 Large Format Outdoor Fixed LED Screen 960x960mm Common Cathode
Specifications
Technology :
Common Cathode (Energy Saving)
MOQ :
1 Square Meter
IP Rating :
IP65
Cabinet Material :
Steel / Aluminum Cabinet
Model Number :
P8
Packaging Details :
Flight case with anti-static foam, export-grade packing
Control System :
Novastar / Colorlight
Certification :
CE, FCC, RoHS, UL, ETL, KC, PSE
Cabinet Size :
960x960x77mm
Warranty :
2 Years
Brightness :
Up to 6500 cd/m2
Pixel Pitch :
8mm
Place of Origin :
Shenzhen, China
Viewing Angle :
140 degree Horizontal / 140 degree Vertical
Application :
Outdoor Fixed Installation
Brand Name :
Colorsvisionled
Cabinet Weight :
25kg
Installation :
Wall Mounted / Pole Mounted
Delivery Time :
7-15 working days after deposit
Refresh Rate :
Over 3840 Hz
Description
P8 Energy Saving Common Cathode Outdoor Fixed LED Display Screen

The P8 energy saving outdoor fixed LED display is designed for big screens seen from a distance. An 8mm pitch lowers the cost per square meter, and the common cathode drive keeps average power near 220W/m², making long facade walls and highway billboards economical to run.

Advantages
  • 8mm pixel pitch is engineered for large screens viewed from ten meters or more
  • Fewer pixels per square meter lower the total project cost for big walls
  • Common cathode drive cuts average power to around 220W/m²
  • High brightness above 6500 cd/m² keeps messages visible in open daylight
  • Lightweight 25kg cabinets speed up installation on tall steel structures

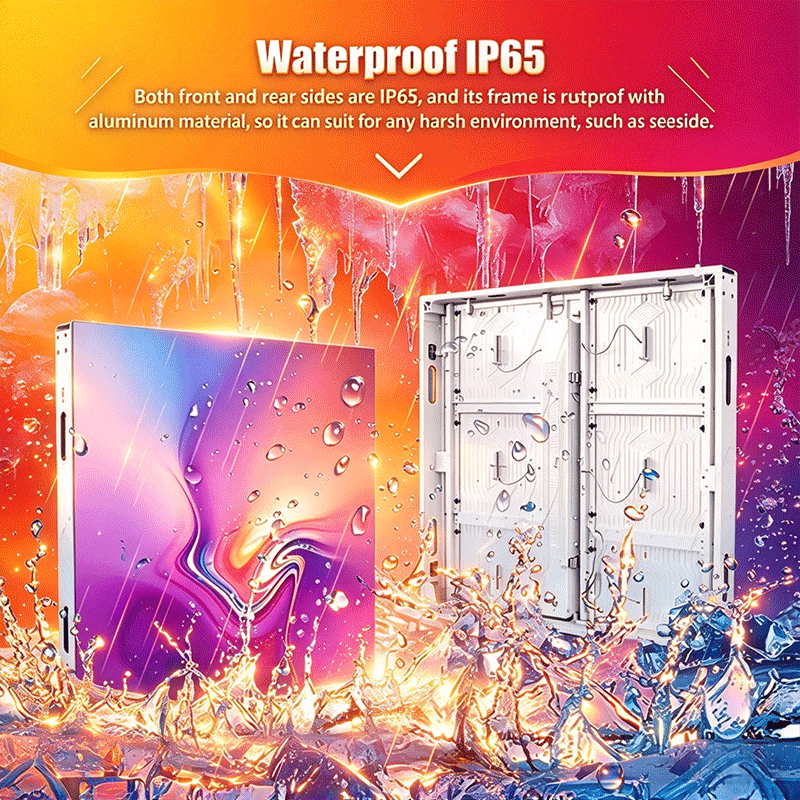

  • IP65 protection defends the modules against harsh weather all year round
  • Wide 140 degree angle lets crowds read the screen from the side
  • Supports huge seamless splicing for building-scale advertising
Specification Sheet
Model P8
Pixel Pitch 8mm
LED Configuration SMD2727
Pixel Density 15625 dot/m²
Module Size 480*320mm
Module Resolution 60*40 dot
Cabinet Size 960*960*77mm
Cabinet Resolution 120*120 dot
Cabinet Weight 25kg
IP Rating (front/back) IP65
Brightness Intensity >6500 CD/m²
Viewing Angle (H/V) 140°/140°
Best View Distance >10m
Grey Scale 14bit
Max. Power Consumption 650W/m²
Ave. Power Consumption 220W/m²
Drive Mode 1/4S
Refresh Frequency ≥3840HZ
Operating Life 100,000 hours
Typical Installations
  • Building-scale outdoor advertising walls
  • Highway and roadside long distance billboards
  • Stadium and arena big screen displays
  • Urban landmark and skyline media facades
  • Large parking lot and plaza information screens
Company Strength

Colorsvisionled has completed thousands of outdoor engineering projects and ships to over 100 countries with a full international certification set.

The P8 series uses export-grade flight case packing with anti-static foam, protecting every cabinet during long sea transport.

Send us the screen width, height and target viewing distance, and we will size a P8 video wall and quote it for you quickly.
