Common Cathode Outdoor Fixed LED Screen IP65 Waterproof
Common Cathode Outdoor Fixed LED Screen IP65 Waterproof
Common Cathode Outdoor Fixed LED Screen IP65 Waterproof
Common Cathode Outdoor Fixed LED Screen IP65 Waterproof
Common Cathode Outdoor Fixed LED Screen IP65 Waterproof
Common Cathode Outdoor Fixed LED Screen IP65 Waterproof
Common Cathode Outdoor Fixed LED Screen IP65 Waterproof
Common Cathode Outdoor Fixed LED Screen IP65 Waterproof
Common Cathode Outdoor Fixed LED Screen IP65 Waterproof
Common Cathode Outdoor Fixed LED Screen IP65 Waterproof
Common Cathode Outdoor Fixed LED Screen IP65 Waterproof
Common Cathode Outdoor Fixed LED Screen IP65 Waterproof
Common Cathode Outdoor Fixed LED Screen IP65 Waterproof
Common Cathode Outdoor Fixed LED Screen IP65 Waterproof
Common Cathode Outdoor Fixed LED Screen IP65 Waterproof
Common Cathode Outdoor Fixed LED Screen IP65 Waterproof
Common Cathode Outdoor Fixed LED Screen IP65 Waterproof
Common Cathode Outdoor Fixed LED Screen IP65 Waterproof
Common Cathode Outdoor Fixed LED Screen IP65 Waterproof
Common Cathode Outdoor Fixed LED Screen IP65 Waterproof
Common Cathode Outdoor Fixed LED Screen IP65 Waterproof
Common Cathode Outdoor Fixed LED Screen IP65 Waterproof
Specifications
Place of Origin :
Shenzhen China
Technology :
Common Cathode (Energy Saving)
Certification :
CE,FCC,RoHS,UL,ETL,KC,PSE
Packaging Details :
Flight case with anti-static foam, export-grade packing
Viewing Angle :
140 degree Horizontal / 120 degree Vertical
Brightness :
Up to 6500 cd/m2
Installation :
Wall Mounted / Pole Mounted
Contrast Ratio :
High Contrast
Warranty :
2 Years
Model Number :
P4.44/P5.7/P6.66/P8/P10
Application :
Outdoor Fixed Installation
Pixel Pitch :
P4.44 / P5.7 / P6.6 / P8 / P10 (Customizable)
MOQ :
1unit
Delivery Time :
7~15days
Waterproof Rating :
IP65
Brand Name :
Colorsvisionled
Refresh Rate :
Over 3840 Hz
Cabinet Material :
Steel / Aluminum Cabinet
Control System :
Novastar / Colorlight
Description
Common Cathode Outdoor Fixed LED Display Screen

A common cathode outdoor fixed LED display screen engineered for permanent outdoor installation. Using advanced common cathode LED technology, it delivers high definition and high contrast image quality with low power consumption, and is designed for long-term stable operation under harsh outdoor conditions. Size, shape, resolution and display content can all be customized.

Key Features
  • Common cathode technology for low power consumption and energy saving
  • High definition and high contrast for clear text and vivid, rich colors
  • Stable and reliable design for long-term operation in harsh environments
  • Strong customization of size, shape, resolution and display content
  • Low maintenance cost with long-life LED lamps and low energy consumption
  • IP65 waterproof protection for outdoor fixed installation
  • High brightness up to 6500 cd/m2, clearly readable in direct sunlight
  • Wide applications for advertising and information display
Specifications
Item P4.44 P5.7 P6.66 P8 P10
Pixel Pitch 4.44mm 5.7mm 6.66mm 8mm 10mm
LED Configuration SMD1921 SMD2727 SMD2727 SMD2727 SMD2727
Pixel Density 50635 dot/m² 30625 dot/m² 22500 dot/m² 15625 dot/m² 10000 dot/m²
Module Size 480*320mm 480*320mm 480*320mm 480*320mm 480*320mm
Module Resolution 108*72 dot 84*56 dot 72*48 dot 60*40 dot 48*32 dot

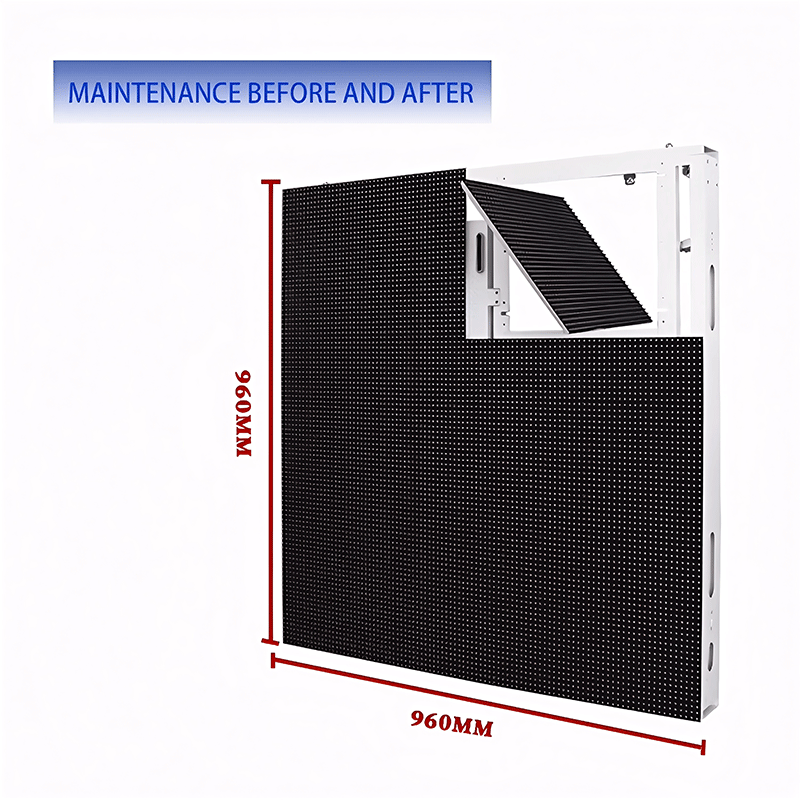

Cabinet Size 960*960*77mm 960*960*77mm 960*960*77mm 960*960*77mm 960*960*77mm
Cabinet Resolution 216*216 dot 168*168 dot 144*144 dot 120*120 dot 96*96 dot
Cabinet Weight 25kg 25kg 25kg 25kg 25kg
IP Rating (front/back) IP65 IP65 IP65 IP65 IP65
Brightness Intensity >6000 CD/m² >6500 CD/m² >6500 CD/m² >6500 CD/m² >6500 CD/m²
Viewing Angle (H/V) 140°/140° 140°/140° 140°/140° 140°/140° 140°/140°
View Distance >5m >7m >8m >10m >12m
Gray Scale 14bit 14bit 14bit 14bit 14bit
Display Scale 16.7M 16.7M 16.7M 16.7M 16.7M
Brightness Adjustment 0-100 levels adjustable 0-100 levels adjustable 0-100 levels adjustable 0-100 levels adjustable 0-100 levels adjustable
Max. Power Consumption 650W/m² 650W/m² 680W/m² 650W/m² 650W/m²
Ave. Power Consumption 220W/m² 220W/m² 240W/m² 220W/m² 220W/m²
Drive Mode 1/9S 1/7S 1/6S 1/4S 1/2S
Refresh Frequency ≥3840HZ ≥3840HZ ≥3840HZ ≥3840HZ ≥3840HZ
Environmental OUTDOOR OUTDOOR OUTDOOR OUTDOOR OUTDOOR
Operation Power AC100~240V 50/60HZ AC100~240V 50/60HZ AC100~240V 50/60HZ AC100~240V 50/60HZ AC100~240V 50/60HZ
Operating Temperature -20°C~+50°C -20°C~+50°C -20°C~+50°C -20°C~+50°C -20°C~+50°C
Operating Humidity 10~95% RH 10~95% RH 10~95% RH 10~95% RH 10~95% RH
Operating Life 100,000 hours 100,000 hours 100,000 hours 100,000 hours 100,000 hours
Applications
  • City streets and commercial centers
  • Shopping malls and supermarkets
  • Airports, railway stations, subway stations and bus stations
  • Sports venues and stadiums
  • Conference centers, exhibition halls and museums
Why Choose Us

As a professional LED display manufacturer with thousands of successful engineering projects, we provide reliable outdoor fixed LED display solutions with strict quality control, customized design and one-stop service.

Contact us today to get a customized common cathode outdoor fixed LED display solution for your project.
