Specifications
Brand Name :
FEIXIANG
Model Number :
Trapezoidal Ibr Steel Metal Roofing Tile Cold Roll Making Machine
Certification :
CE ISO,
Place of Origin :
China
MOQ :
1 sets
Price :
Pls consult with Supplier
Supply Ability :
20 SETS/MONTH
Delivery Time :
45 working days
Packaging Details :
40'GP
Normal thickness :
0.3-0.6mm
Type :
Trapezoidal Ibr Steel Roofing Tile Cold Roll Making Machine
Control :
Delta Siemens
Voltage :
380V/220 /440 50HZ,3PH
Warrantee :
1 year
Service :
can arrange engineer installing
Description

Trapezoidal Ibr Steel Metal Roofing Tile Cold Roll Making Machine

1. Product Description

Machine Feature:

1. Precise forming

2. High-solid forming stand guarantees the goods and uniform high quality of final productd

3. The operation automatically minimizes the tolerance of cutting length

Products Feature:

1. A stylish and attractive design, giving the apperance of a traditional roof tile.

2. Resistant to frost, heat,hail and gales; 100% waterproof, due to the lateral run-off channel on each sheet for several models.

3.The raw material can be in different color, with elegant and noble looking. It is widely used as the garden like factory, hotel, exhibition, villa,civil construction etc.

2. Machine details

Machine consist of uncoiler and its base, coil sheet guiding equipment, roll forming system, post cutting equipment, pressing equipment, post-cutting system,hydraulic station, controlling system, supporter table.

3. Machine composition

No. Name Unit Qty
1 Decoiler set 1
2 Main Machine for roll forming set 1
3 Control System(PLC) set 1
4. Hydraulic oil pump set 1
5. Product stand set 1

Decoiler have manual decoiler,Electric decoiler and Hydraulic decoiler,can booking as request

4. Main parameters

1 Feeding width 1000-1250mm
2 Thickness of Raw material 0.3mm-0.6mm PPGI,GI
3 Roller station 11stations
4 Shaft Diameter 70mm
5 Productivity 8-12m/min
6 Rollers' material 45# steel
7 Shaft material 45# steel
8 Weight 4 tons
9 length 6m
10 Voltage 380V 50Hz 3phases
11 Control system PLC control system
12 Decoiler weight capacity 5 Tons
13 Main Motor 3KW
14 Driving way Chain transmission
15 Chain size 1.2 inch
16 Cutting system Hydraulic Automatic hydraulic cutter+Front cutter to reduce raw material waste

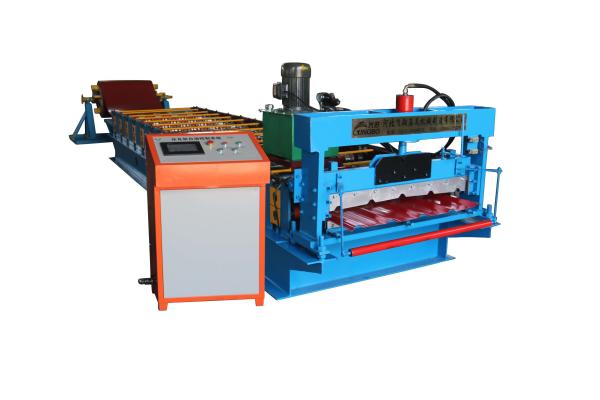

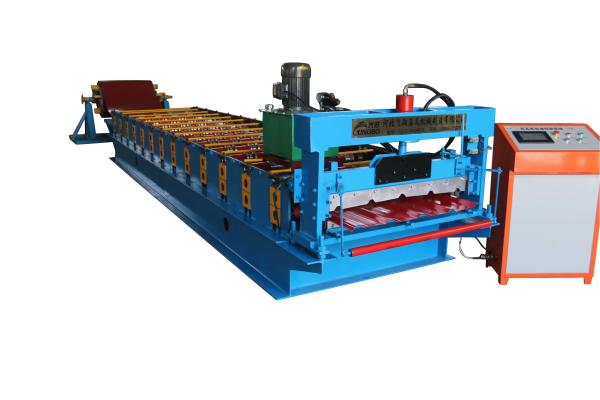

5. Machine Photo

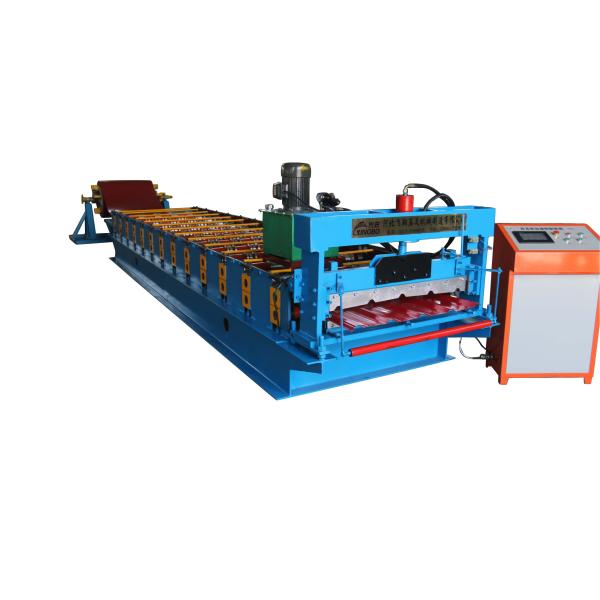

High Frequency IBR Sheet Roll Forming Machine , Steel Metal Roof Tile Making Machine

High Frequency IBR Sheet Roll Forming Machine , Steel Metal Roof Tile Making Machine
