840 IBR Making Machine / Colour Coated Roofing Sheets Machinery For Roof Panel Material
840 IBR Making Machine / Colour Coated Roofing Sheets Machinery For Roof Panel Material
840 IBR Making Machine / Colour Coated Roofing Sheets Machinery For Roof Panel Material
840 IBR Making Machine / Colour Coated Roofing Sheets Machinery For Roof Panel Material
Specifications
Brand Name :
FEIXIANG
Model Number :
840
Certification :
CE ISO,
Place of Origin :
China
MOQ :
1 sets
Supply Ability :
20 SETS/MONTH
Delivery Time :
45 working days
Packaging Details :
40'GP
Price :
Pls consult with supplier
Normal thickness :
0.3-0.6mm
Type :
roofing sheet roll forming machine
Control :
Automatic control system
Voltage :
380V/220 /440 50HZ,3PH
Warrantee :
1 year
use for :
Roofing
Service :
engineer installing
Description

840 IBR Making Machine / Colour Coated Roofing Sheets Machinery For Roof Panel Material

1. Product Description

Roofing Sheet Metal Roof Panel Trapezoidal Roll Forming Machine isby the uncoiling,feeding, leveling,roll forming,shearing, production, Production of color plate appearance of smooth beautiful paint pattern uniform, high strength, durable, widely used in industrial and civil buildings, such as factories, warehouses, stadiums, exhibition halls, theaters and other room surfaces and walls.

2. Machine details

Brand: Feixiang
Model number: FX840
Voltage requirement: 380v50HZ,3PH
Working speed:8-10/min

3. Machine composition

No. Name Unit Qty
1 Decoiler set 1
2 Main Machine for roll forming set 1
3 Control System(PLC) set 1
4. Hydraulic oil pump set 1
5. Product stand set 1

4. Main parameters

Model number Roofing Sheet Metal Roof Panel Trapezoidal Roll Forming Machine
Rolled material 0.3-0.6mm thickness, aluminum sheet, galvanized sheet, colored steel sheet and various steel plates
Effective width 840mm
Feeding width 1000mm
Forming steps 9 stations
Roller 45# forged steel, hard chrome plating within 0.05mm
Diameter of shaft 70mm
Main motor power 5.5 kw
Pump power 3 kw
Sprocket chain 1 inch
Drive type by chain
Cutting Blade Cr12, heat treatment 60-62°C
Frequency Converter It has the advantage of slowing down before cutting, to ensure the length accuracy (±1mm, far better than industrial standard ±3mm).
component 1 set of manual decoiler,1 set of main roll forming machine,1 set of computer control cabinet,1 set of hydraulic System,1 set of cutting mechanism,1 set of counter,1 set of output table
Payment terms cash,T/T,L/C.
Delivery time 40 working days

5. package and shipping

The machine naked in the container or packing as your required.
Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.
Delivery: within 45 working days after receipt of deposit
Guarantee: One year, and we will provide the technical support for the whole life.

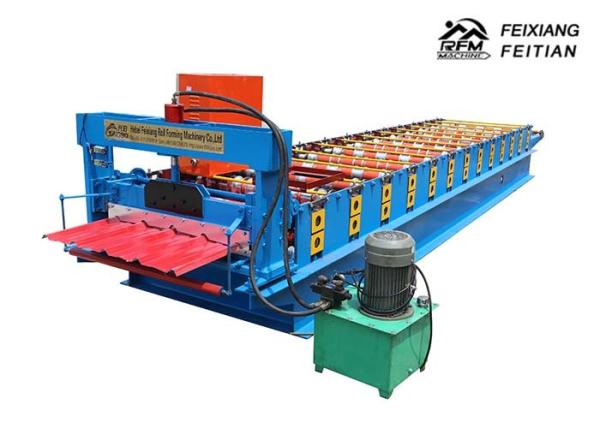

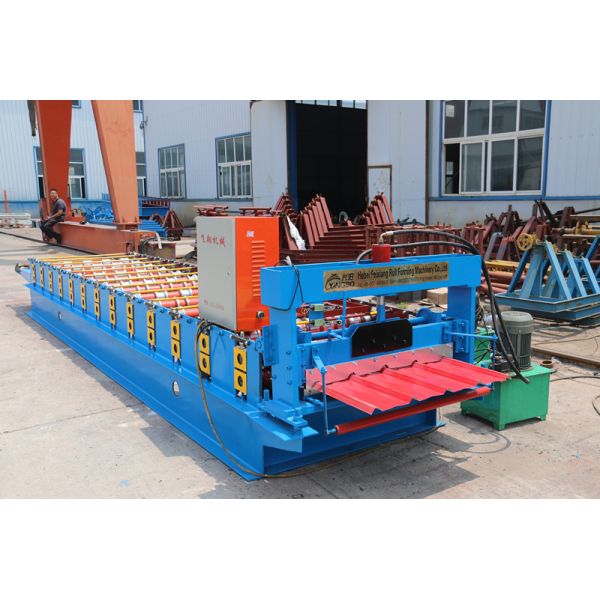

6. Machine Photo

840 IBR Making Machine / Colour Coated Roofing Sheets Machinery For Roof Panel Material

840 IBR Making Machine / Colour Coated Roofing Sheets Machinery For Roof Panel Material
