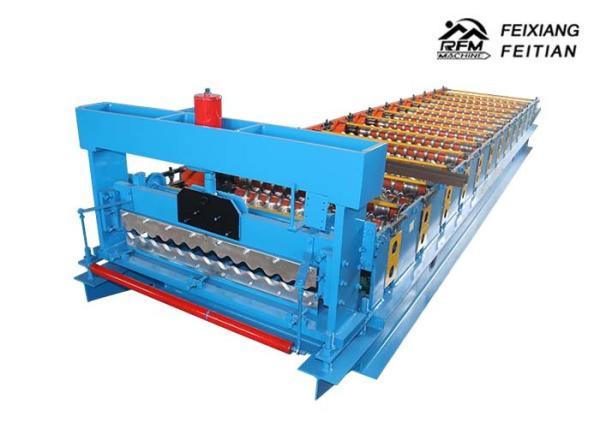

Professional Color Steel Roll Forming Machine 380V 50Hz 3 Phases For Floor Decking
Professional Color Steel Roll Forming Machine 380V 50Hz 3 Phases For Floor Decking
Professional Color Steel Roll Forming Machine 380V 50Hz 3 Phases For Floor Decking
Professional Color Steel Roll Forming Machine 380V 50Hz 3 Phases For Floor Decking
Specifications
Brand Name :
FEIXIANG
Model Number :
corrugated wave forming machine
Certification :
CE ISO,
Place of Origin :
China
MOQ :
1 sets
Supply Ability :
20 SETS/MONTH
Delivery Time :
45 working days
Packaging Details :
40'GP
Price :
Price pls consult with Engineer
Normal thickness :
0.3-0.6mm
Type :
corrugated sheet roll forming machine
Control :
Delta Siemens
Voltage :
380V/220 /440 50HZ,3PH
Warrantee :
1 year
use for :
Roofing
Service :
Engineer installing
Description

Rollformers Corrugated Steel Sheet Metal Roof Sheet Forming Machine

1. Product Description

Colored Steel Sheet Roof Tile Corrugated Wave Panel Roll Forming Machine Roof Panel is composed by the following elements in the table. And for some of the elements you can change according to your needs. For the steel roll forming machine, take a random drawing profile for your reference.

2. Machine details

Brand: Feixiang
Model number: FXcorrugated waves
Voltage requirement: 380v50HZ,3PH
Working speed:8-10/min

3. Machine composition

No. Name Unit Qty
1 Decoiler set 1
2 Main Machine for roll forming set 1
3 Control System(PLC) set 1
4. Hydraulic oil pump set 1
5. Product stand set 1

4. Main parameters

1 Feeding width 1000-1250mm
2 Thickness of Raw material 0.3mm-0.6mm PPGI,GI
3 Roller station 11stations
4 Shaft Diameter 70mm
5 Productivity 8-12m/min
6 Rollers' material 45# steel
7 Shaft material 45# steel
8 Weight 4 tons
9 length 6m
10 Voltage 380V 50Hz 3 phases
11 Control system PLC control system
12 Decoiler weight capacity 5 Tons
13 Main Motor 3KW
14 Driving way Chain transmission
15 Chain size 1.2 inch
16 Cutting system Hydraulic Automatic hydraulic cutter+Front cutter to reduce raw material waste

5. package and shipping

The machine naked in the container or packing as your required.
Payment: 30% T/T in advance and balance 70% after inspection confirmation before shipment.
Delivery: within 45 working days after receipt of deposit
Guarantee: One year, and we will provide the technical support for the whole life.

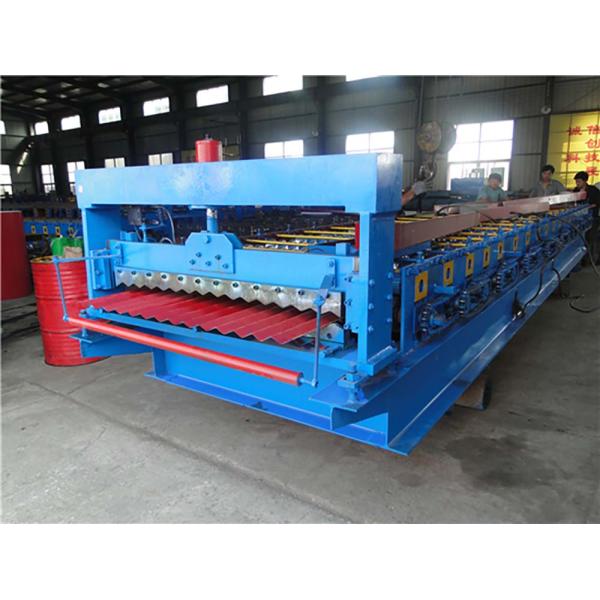

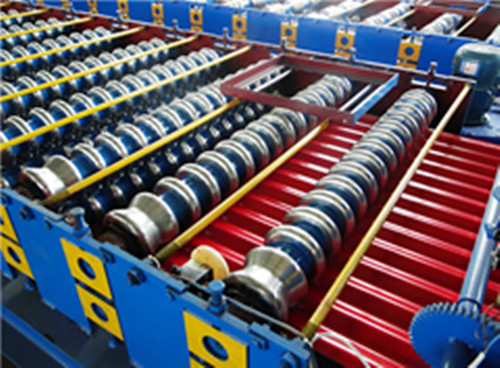

6 . Machine Photo

Professional Color Steel Roll Forming Machine 380V 50Hz 3 Phases For Floor Decking

Professional Color Steel Roll Forming Machine 380V 50Hz 3 Phases For Floor Decking
