All Weather Portable Photovoltaic Imaging Systems EL / PL
All Weather Portable Photovoltaic Imaging Systems EL / PL
All Weather Portable Photovoltaic Imaging Systems EL / PL
All Weather Portable Photovoltaic Imaging Systems EL / PL
All Weather Portable Photovoltaic Imaging Systems EL / PL
All Weather Portable Photovoltaic Imaging Systems EL / PL
Specifications
Brand Name :
CHNSpec
Model Number :
FS-EP-270 / 250 / 230
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
1000 per month
Delivery Time :
5-7days
Packaging Details :
carton box
Resolution :
2560×2048
Tablet :
11.2-inch Android tablet
Lens Type :
Near-infrared high-sensitivity lens
Weight :
Less than 1 kg
Description

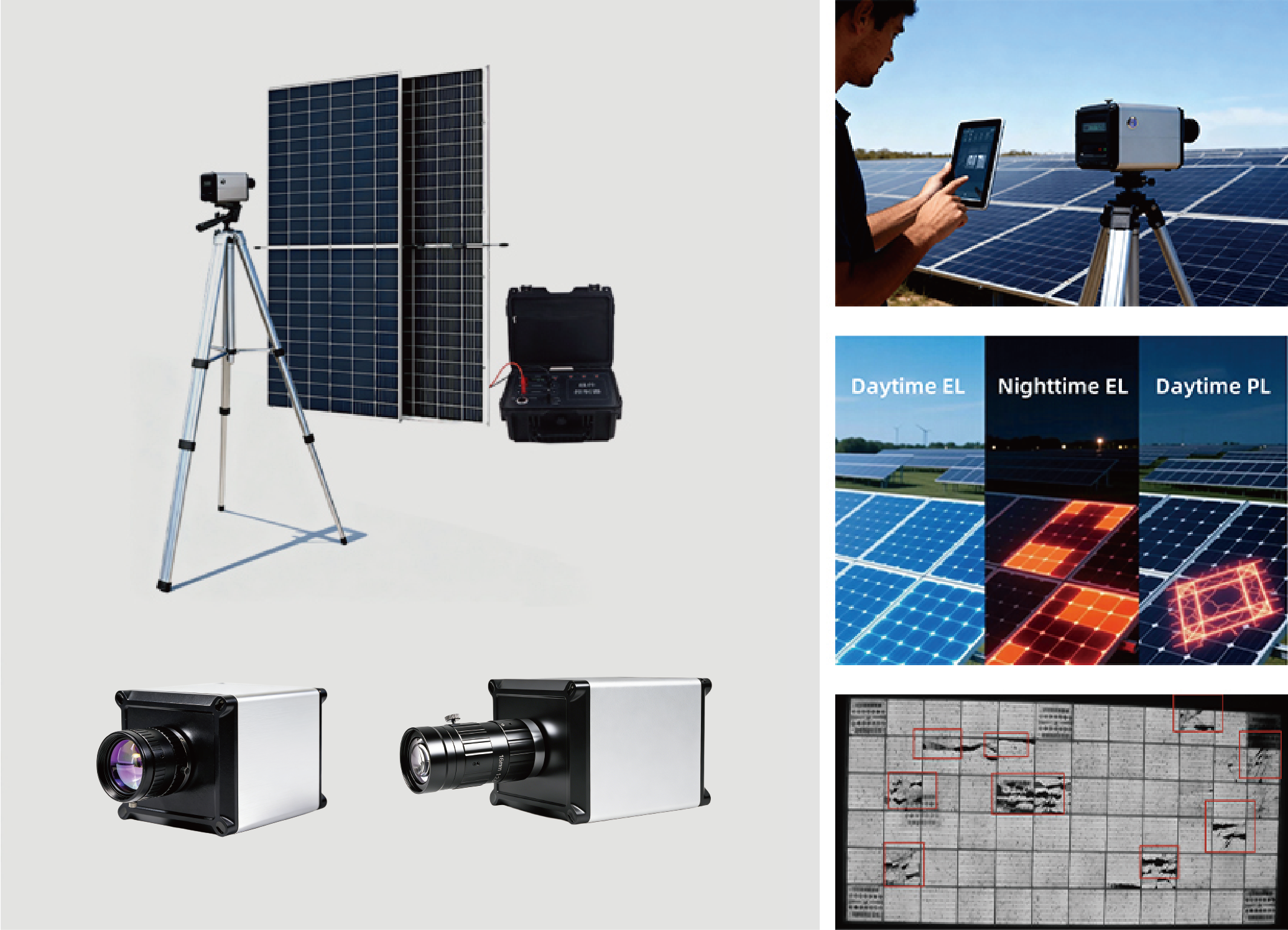

The FS-EP series is the latest generation of portable testing equipment launched by CHNSpec for EL/PL inspection in the photovoltaic industry, including the FS-EP-270 / 250 / 230 models.

  • Equipped with three core functions: daytime EL, daytime PL, and nighttime EL
  • Compatible with both module and string measurements
  • Can be tested during daytime, nighttime, and rainy or cloudy conditions, truly achieving “all-weather” operation
  • Adopts an advanced hyperspectral imaging system, providing richer and clearer detection details
  • Built-in artificial intelligence large-model algorithms for automatic identification of defects such as cracks, microcracks, broken grid lines, fragments, and short circuits
  • Jointly developed by Zhejiang University and China Jiliang University
  • Lightweight, compact, and easy to operate; all operations can be completed via a tablet computer

All Weather Portable Photovoltaic Imaging Systems EL / PL

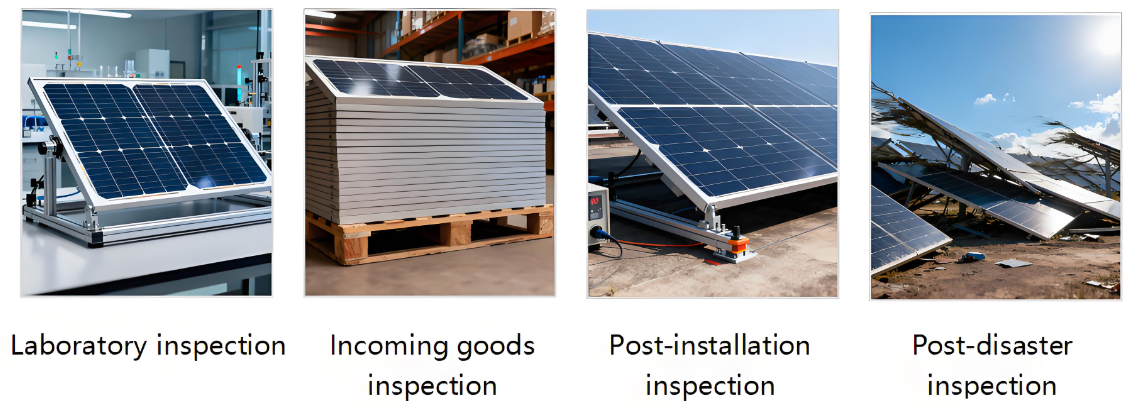

Application Fields

All Weather Portable Photovoltaic Imaging Systems EL / PL


Technical Parameters

Camera
Model FS-EP-230 FS-EP-250 FS-EP-270
Lens Type Near-infrared high-sensitivity lens
Dimensions 157mm×88.3mm×89.3mm
Weight Less than 1 kg
Pixels 1.3 million pixels 3 million pixels 5 million pixels
Resolution 1296×1032 2080×1544 2560×2048
Detection Modes Nighttime EL / Daytime EL / Daytime PL
Shutter Time Nighttime EL: 15–100000us; Daytime EL and Daytime PL: 10–20000us
Operating Environment Sunlight, moonlight, starlight, and artificial light do not affect testing; all-weather adaptability
Tablet 11.2-inch Android tablet
Software
Functions Automatic exposure, manual exposure, overexposure warning, histogram function, adjustable main unit parameters; manual annotation and AI-based defect classification; export of original images and annotated images; map display of project address with GPS positioning
Records Module barcodes can be entered by scanning or manual input
WiFi Module The lens can connect directly to the camera WiFi, with no need to configure third-party WiFi modules
Optional
Accessories		 Tripod, gimbal, cables, tablet computer, string controller, module controller, module power supply, string power supply, lenses with multiple fields of view and focal lengths, explosion-proof case
