Airborne PV Imaging Systems EL / PL Detector
Airborne PV Imaging Systems EL / PL Detector
Airborne PV Imaging Systems EL / PL Detector
Airborne PV Imaging Systems EL / PL Detector
Specifications
Brand Name :
CHNSpec
Model Number :
EP-DU/EP-NU Series
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
negotiable
Payment Terms :
T/T
Supply Ability :
1000 per month
Delivery Time :
5-7days
Packaging Details :
carton box
Inspection Mode :
UAV-mounted inspection
Operating Temperature :
-10～50℃
Field of View :
39.1°x 29.8°
Operation Interface :
Chinese / (English optional)
Description

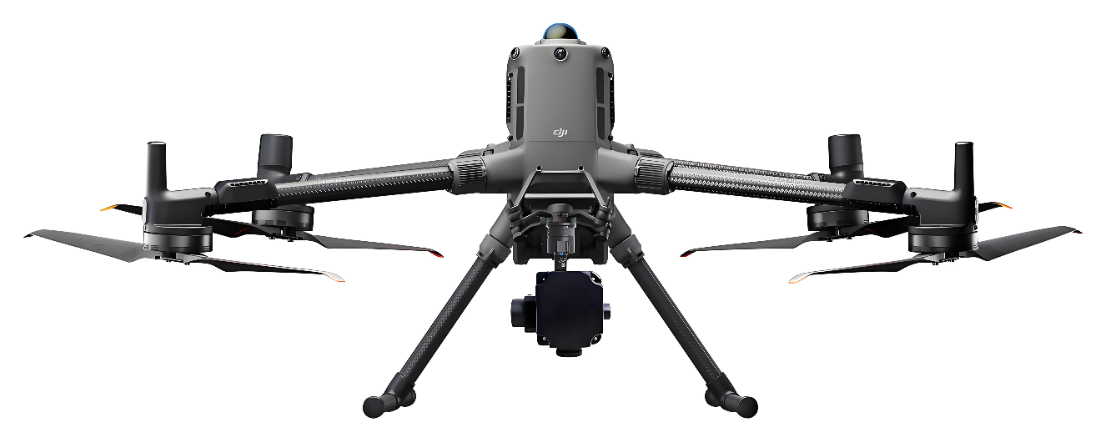

CHNSpec EP-DU/EP-NU Series Airborne EL/PL Detectors are engineered for drone inspections of large-scale photovoltaic plants. Fully compatible with the DJI M350/M400 drone platforms, they feature a lightweight design, comprehensive detection modes, and intelligent, user-friendly controls—significantly enhancing the efficiency, accuracy, and operational flexibility of airborne PV inspections across various precision requirements and project scales.

Airborne PV Imaging Systems EL / PL Detector

  • All-Mode, All-Weather Operation for Unrestricted Inspections: Supports nighttime EL / daytime EL / daytime PL full-mode detection, completely eliminating interference from ambient light such as sunlight, moonlight, starlight, and artificial lighting. This enables truly stable 24/7 all-weather operation, delivering clear inspection results whether for routine daytime batch inspections or precise nighttime troubleshooting, and adapting to complex outdoor climatic conditions.
  • Lightweight Design for Efficient Deployment: Features an ultra-lightweight design that minimizes the payload on the drone. This facilitates quick assembly/disassembly, transportation, and on-site deployment, significantly enhancing operational mobility and efficiency.
  • Intelligent and User-Friendly Operation: Equipped with a remote controller featuring an integrated high-brightness screen, supporting real-time image preview and flexible parameter adjustment for an intuitive user experience. It also features a multi-language operation interface, greatly lowering the skill barrier and improving on-site workflow fluency.

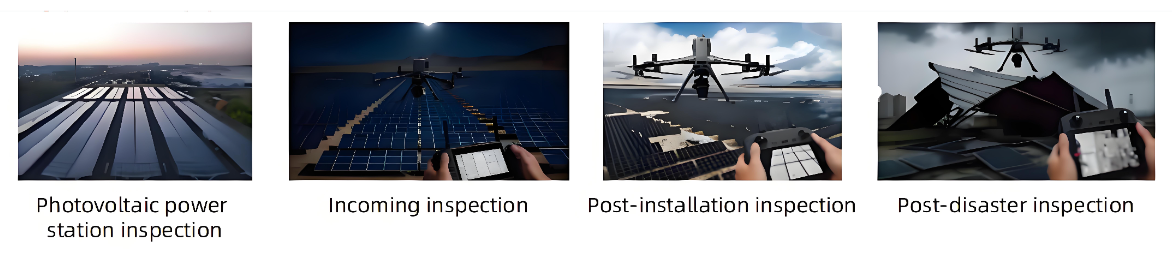

Typical applications

Airborne PV Imaging Systems EL / PL Detector


Parameters

Types Night test All-weather test
Model EP-NU-1200 EP-DU-300 EP-DU-500
Inspection Mode UAV-mounted inspection
EL Video Enables high-definition string-level EL video function
Remote Controller with Screen Remote control aircraft, gimbal, infrared camera; adjustable camera configuration parameters; real-time inspection images viewable on display screen; photo capture function controllable.
UAV Positioning GPS + GLONASS + BeiDou + Galileo
UAV Battery 1 set (standard)
Operating Temperature -10～50℃
Controllable Rotation Range Tilt: -(120, 60); Pan: -(310, 310)
Pixel 12 million pixels 3 million pixels 12 million pixels
GPS Recording EL imaging automatically records GPS/BeiDou positioning coordinates (latitude/longitude)
Defect Location Satellite-based latitude/longitude positioning enables precise navigation to locate each defective module's coordinate point
Field of View 46.3°× 36° 39.1°x 29.8°
Measurement Environment Light/moonlight/starlight has no effect on detection Daylight, moonlight, starlight, and artificial light have no effect on the test; all-weather adaptable
Preview Function Real-time preview, Users can directly view overall or partial internal defects of the modules through the live feed
Image Format Output JPEG
Operation Interface Chinese / (English optional)
Night Vision Function Supported
Weight ＜1KG
Dimensions 133*80*76mm 106*80*76mm

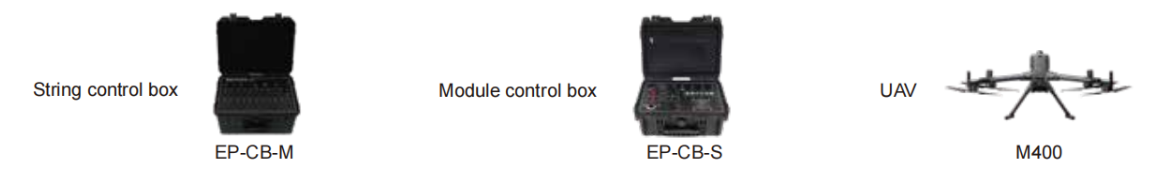

Accessories
