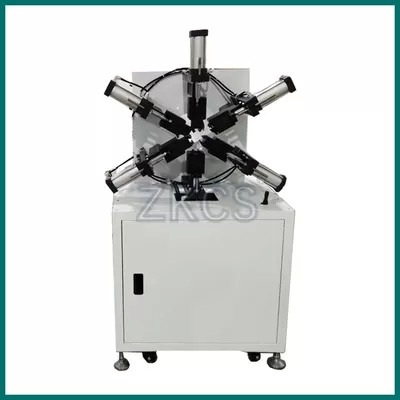

High-Precision 6 Claws Pneumatic Tube Expanding Machine
High-Precision 6 Claws Pneumatic Tube Expanding Machine
High-Precision 6 Claws Pneumatic Tube Expanding Machine
High-Precision 6 Claws Pneumatic Tube Expanding Machine
High-Precision 6 Claws Pneumatic Tube Expanding Machine
High-Precision 6 Claws Pneumatic Tube Expanding Machine
Specifications
Brand Name :
ZKCS
Model Number :
ZK-PEX136
Place of Origin :
CHINA
MOQ :
1unit
Price :
customized
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
20days for 1 machine production
Delivery Time :
20-30days
Packaging Details :
Export special usage polywood case
Claw Quantity :
6 Claws
Color :
White
Driving Force :
Hydraulic Oil
Assistant Force :
Pneumatic Force
Description

Product Name


High-Precision 6 Claws Pneumatic Tube Expanding Machine


Product Description


The High-Precision 6 Claws Pneumatic Tube expanding machine is a newly upgraded industrial tube processing equipment independently developed for precision tube expansion processing. As a core pneumatic processing device, this expansion equipment adopts an optimized six-claw clamping structure, perfectly solving the problems of uneven clamping and low expansion accuracy of traditional tube expanders. Our machine expanding machine takes compressed air as the power source, featuring stable transmission, low operation noise and no hydraulic oil pollution, which conforms to modern industrial environmental protection production standards.
Different from ordinary tube expanding machines, the upgraded equipment is equipped with high-precision sensing elements and intelligent pressure control modules. It can realize one-time precise expansion for metal tubes with different pipe diameters and wall thicknesses. The whole machine has a compact and sturdy integrated frame structure, which can maintain stable processing performance even in long-term continuous working conditions. We focus on R&D and production of high-quality High-Precision 6 Claws Pneumatic Tube expanding machines, and support customized services according to customers' tube processing requirements. Welcome global buyers to consult us for factory direct sales quotations, and we provide one-stop pre-sales and after-sales technical guidance to help you obtain cost-effective High-Precision 6 Claws Pneumatic Tube processing equipment.


Product Application


TheHigh-Precision 6 Claws Pneumatic Tube expanding machine has extremely wide application coverage and is suitable for precision expansion processing of various metal thin-walled tubes and thick-walled tubes. It is widely used in multiple industrial fields, and the detailed application scenarios are as follows:
  • HVAC Refrigeration Industry: The High-Precision 6 Claws Pneumatic Tube expanding machine is specially used for expanding copper tubes, aluminum tubes and heat exchange tubes of radiators, condensers and evaporators to ensure tight bonding between tubes and fins.
  • New Energy Industry: Process heat dissipation tubes and battery connecting tubes for new energy equipment, meeting the high-precision assembly standards of new energy precision parts.


Main technical parameters for Textile expanding machine


No. Item Parameters
01 Dynamic system Pneumatic control, not lower than 0.6Mpa
02 Pneumatic cylinder stroke 150mm
03 Expanding stroke 150mm
04 Pneumatic cylinder 6pcs
05 Pneumatic diameter 75mm


06

 After expanding diameter Min. 15mm


Max. 150mm
07 Expanding length

Silicon lower than 130mm;

EPDM lower than 100mm
08 Machine color

Main body:blue

Fence:white
09 Fence Lower closed fence
10 Accessory

One set expanding mold for small fingers(Ø16mm, length 100mm)

One set expanding mold for joint (Ø40mm, length 140mm)
11 Ref. machine size(L×W×H) 1000×1000×1400mm



Product Feature


  • 6-Claw Uniform Clamping, No Tube Damage: TheHigh-Precision 6 Claws Pneumatic Tube expanding machine adopts an equidistant six-claw clamping design. The contact area between the fixture and the tube is enlarged, the clamping force is evenly distributed, and there is no indentation or scratch on the tube surface, which perfectly protects the integrity of precision pipes.
  • Easy Operation & High Automation: Equipped with intelligent touch screen and one-button start system. Workers can set expansion pressure, holding time and processing stroke simply. The High-Precision 6 Claws Pneumatic Tube equipment supports automatic reset after processing, reducing manual operation difficulty.

FAQ


Q1: What kinds of tubes can the machine expanding machine process?
A1: This High-Precision 6 Claws Pneumatic Tube equipment is compatible with copper tubes, aluminum tubes, stainless steel tubes, carbon steel tubes and various alloy metal tubes. It supports thin-walled and thick-walled tube expansion, flaring and shaping, covering most industrial metal tube processing scenarios.

Q2: Is the clamping structure of the 6-claw machine easy to wear? How to maintain it?
A2: The six claws of the High-Precision 6 Claws Pneumatic Tube expanding machine are made of high-hardness alloy steel with anti-wear and anti-rust treatment. The daily maintenance is simple: regularly clean the fixture surface and add lubricating oil to the pneumatic guide rail. We provide free wearing parts for one year to reduce your use cost.

Q3: Can the machine customize expansion molds for special-shaped tubes?
A3: Yes. Our factory supports non-standard customization. According to customers' special-shaped tube size and processing requirements, we can customize exclusive expansion molds for the High-Precision 6 Claws Pneumatic Tube expanding machine to meet personalized production needs.

Q4: What is the delivery cycle and after-sales service of the equipment?
A4: The standard High-Precision 6 Claws Pneumatic Tube expanding machine is in stock and can be delivered within 3-7 working days. We provide 2-year global warranty, lifelong technical consultation and remote after-sales debugging service. Overseas door-to-door maintenance is supported for bulk orders.

Q5: Is there an operation tutorial for novice workers?
A5: Every High-Precision 6 Claws Pneumatic Tube expanding machine is equipped with detailed English operation manual and operation video. We provide free online training to teach workers parameter setting, mold replacement and daily maintenance, making the equipment easy to operate without professional technology.

Q6: Why choose your machine expanding machine?
A6: As a direct manufacturer, we have 15 years of pneumatic tube processing equipment production experience. Our High-Precision 6 Claws Pneumatic Tube expanding machine has stable quality, competitive factory price, and strict quality inspection before delivery. Compared with other suppliers, we provide more flexible customization services and more perfect after-sales support, helping customers reduce production costs and improve processing efficiency.
