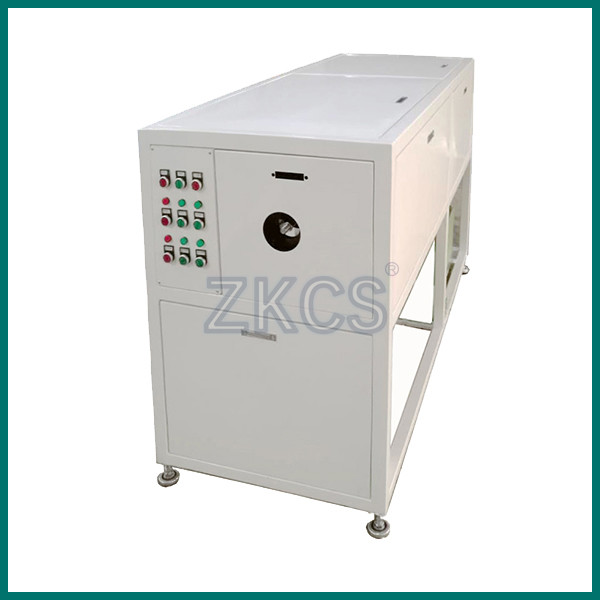

ZK-WEX750 Small Diameter Cold Shrink Tube Wire Expanding Machine
ZK-WEX750 Small Diameter Cold Shrink Tube Wire Expanding Machine
Specifications
Brand Name :
ZKCS
Model Number :
Customized
Certification :
CE
Place of Origin :
CHINA
MOQ :
1unit
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
20days for 1 machine production
Delivery Time :
20-30days
Packaging Details :
Export special usage polywood case
Color :
White
Fence :
Full Covered Fence
Expanding Type :
Wire
Diameter Range :
25-75mm
Description

Product Description

This Wire expanding machine is a professional hydraulic-powered equipment, specially developed for the processing of small-diameter cold shrinkable rubber products. Built with a robust hydraulic control system, the Wire expanding machine ensures stable, consistent and high-precision expansion performance for cold shrink tubes. It features a user-friendly control panel, a safe lower closed fence design, and a compact footprint (2000×1000×1300mm) that fits easily into most production workshops. The Wire expanding machine supports an expanded diameter range from 25mm to 75mm, with adjustable length expansion stroke from 100mm to 560mm, fully meeting the diverse processing requirements of insulated short tubes and cold shrink seal tubes.


Application

This Wire expanding machine is widely used in the production of cold shrinkable rubber products, especially suitable for expanding small-diameter (5-10mm) cold shrink tubes in the power cable accessories, communication equipment and rubber product manufacturing industries. It is important to note that the Wire expanding machine is not intended for steel wire expansion when the product’s expanded diameter exceeds 60mm.


Key Features

Stable Hydraulic Operation: This Wire expanding machine adopts a reliable hydraulic control system to deliver smooth and repeatable expansion results.

Customizable Production: The Wire expanding machine can be matched with custom moulds according to specific product sizes, offering flexible production capabilities.


technical parameters
No. Item Parameters
01 Dynamic system Hydraulic control
02 Hydraulic cylinder stroke 750mm
03 Length expansion stroke 100-560mm
04 Wire pulling cylinder 2pcs
05 Center push cylinder 1pc
06 After expanding diameter Min. 25mm
Max. 75mm
07 Machine color

Main body:light blue/white

Fence:white
08 Fence Lower closed fence
09 Accessory One set expanding mold
10 Ref. machine size(L×W×H) 2000×1000×1300mm


FAQ

  • What materials is this machine suitable for?


    It is mainly used for expanding small-diameter cold shrink rubber tubes, insulation sleeves, sealing tubes and other cable accessories.



  • What is the processing range of this equipment?


    It supports an expansion diameter from 25mm to 75mm and an adjustable expansion stroke from 100mm to 560mm.



  • Can the molds be customized according to product size?


    Yes, customized molds are available to match different product diameters and lengths.



  • What power supply does this machine need?


    The standard configuration is 380V/50Hz, and it can be equipped with a transformer to adapt to different regional voltages.



  • What safety features does this equipment have?


    It is equipped with a fully enclosed lower protective fence, and the hydraulic system runs stably with low noise and high safety.
