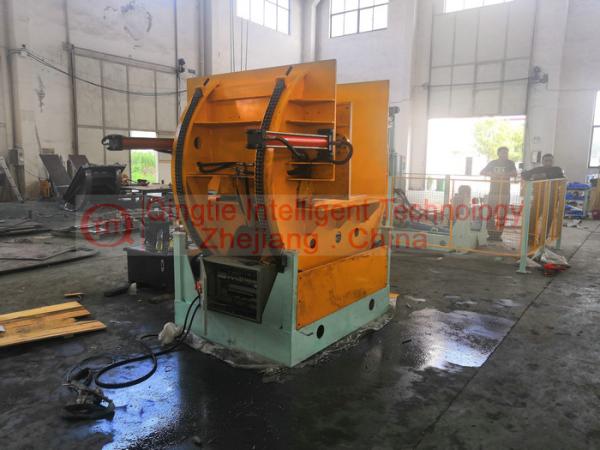

Heavy Duty Steel Coil Upender / Large Capacity Hydraulic Upender

Steel Coil Upender Features:

1. The structure of panel turnover machine is made of steel and steel plate by fine welding, ensuring its structural strength and stability;

2. The hydraulic cylinder is of smooth and uniform compaction and easy to control, and the clamping force is adjustable;

3. The plate blank is fed in by means of rolling bearing,which does no damage to the plate blank;

4. The control button and the indicating lamp are all located on the control panel, easy for operation as well nice and practical.

Steel Coil Upender process description:

1 First put the product into the turning machine with the driving or forklift, start the operation button, the pressing mechanism automatically presses down (hydraulic) to fix the product, the turning machine starts to turn over, and the pressing mechanism automatically resets (hydraulic) loose after the product completes 180° turning. Open the product, drive or forklift to remove the product; start the reset flip button, flip the machine to reset.
2 materials
The main material is Q235 high quality carbon steel
Shaft material is made of 45# high quality carbon steel
3 Processing technology
Equipment body frame welding

Steel Coil Upender Main features:

1. The double-row chain drive makes the turning part of the turning machine work more smoothly and reliably.
2. Using super worm gear reducer makes the transmission power of the equipment more safe and reliable.
3. The four-wheel mechanism with reasonable structure has a stable bearing.
4. When the 180° is turned over, the double protection switch device (mechanical limit switch and electric limit switch limit) is used to make the turning machine safer.
5. When the raft is up and down, the flip table is stable.
6. After the flip is completed, the flip ends to automatically stop.
7. Using the emergency stop button makes it possible to quickly stop the flip in an emergency.
8. The unit can be stopped at any position during the flipping process.
9. Products centered into the center of the turning machine working platform

The main parameters:
Basic data of products:

1. plate material: stainless steel SUS201
2. Steel plate size: length 1250mm, width 780mm, height 100-500mm;
3. Pallet size: 800mm × 700mm × 120mm;
4. Steel plate and tray integrated;
5. The entire material weight is around 500KG-3000KG.
6. Turning machine size: about 2000mm * 900mm * 1650mm.
7. Machine weight: about 2.5T.
8. Power supply: 380V, three-phase five-wire.

Main configuration
