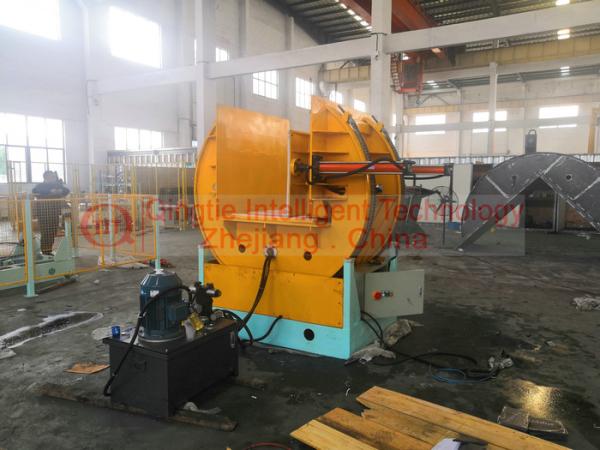

Heavy Load Automatic Turnover Machine With 180 Degree Turning Angle

Automatic Turnover Machine Application:

Automatic Turnover Machine with hydraulic control, continuous production, reduce the labor intensity of workers in the operation more secure and reliable, stable and accurate. Electrical operation screen with emergency stop (total stop) rotary switch, can be quickly in case of emergency braking to ensure safety

Automatic Turnover Machine Basic operation:
Manual switching, cyclic operation.
process description:
1 First put the product into the turning machine with the driving or forklift, start the operation button, the pressing mechanism automatically presses down (hydraulic) to fix the product, the turning machine starts to turn over, and the pressing mechanism automatically resets (hydraulic) loose after the product completes 180° turning. Open the product, drive or forklift to remove the product; start the reset flip button, flip the machine to reset.
2 materials
The main material is Q235 high quality carbon steel
Shaft material is made of 45# high quality carbon steel
3 Processing technology
Equipment body frame welding
basic characteristics
Main features:

1. The double-row chain drive makes the turning part of the turning machine work more smoothly and reliably.
2. Using super worm gear reducer makes the transmission power of the equipment more safe and reliable.
3. The four-wheel mechanism with reasonable structure has a stable bearing.
4. When the 180° is turned over, the double protection switch device (mechanical limit switch and electric limit switch limit) is used to make the turning machine safer.
5. Products centered into the center of the turning machine working platform
6. The unique flip surface design ensures that the product fits close to the flipping body, and the turning operation is smooth and safe.
7. Use a jacking or lowering mechanism.
8. Using synchronous mechanical structure to ensure uniformity and stability of the whole machine.
9. Product nature: Pressure does not damage the product itself.

Automatic Turnover Machine Main configuration

Main performance indicators

Equipment spraying
1) Machine: Egg Green GSB05-1426-2001 (instead of GSB G51001-94)
2) The warning part is yellow
