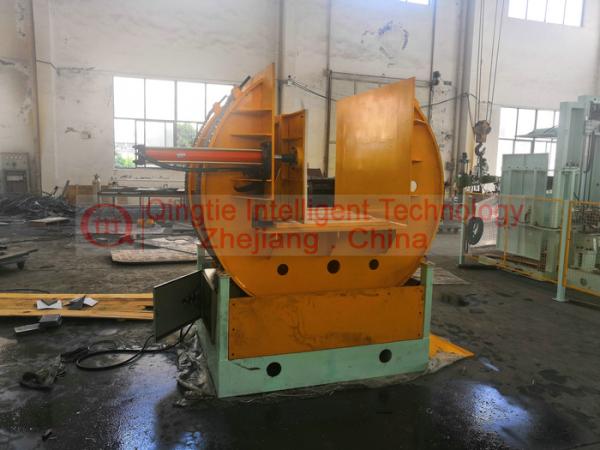

Automated Mold Upender / Welding Frame Cyclic Operation Coil Upender

Mold Upender Main Features

The plate blank is fed in by means of rolling bearing,which causes no damage to the plate blank.
The control button and the indicating lamp are all located on the control panel, easy for operation as well nice and practical.

Mold Upender Main features:

1. The double-row chain drive makes the turning part of the turning machine work more smoothly and reliably.
2. Using super worm gear reducer makes the transmission power of the equipment more safe and reliable.
3. The four-wheel mechanism with reasonable structure has a stable bearing.
4. When the 180° is turned over, the double protection switch device (mechanical limit switch and electric limit switch limit) is used to make the turning machine safer.
5. When the raft is up and down, the flip table is stable.
6. After the flip is completed, the flip ends to automatically stop.
7. Using the emergency stop button makes it possible to quickly stop the flip in an emergency.
8. The unit can be stopped at any position during the flipping process.
9. Products centered into the center of the turning machine working platform
10. The unique flip surface design ensures that the product fits close to the flipping body, and the turning operation is smooth and safe.
11. Use a jacking or lowering mechanism.
12. Using synchronous mechanical structure to ensure uniformity and stability of the whole machine.
13. Product nature: Pressure does not damage the product itself.

The main parameters:
Basic data of products:

1. plate material: stainless steel SUS201
2. Steel plate size: length 1250mm, width 780mm, height 100-500mm;
3. Pallet size: 800mm × 700mm × 120mm;
4. Steel plate and tray integrated;
5. The entire material weight is around 500KG-3000KG.
6. Turning machine size: about 2000mm * 900mm * 1650mm.
7. Machine weight: about 2.5T.
8. Power supply: 380V, three-phase five-wire.

Main configuration

Main performance indicators

Equipment spraying
1) Machine: Egg Green GSB05-1426-2001 (instead of GSB G51001-94)
2) The warning part is yellow
