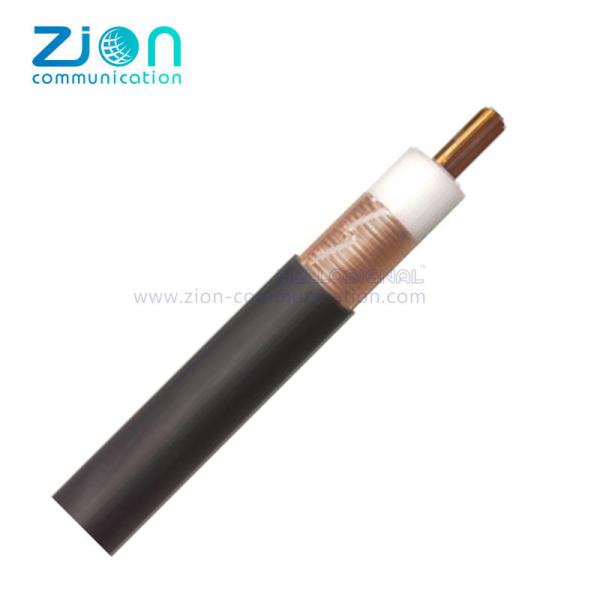

1-1/4 Inches Radiating Cable Smooth Copper Leaky Feeder Cable for Wireless Mobile Communication
1-1/4 Inches Radiating Cable Smooth Copper Leaky Feeder Cable for Wireless Mobile Communication
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
Leaky Coaxial Cable
Certification :
ISO, CE, RoHS, UL
Place of Origin :
China
MOQ :
1 KM
Payment Terms :
T/T, L/C
Supply Ability :
1000KM / Month
Delivery Time :
25 working days
Packaging Details :
100M, 300M, Wooden Reel, Carton
Inner Conductor :
copper tube
Dielectric :
Cellular polyethylene
Outer Conductor :
Copper foil
Jacket :
Black PE or Black LSZH
Marking :
Brand, cable type, cable ID, meter mark
Description
1 1/4”Radiating Leaky Cable(M Band)
NO.7101133
CABLE TYPE: RFXT 1 1/4”-50M(BHF)；HLRCTCY(Z)-50-32M
Construction
Inner Conductor Copper tube Ø 13.1 mm
Dielectric Cellular polyethylene Ø 33.0 mm
Outer Conductor Copper foil Ø 34.0 mm (Max)
Jacket Black PE or Black LSZH Ø 37.5 mm (Max)
Marking Brand, cable type, cable ID, meter mark

Electrical Characteristics at +20℃
Characteristic impedance 50 ± 2 Ω 1-1/4 Inches Radiating Cable Smooth Copper Leaky Feeder Cable for Wireless Mobile Communication
Velocity 0.88
Capacitance 76 pF/m
Insulation Resistantce >5000 MΩ.km
Insulation Voltage 15000 V
Jacket Spark Test Voltage 10000 V
VSWR
Frequency (MHz) VSWR (Max)
100~200 1.3
320~480
680~700
790~960
MECHANICAL CHARACTERISTICS
Weigh 780kg/km
Maximum pulling force 2000N
Minimum bending radius
Single bending 400 mm
Repeated bending 500 mm
Operating temperature range -40~ +80℃
Min. installation temperature -20℃ (PE);
-5℃ (LSZH)
Attenuation and Coupling Loss
Frequency
(MHZ)		 Attenuation
dB/100m
@20℃		 Coupling Loss
(50%/95%)
dB
75 0.7 61/69
150 1.1 70/79
350 1.8 74/82
450 2.1 71/78
700 2.7 72/80
800 3.0 64/68
900 3.3 64/69
960 3.4 72/80
Note: Coupling Loss tolerance ±5dB
Order Informations:
Marking HELLOSIGNAL 1 1/4”Radiating Leaky Cable(M Band) ××× M
Package Inquired Length on Wooden Drum and Pallet.
Brand HELLOSIGNAL® OR OEM
