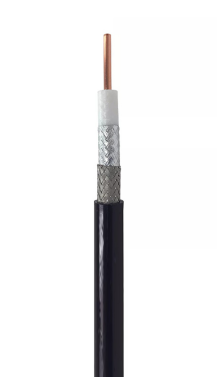

50Ohm coaxial cable 8D-FB BC TC PE 2.80±0.03mm Bare Copper
50Ohm coaxial cable 8D-FB BC TC PE 2.80±0.03mm Bare Copper
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
D-FB Coax Cable
Certification :
UL, ETL, CE,CPR, RoHS
Place of Origin :
China
MOQ :
10 KM
Payment Terms :
T/T, L/C
Supply Ability :
1000KM / Month
Delivery Time :
25 working days
Packaging Details :
100M, 300M, Wooden Reel, Carton
Inner Conductor :
2.80±0.03mm Bare Copper
Dielectric :
7.80±0.15mm Foamed PE
Shield :
Bonded AL-Foil
Outer Conductor :
Nom. 8.60mm Tinned Copper Braid 86% Coverage
Jacket :
11.1±0.2mm PE Black
Description
8D-FB BC TC PE 50 ohm coaxial cable
NO.7101408
Construction Parameters:
Inner Conductor 2.80±0.03mm Bare Copper
Dielectric 7.80±0.15mm Foamed PE
Shield Bonded AL-Foil
Outer Conductor Nom. 8.60mm Tinned Copper Braid 86% Coverage
Jacket 11.1±0.2mm PE Black
Electrical Characteristics:
Capacitance 84 pF/m
50Ohm coaxial cable 8D-FB BC TC PE 2.80±0.03mm Bare Copper
Impedance 50±2 Ω
Velocity of Propagation 83%
Dc Test Voltage 2500V
Jacket spark 4000 V.RMS
Shielding Effectiveness ≥ 80 dB
Return Loss ≥ 20.8 dB
RoHS Yes
Mechanical and Environmental Properties:
Min. Cable Bend Radius 60 mm
Operating Temp. Range -40 ℃ to +80℃
Installation Temp. Range -30 ℃ to +60℃
Tensile Strength 86 kg
Attenuation(20℃):
Frequency (MHZ) Max Attenuation (dB/100m)
150 5.00
280 7.10
350 8.20
400 8.40
800 12.10
900 12.80
1200 16.30
1500 18.40
1900 21.40
2000 22.30
2400 24.60
3000 28.20
Order Informations:
Marking HELLOSIGNAL 8D-FB 50 Ohm COAXIAL CABLE ×××M
Package Inquired Length on Roll, Wooden Spool, Pallet …
Delivery time Normally 25 days after received the deposit.
Brand HELLOSIGNAL® OR OEM
Online Service:
Skype 0086 15088607575
Whatsapp 0086 15088607575
Email info@zion-communication.com
