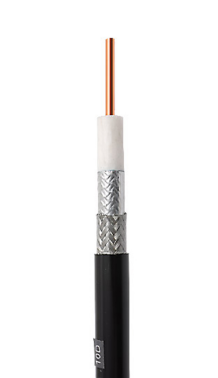

Manufacture RF coaxial cable 10D-FB BC TC PE low loss 50ohm bare copper PE insulation wire for communication
Manufacture RF coaxial cable 10D-FB BC TC PE low loss 50ohm bare copper PE insulation wire for communication
Specifications
Brand Name :
Zion communication OR OEM
Model Number :
D-FB Coax Cable
Certification :
UL, ETL, CE,CPR, RoHS
Place of Origin :
China
MOQ :
10 KM
Payment Terms :
T/T, L/C
Supply Ability :
1000KM / Month
Delivery Time :
25 working days
Packaging Details :
100M, 300M, Wooden Reel, Carton
Inner Conductor :
3.50mm Bare Copper
Dielectric :
10.00mm Foamed PE
Shield :
Bonded AL-Foil
Outer Conductor :
Nom. 10.80mm Tinned Copper Braid
Jacket :
13.00mm PE Black
Description
10D-FB BC TC PE
NO.7101411
Construction Parameters:
Inner Conductor 3.50mm Bare Copper
Dielectric 10.00mm Foamed PE
Shield Bonded AL-Foil
Outer Conductor Nom. 10.80mm Tinned Copper Braid
Jacket 13.00mm PE Black
Jacket Thickness
Application
Electrical Characteristics:
Capacitance 82 pF/m Manufacture RF coaxial cable 10D-FB BC TC PE low loss 50ohm bare copper PE insulation wire for communication
Impedance 50 Ω
Velocity of Propagation 83%
Inner Conductor DCR 1.8 Ω/km
Outer Conductor DCR 6.4 Ω/km
Shielding Effectiveness ≥ 80 dB
Return Loss ≥ 20 dB
RoHS Yes
Mechanical and Environmental Properties:
Cable Bend Radius 65mm
Operating Temp Range -40 ℃ to +85℃
Cable Diamensions 13.00mm
Attenuation(20℃):
Frequency (MHZ) Max Attenuation (dB/100m)
150 4.10
280 5.70
350 6.40
400 6.90
800 10.30
900 11.00
1200 13.10
1500 15.00
1900 17.40
2000 18.00
2500 20.50
Order Informations:
Marking HELLOSIGNAL 10D-FB 50 Ohm COAXIAL CABLE ×××M
Package Inquired Length on Roll, Wooden Spool, Pallet …
Delivery time Normally 25 days after received the deposit.
Brand HELLOSIGNAL® OR OEM
Online Service:
Skype 0086 15088607575
Whatsapp 0086 15088607575
Email info@zion-communication.com
