Specifications
Brand Name :
Wingsec
Model Number :
WSBWS600
Certification :
Heat Resistance Test Report
Place of Origin :
China
MOQ :
No Limted
Price :
3.8-8
Payment Terms :
T/T,L/C
Supply Ability :
2000Meters per day
Delivery Time :
10-12 Days
Packaging Details :
Each Roll in Polyester Bag, Then in Carton Box
Product Name :
650gsm Fire Resistance Fiberglass High Silica Cloth
Color :
White/Yellow
Certificate :
Fire Test Heat Resistance Standard
Width :
92/100/152cm
Application :
Aerospace, Electronics, Chemical Process, Welding
Length :
50 meters per Roll in Carton Box
Features :
Soft point nearty 1700 ℃, long-period service at 1000 ℃
Material :
Fiberglass Cloth Fabric
Description

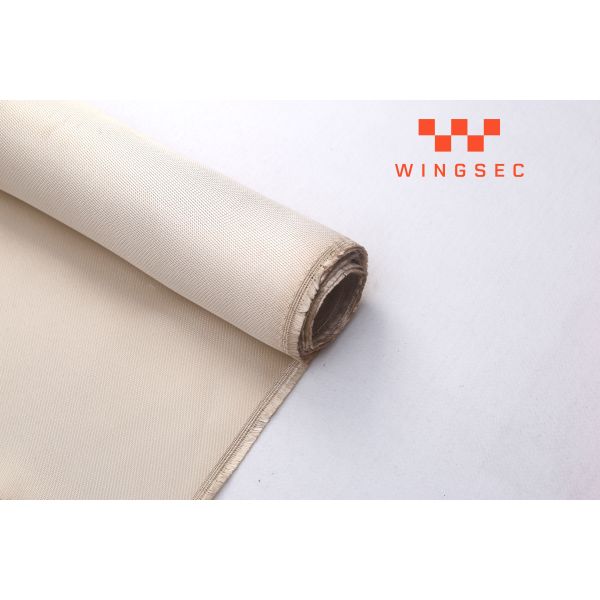

High Temperature Fiberglass Cloth Fire Resistant 0.7mm Thickness 650gsm High Silica Fabric Perfect Welding Area Shielding
Wingsec High Silica Cloth Introduction

Fiberglass Cloth WSBWS600 is a 600g weight silica fabric, SiO2 content 96%, it has extreme high temperature resistance up to 1200℃, melt point at 1700℃. If you need fireproof fabric which can afford stable protection in super hot environment, silica fabric is your only choice.

Much More Related Products

Style

Thickness(mm)

Width (cm)

Weight (gsm)

SiO₂ %

LOI

Weave

WSBWS300

0.3土0.05

92/100

300土30

≥96

≤3

Plain

WSBWS300B

0.3土0.03

92/100

300土30

≥96

≤3

1/2 Twill

WSBWS400B

0.4土0.04

92/100

440土40

≥96

≤3

2/2 Twill

WSBSW400C

0.4土0.04

92/100/152

440土40

≥96

≤3

2/2 Twill

WSBWT400

0.4土0.04

92/100/152

400土40

≥96

≤3

Plain

WSBWS650

0.65土0.1

92/100/152

650土40

≥96

≤3

3/8 Satin

WSBWS1100

1.0土0.1

92/100/152

1100土60

≥96

≤3

5/12 Satin

WSBWS1150

1.15土0.15

92/100/152

1150土60

≥96

≤3

5/12 Satin

WSBWS1250

1.25土007

92/100/152

1250土60

≥96

≤3

5/12 Satin

Key Features
  • Excellent high-temperature resistance: 1000°C (long-term use), 1200°C (short-term use), and 1400°C (momentary use).
  • Excellent thermal insulation: Low thermal conductivity.
  • Strong chemical stability: Inert to most chemicals and highly corrosion-resistant.
  • Excellent electrical insulation: Maintains insulation under high temperatures and pressures.
  • Low thermal shrinkage: Maintains dimensional stability at high temperatures.
  • Excellent mechanical properties: High strength and abrasion resistance.
  • Excellent processability: Easy to cut, sew, and knit.
  • Environmentally friendly: Asbestos-free, harmless to the environment and health.
  • Unique breathability and oil absorption properties.

Main Applications

Premium heavy-duty welding protection and fire curtains designed for maximum safety,
removable heat insulation jackets crafted from high-temperature resistant materials for versatile protection,
and robust heat insulation mattresses engineered for long-lasting thermal performance.

High Temperature Fiberglass Cloth Fire Resistant 07mm Thickness 650gsm High Silica Fabric Perfect Welding Area ShieldingHigh Temperature Fiberglass Cloth Fire Resistant 07mm Thickness 650gsm High Silica Fabric Perfect Welding Area Shielding

High Temperature Fiberglass Cloth Fire Resistant 07mm Thickness 650gsm High Silica Fabric Perfect Welding Area ShieldingHigh Temperature Fiberglass Cloth Fire Resistant 07mm Thickness 650gsm High Silica Fabric Perfect Welding Area Shielding

High Temperature Fiberglass Cloth Fire Resistant 07mm Thickness 650gsm High Silica Fabric Perfect Welding Area Shielding

FAQs

Q: Why choose us?
A: Wingsec's management and staff have over 20 years of combined experience in the industrial textiles industry. Leveraging advanced equipment, Wingsec is committed to providing customers with high-quality, cost-effective products.

Q: What is your delivery time?
A: We typically ship within 10 days of order, but the specific delivery time depends on the quantity you require.

Q: Where is your shipping port?
A: Typically, Shanghai Port, but custom orders are also available.

Q: Can you produce custom products?
A: Of course, we can customize according to your requirements.

Q: What payment methods do you accept?
A: We accept T/T, D/A, L/C, and D/P.

Q: Do you have other production methods?
A: Of course. We offer silicone-coated fiberglass cloth, polyurethane-coated fiberglass cloth, stainless steel wire-reinforced alkali-free fiberglass cloth, vermiculite-coated fiberglass cloth, graphite-treated fiberglass cloth, calcium silicate-coated fiberglass cloth, EPDM-coated fiberglass cloth, fluororubber-coated fiberglass cloth, aluminum foil-coated fiberglass cloth, woven lock/finished fiberglass cloth, fire blankets, welding blankets, and customized solutions for your insulation needs. We look forward to hearing from you.
