Specifications
Brand Name :
Wingsec
Model Number :
WSBWS600
Certification :
Heat Resistance Test Report
Place of Origin :
China
MOQ :
No Limted
Price :
3.8-8
Payment Terms :
T/T,L/C
Supply Ability :
2000Meters per day
Delivery Time :
10-12 Days
Packaging Details :
Each Roll in Polyester Bag, Then in Carton Box
Product Name :
650gsm Fire Resistance Fiberglass High Silica Cloth
Color :
White
Certificate :
Fire Test Heat Resistance Standard
Width :
92/100/152cm
Application :
Aerospace, Electronics, Chemical Process, Welding
Length :
50 meters per Roll in Carton Box
Features :
Soft point nearty 1700 ℃, long-period service at 1000 ℃
Material :
Fiberglass Cloth Fabric
Description

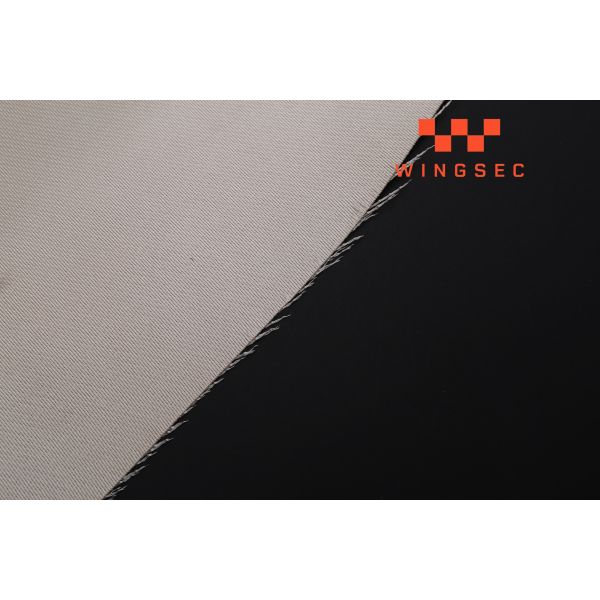

0.7mm Thickness 650gsm Fire Resistance Fiberglass High Silica Cloth Used For Welding Area
Wingsec High Silica Cloth Introduction

With the ability to withstand continuous temperature of 900-degree Celsius and most significantly, the instantaneous temperature of 1400-degree Celsius, the silica cloth is highly heat resistant. It has been made to be suitable for rocket and missile manufacturing in the aerospace industries.

The yarn and filtration mesh pieces that are treated with the use of high resistance coating.

They are perfectly suitable for heat preservation materials as well as fire fighting equipments such as fireproof garments. They are excellent in dust collection and filtration equipments.

Much More Related Products
Style Thickness(mm) Width (cm) Weight (gsm) SiO₂ % LOI

Weave

WSBWS300 0.3土0.05 92/100 300土30 ≥96 ≤3 Plain
WSBWS300B 0.3土0.03 92/100 300土30 ≥96 ≤3 1/2 Twill
WSBWS400B 0.4土0.04 92/100 440土40 ≥96 ≤3 2/2 Twill
WSBSW400C 0.4土0.04 92/100/152 440土40 ≥96 ≤3 2/2 Twill
WSBWT400 0.4土0.04 92/100/152 400土40 ≥96 ≤3 Plain
WSBWS650 0.65土0.1 92/100/152 650土40 ≥96 ≤3 3/8 Satin
WSBWS1100 1.0土0.1 92/100/152 1100土60 ≥96 ≤3 5/12 Satin
WSBWS1150 1.15土0.15 92/100/152 1150土60 ≥96 ≤3 5/12 Satin
WSBWS1250 1.25土007 92/100/152 1250土60 ≥96 ≤3 5/12 Satin
Key Features
  • Excellent high-temperature resistance: 1000°C (long-term use), 1200°C (short-term use), and 1400°C (momentary use).
  • Excellent thermal insulation: Low thermal conductivity.
  • Strong chemical stability: Inert to most chemicals and highly corrosion-resistant.
  • Excellent electrical insulation: Maintains insulation under high temperatures and pressures.
  • Low thermal shrinkage: Maintains dimensional stability at high temperatures.
  • Excellent mechanical properties: High strength and abrasion resistance.
  • Excellent processability: Easy to cut, sew, and knit.
  • Environmentally friendly: Asbestos-free, harmless to the environment and health.
  • Unique breathability and oil absorption properties.

Main Applications

Heavy duty welding protecion and fire curtains

Hot face material for removable heat insulation jacket

Heat insulation mattress

300g 400g 650g High Temperature Fiberglass Cloth Fire Resistant Fiberglass Fabric300g 400g 650g High Temperature Fiberglass Cloth Fire Resistant Fiberglass Fabric

300g 400g 650g High Temperature Fiberglass Cloth Fire Resistant Fiberglass Fabric300g 400g 650g High Temperature Fiberglass Cloth Fire Resistant Fiberglass Fabric

300g 400g 650g High Temperature Fiberglass Cloth Fire Resistant Fiberglass Fabric

FAQs

Q: Why choose us?
A: Wingsec's management and staff have over 20 years of combined experience in the industrial textiles industry. Leveraging advanced equipment, Wingsec is committed to providing customers with high-quality, cost-effective products.

Q: What is your delivery time?
A: We typically ship within 10 days of order, but the specific delivery time depends on the quantity you require.

Q: Where is your shipping port?
A: Typically, Shanghai Port, but custom orders are also available.

Q: Can you produce custom products?
A: Of course, we can customize according to your requirements.

Q: What payment methods do you accept?
A: We accept T/T, D/A, L/C, and D/P.

Q: Do you have other production methods?
A: Of course. We offer silicone-coated fiberglass cloth, polyurethane-coated fiberglass cloth, stainless steel wire-reinforced alkali-free fiberglass cloth, vermiculite-coated fiberglass cloth, graphite-treated fiberglass cloth, calcium silicate-coated fiberglass cloth, EPDM-coated fiberglass cloth, fluororubber-coated fiberglass cloth, aluminum foil-coated fiberglass cloth, woven lock/finished fiberglass cloth, fire blankets, welding blankets, and customized solutions for your insulation needs. We look forward to hearing from you.
