Specifications
Brand Name :
Wingsec
Model Number :
WSBWS600
Certification :
Heat Resistance Test Report
Place of Origin :
China
MOQ :
No Limted
Price :
3.8-8
Payment Terms :
T/T,L/C
Supply Ability :
2000Meters per day
Delivery Time :
10-12 Days
Packaging Details :
Each Roll in Polyester Bag, Then in Carton Box
Product Name :
650gsm Fire Resistance Fiberglass High Silica Cloth
Color :
White
Certificate :
Fire Test Heat Resistance Standard
Width :
92/100/152cm
Application :
Aerospace, Electronics, Chemical Process, Welding
Length :
50 meters per Roll in Carton Box
Features :
Soft point nearty 1700 ℃, long-period service at 1000 ℃
Material :
Fiberglass Cloth Fabric
Description

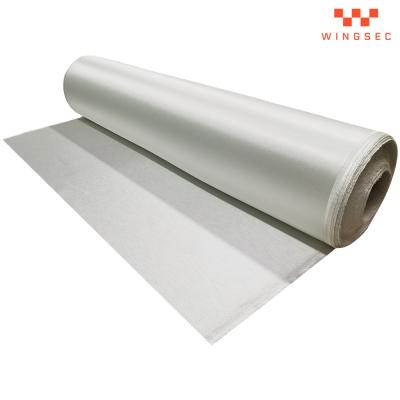

High Temperature Fiberglass Cloth 0.7mm Thickness 650gsm Weight for Extreme Temperatures in Industrial Applications
Wingsec High Silica Cloth Introduction
The company produces a wide range of silicone rubber fabrics with weights ranging from 300 to 1,250 g/m² and widths up to 1.5 meters. These fabrics feature various surface treatments to enhance their performance. Key applications include welding blankets, fire blankets, partitions and curtains, housings for equipment insulation, high-temperature insulation for furnaces and turbines, partitions for protection against molten metal splashes and sparks, and thermal insulation.
Much More Related Products
Style Thickness(mm) Width (cm) Weight (gsm) SiO₂ % LOI

Weave

WSBWT260 0.26土0.026 92/100 240土20 ≥96 ≤3 Plain
WSBWS300 0.3土0.05 92/100 300土30 ≥96 ≤3 Plain
WSBWS300B 0.3土0.03 92/100 300土30 ≥96 ≤3 1/2 Twill
WSBWS400B 0.4土0.04 92/100 440土40 ≥96 ≤3 2/2 Twill
WSBSW400C 0.4土0.04 92/100/152 440土40 ≥96 ≤3 2/2 Twill
WSBWT400 0.4土0.04 92/100/152 400土40 ≥96 ≤3 Plain
WSBWS650 0.65土0.1 92/100/152 650土40 ≥96 ≤3 3/8 Satin
WSBWS1100 1.0土0.1 92/100/152 1100土60 ≥96 ≤3 5/12 Satin
WSBWS1150 1.15土0.15 92/100/152 1150土60 ≥96 ≤3 5/12 Satin
WSBWS1250 1.25土007 92/100/152 1250土60 ≥96 ≤3 5/12 Satin
Key Features
  • Excellent high-temperature resistance: 1000°C (long-term use), 1200°C (short-term use), and 1400°C (momentary use).
  • Excellent thermal insulation: Low thermal conductivity.
  • Strong chemical stability: Inert to most chemicals and highly corrosion-resistant.
  • Excellent electrical insulation: Maintains insulation under high temperatures and pressures.
  • Low thermal shrinkage: Maintains dimensional stability at high temperatures.
  • Excellent mechanical properties: High strength and abrasion resistance.
  • Excellent processability: Easy to cut, sew, and knit.
  • Environmentally friendly: Asbestos-free, harmless to the environment and health.
  • Unique breathability and oil absorption properties.

Main Applications

The main wide field of application is car building, metalllurgy atomic and thermal power stations, insulation in electric and combusion fumaces. As a means of high temperature insulation at up to 12000С, thermal protection for different industries, for refractory base, gaskets and blankets, protecting from flame, splashes of molten metal, excessive heat,

Silicone Rubber Coated Fiberglass Fabric 650g/M2 Heat Resistant Fiberglass ClothSilicone Rubber Coated Fiberglass Fabric 650g/M2 Heat Resistant Fiberglass Cloth

Silicone Rubber Coated Fiberglass Fabric 650g/M2 Heat Resistant Fiberglass ClothSilicone Rubber Coated Fiberglass Fabric 650g/M2 Heat Resistant Fiberglass Cloth

Silicone Rubber Coated Fiberglass Fabric 650g/M2 Heat Resistant Fiberglass Cloth

FAQs

Q: Why choose us?
A: Wingsec's management and staff have over 20 years of combined experience in the industrial textiles industry. Leveraging advanced equipment, Wingsec is committed to providing customers with high-quality, cost-effective products.

Q: What is your delivery time?
A: We typically ship within 10 days of order, but the specific delivery time depends on the quantity you require.

Q: Where is your shipping port?
A: Typically, Shanghai Port, but custom orders are also available.

Q: Can you produce custom products?
A: Of course, we can customize according to your requirements.

Q: What payment methods do you accept?
A: We accept T/T, D/A, L/C, and D/P.

Q: Do you have other production methods?
A: Of course. We offer silicone-coated fiberglass cloth, polyurethane-coated fiberglass cloth, stainless steel wire-reinforced alkali-free fiberglass cloth, vermiculite-coated fiberglass cloth, graphite-treated fiberglass cloth, calcium silicate-coated fiberglass cloth, EPDM-coated fiberglass cloth, fluororubber-coated fiberglass cloth, aluminum foil-coated fiberglass cloth, woven lock/finished fiberglass cloth, fire blankets, welding blankets, and customized solutions for your insulation needs. We look forward to hearing from you.
