Three Axes CNC Spring Coiling Machine with 1.0-4.0mm Diameter and Taiwan CNC System
Three Axes CNC Spring Coiling Machine with 1.0-4.0mm Diameter and Taiwan CNC System
Three Axes CNC Spring Coiling Machine with 1.0-4.0mm Diameter and Taiwan CNC System
Three Axes CNC Spring Coiling Machine with 1.0-4.0mm Diameter and Taiwan CNC System
Three Axes CNC Spring Coiling Machine with 1.0-4.0mm Diameter and Taiwan CNC System
Three Axes CNC Spring Coiling Machine with 1.0-4.0mm Diameter and Taiwan CNC System
Three Axes CNC Spring Coiling Machine with 1.0-4.0mm Diameter and Taiwan CNC System
Three Axes CNC Spring Coiling Machine with 1.0-4.0mm Diameter and Taiwan CNC System
Three Axes CNC Spring Coiling Machine with 1.0-4.0mm Diameter and Taiwan CNC System
Three Axes CNC Spring Coiling Machine with 1.0-4.0mm Diameter and Taiwan CNC System
Specifications
Outer diameter range :
≤65.00mm
Machine size :
1200*850*1650mm
Machine weight :
1200kg
Yield per minute :
≤400pcs
Wire feeding motor :
5.5kw
Brand Name :
HYD
Model Number :
HYD-340
Certification :
CE / IS09001
Place of Origin :
Dongguan,China
MOQ :
1 Set
Price :
Negotiable
Payment Terms :
Negotiable,T/T
Delivery Time :
30 Days
Packaging Details :
Standard Seaworthy Plywood Case
Supply Ability :
30 units per year
Diameter :
1.0-4.0mm
Description
Mechanical Metal Compression Spring Machine, Three Axes CNC Spring Former
Product Overview

Computerized CNC Compression Spring Machine with Three Axes - A precision-engineered solution for high-quality spring manufacturing with advanced servo-motion control systems.

Model HYD-340
Diameter Range 1.0-4.0mm
Maximum Wire Length Unlimited
Outer Diameter Setting Range ≤65.00mm
Yield per Minute ≤400pcs
Wire Feeding Servo Motor 5.5kw
Outside Diameter Servo 5.5kw
Pitch Servo 1.0kw
Machine Size 1200*850*1650mm
Machine Weight 1200kg
Key Features & Advantages
  • Precision CNC controlled servo-motion system combined with mechanization conveniences
  • Suitable for various kinds of spring products through simplified setup and programming procedures
  • Horizontal wire feeding system installed at the back of the machine
  • Dual wire feeding wheel groups for enhanced performance and reliability
Machine Gallery
Three Axes CNC Spring Coiling Machine with 1.0-4.0mm Diameter and Taiwan CNC System

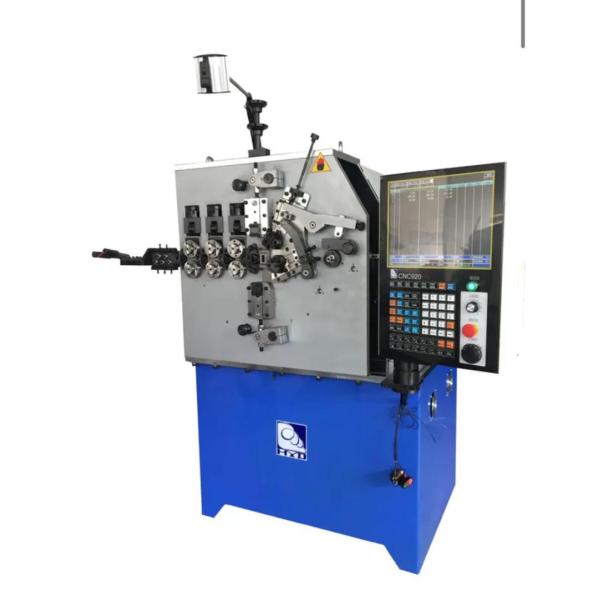

CNC Spring Machine Front View
Three Axes CNC Spring Coiling Machine with 1.0-4.0mm Diameter and Taiwan CNC System
Machine Control Panel
Three Axes CNC Spring Coiling Machine with 1.0-4.0mm Diameter and Taiwan CNC System

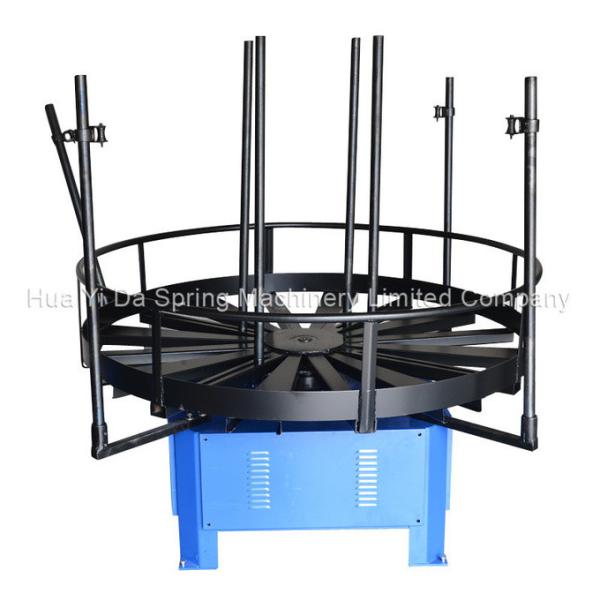

Wire Feeding Mechanism
Three Axes CNC Spring Coiling Machine with 1.0-4.0mm Diameter and Taiwan CNC System
Spring Coiling Process
Three Axes CNC Spring Coiling Machine with 1.0-4.0mm Diameter and Taiwan CNC System

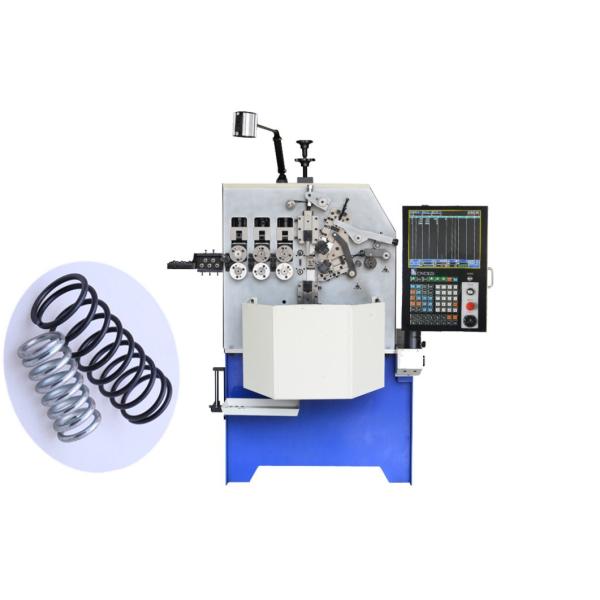

Finished Spring Products
