60m / Min Six Axes Helical Spring Wire Machine Automatic Spring Coiling Machine
60m / Min Six Axes Helical Spring Wire Machine Automatic Spring Coiling Machine
60m / Min Six Axes Helical Spring Wire Machine Automatic Spring Coiling Machine
60m / Min Six Axes Helical Spring Wire Machine Automatic Spring Coiling Machine
60m / Min Six Axes Helical Spring Wire Machine Automatic Spring Coiling Machine
60m / Min Six Axes Helical Spring Wire Machine Automatic Spring Coiling Machine
60m / Min Six Axes Helical Spring Wire Machine Automatic Spring Coiling Machine
60m / Min Six Axes Helical Spring Wire Machine Automatic Spring Coiling Machine
Specifications
Brand Name :
HYD
Model Number :
HYD-560
Certification :
CE / IS09001
Place of Origin :
Dongguan
MOQ :
1 Set
Payment Terms :
Negotiable
Delivery Time :
15-25 Days
Packaging Details :
Standard Seaworthy Plywood Case
Price :
Negotiable
Wire Diameter :
2.5-6.0mm
Axis :
Six Axes
Computer System :
Taiwan
Cutting Tools :
Six sets
Training Service :
Free training for one week
Delivery Port :
Any required port can be
Lead Time :
15-25 Days
Description

Computerized CNC Control Compression Spring Machine Wire Size Range:2.5-6.0mm

Product Range
This compression spring machine can make various compression springs, wire coil, oil seal springs, taper springs, double-taper springs, safe springs, extension spring, clip spring as well as simple wire moldings.

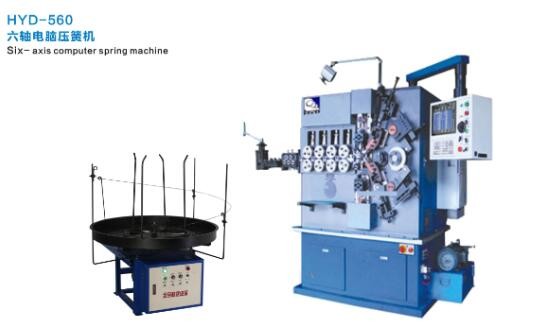

HYD-560 Six- axes compression spring machine
Technical parameters
Model HYD-560
Diameter 2.5-6.0mm
The maximum feed line length Unlimited
Winding direction Right and Left
Wire feeding speed 60m/Min
The maximum outer diameter of the spring 100mm
Production speed ≤200
Get the number of lines set 4 pairs
Wire feeding servo motor 15kw
Cam servo 2.7kw*2
Servo cutter* 2 5.5kw*2
Pitch servo 2.0kw
Dimension 2100×1400×2300mm
Weight 4000kg

Spring Samples

60m / Min Six Axes Helical Spring Wire Machine Automatic Spring Coiling Machine

Our Service
  1. One-year warranty.
  2. Permanent technical service .
  3. One week free training with accommodation and food.
  4. Engineer can be sent aboard for installation, debugging and training.

FAQ

  • What is your machine controller and motors?
    • Controllers are imported from Taiwan. Motors from Sanyo,Janpan.
  • Can you offer training in our plant?
    • Our enginner can be sent to your place for training if you need.
  • How many years you exported? Do you have CE?
    • Definitely, we have exported spring machines many years ago, and machines have CE certificates.
