Direct Drive Indexing Rotary Table 4th Axis Rotary Table For Medical Instruments
Direct Drive Indexing Rotary Table 4th Axis Rotary Table For Medical Instruments
Direct Drive Indexing Rotary Table 4th Axis Rotary Table For Medical Instruments
Direct Drive Indexing Rotary Table 4th Axis Rotary Table For Medical Instruments
Direct Drive Indexing Rotary Table 4th Axis Rotary Table For Medical Instruments
Direct Drive Indexing Rotary Table 4th Axis Rotary Table For Medical Instruments
Direct Drive Indexing Rotary Table 4th Axis Rotary Table For Medical Instruments
Direct Drive Indexing Rotary Table 4th Axis Rotary Table For Medical Instruments
Direct Drive Indexing Rotary Table 4th Axis Rotary Table For Medical Instruments
Direct Drive Indexing Rotary Table 4th Axis Rotary Table For Medical Instruments
Direct Drive Indexing Rotary Table 4th Axis Rotary Table For Medical Instruments
Direct Drive Indexing Rotary Table 4th Axis Rotary Table For Medical Instruments
Specifications
warranty :
3 Years
Table diameter :
170
machinery test report :
Provided
Model :
DAR-170
weight (kg) :
80
Table loading capacity :
50kg
center height :
135mm
MOQ :
1
Machine Type :
CNC rotary table, Direct-drive 4axis rotary table
brake torque :
150N.M
Axis Orientation :
Horizontal
T-slot size :
12H8
Place of Origin :
Guangdong, China
Brand Name :
Juzhuo
IP Rating :
IP65
video outgoing-inspection :
Provided
Products name :
4th axis rotary table
Description

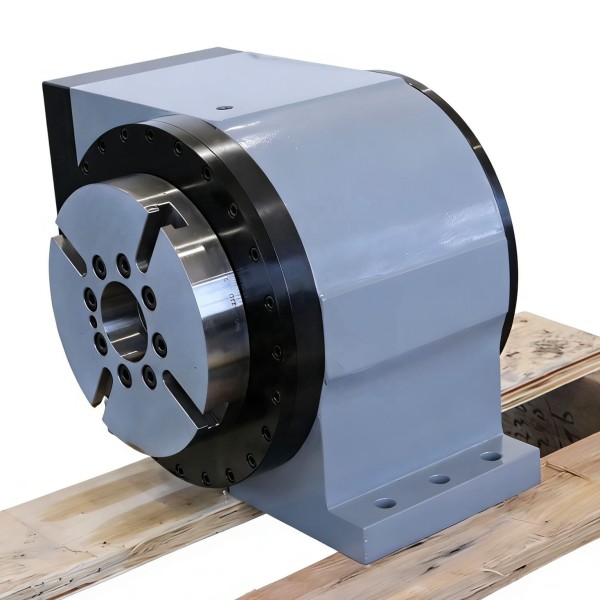

Direct Drive Indexing Mechanism 4th Axis Rotary Table
High-performance direct-drive torque motor 4th axis rotary table designed for precision indexing applications. Features advanced direct-drive technology with exceptional acceleration, torque, and zero-backlash performance.
Key Features
  • Direct-drive motor with high acceleration, high torque, high precision, and zero backlash
  • Built-in pneumatic power brake system for secure positioning
  • Large-bore, high-rigidity bearings for superior stability
  • Ideal for high-speed indexing of blades, medical instruments, 3C product parts, and more
Technical Specifications (Model: DAR-170)
Item/Model Unit Specifications
Table Diameter mm 170
Center Height mm 135
T-slot Size - 12H8
Table Load Capacity kg 50
Axis Orientation - Horizontal
Hollow Bore Diameter mm 40
Max. Rotary Table Speed r/min 200
Motor Rated Torque N*m 65
Motor Peak Torque N*m 309
Brake Torque N*m 150
IP Rating - IP65
Motor Cooling - Natural Cooling
Cable Outlet Type - Aviation Plug
Overall Weight kg 48
Product Images
Direct Drive Indexing Rotary Table 4th Axis Rotary Table For Medical Instruments Direct Drive Indexing Rotary Table 4th Axis Rotary Table For Medical Instruments Direct Drive Indexing Rotary Table 4th Axis Rotary Table For Medical Instruments Direct Drive Indexing Rotary Table 4th Axis Rotary Table For Medical Instruments Direct Drive Indexing Rotary Table 4th Axis Rotary Table For Medical Instruments Direct Drive Indexing Rotary Table 4th Axis Rotary Table For Medical Instruments Direct Drive Indexing Rotary Table 4th Axis Rotary Table For Medical Instruments Direct Drive Indexing Rotary Table 4th Axis Rotary Table For Medical Instruments Direct Drive Indexing Rotary Table 4th Axis Rotary Table For Medical Instruments Direct Drive Indexing Rotary Table 4th Axis Rotary Table For Medical Instruments Direct Drive Indexing Rotary Table 4th Axis Rotary Table For Medical Instruments
