Specifications
weight (kg) :
80
IP Rating :
IP65
Model :
DAR-170
center height :
135mm
Machine Type :
CNC rotary table, Direct-drive 4axis rotary table
brake torque :
150N.M
Table loading capacity :
50kg
T-slot size :
12H8
warranty :
3 Years
Axis Orientation :
Horizontal
machinery test report :
Provided
Table diameter :
170
Brand Name :
Juzhuo
video outgoing-inspection :
Provided
Products name :
4 Axis CNC Rotary Table
Place of Origin :
Guangdong, China
MOQ :
1
Description
Four-axis Linkage Direct-drive Rotary Table
Direct-drive Torque Motor 4th Axis Rotary Table DDR Rotary Table Four-axis Linkage Direct-drive Rotary Table
Product Features
  • Adopts a direct-drive motor with high acceleration, high torque, high precision, and zero backlash
  • Built-in pneumatic power brake system
  • The rotary axis uses large-bore, high-rigidity bearings
  • Suitable for high-speed indexing processing of blades, medical instrument parts, 3C product parts, etc.

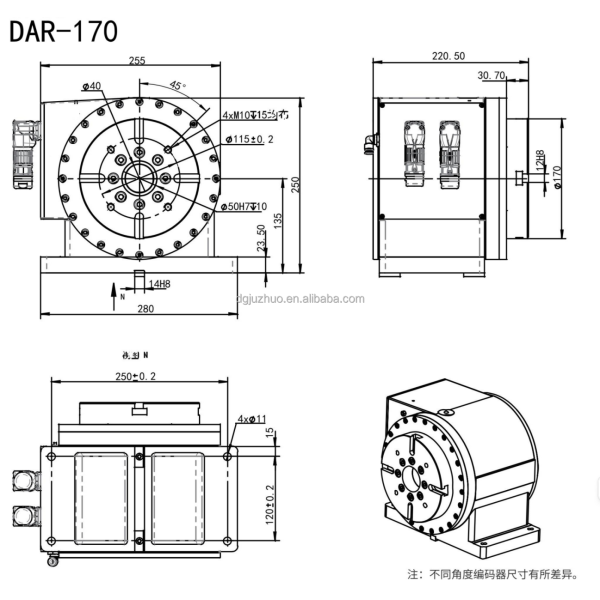

Technical Specifications (Model: DAR-170)
Item/Model Unit Specifications
Table Diameter mm 170
Center Height mm 135
T-slot Size - 12H8
Table Load Capacity kg 50
Axis Orientation - Horizontal
Hollow Bore Diameter mm 40
Max. Rotary Table Speed r/min 200
Motor Rated Torque N*m 65
Motor Peak Torque N*m 309
Brake Torque N*m 150
IP Rating - IP65
Motor Cooling - Natural Cooling
Cable Outlet Type - Aviation Plug
Overall Weight kg 48

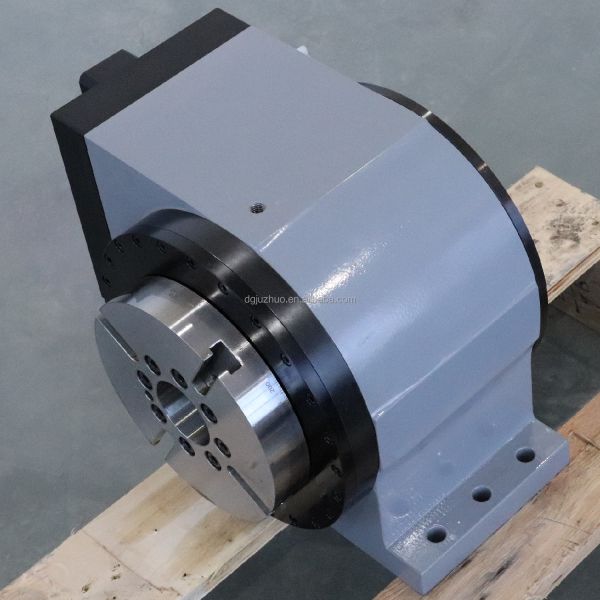

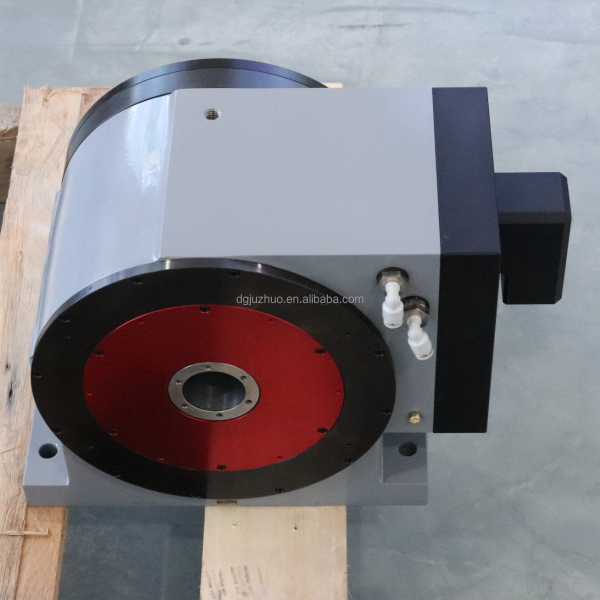

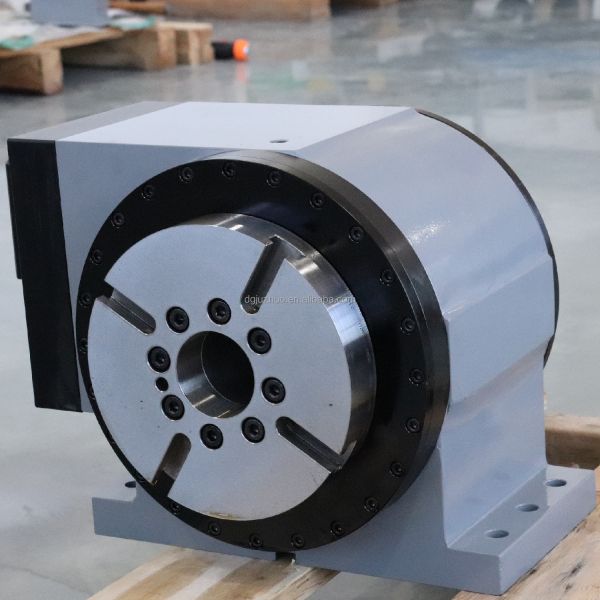

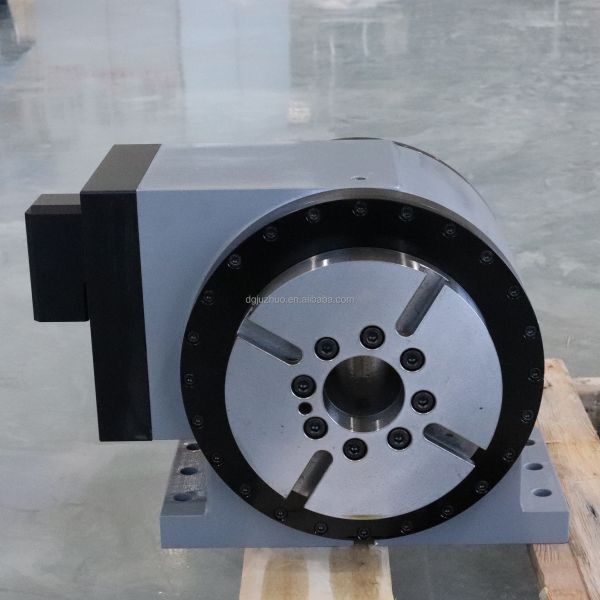

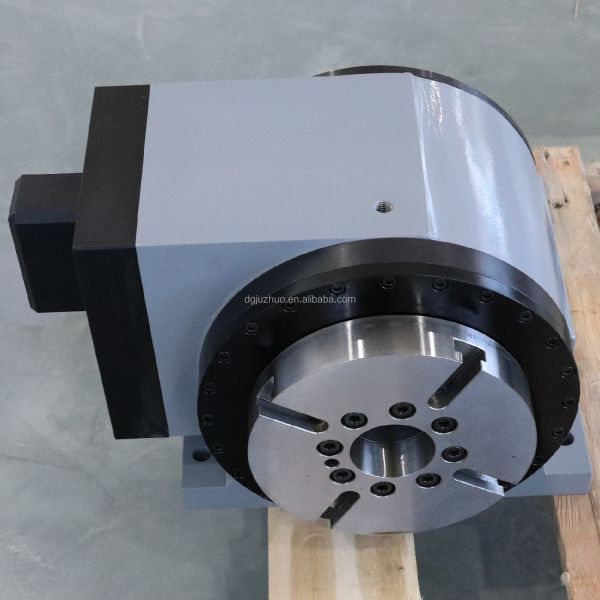

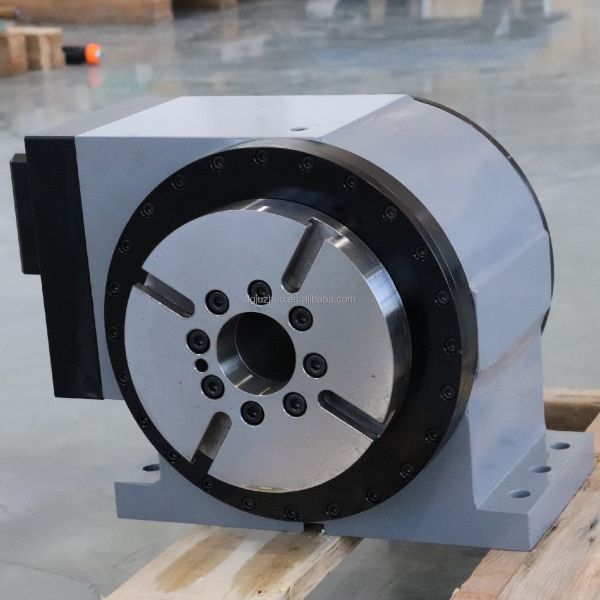

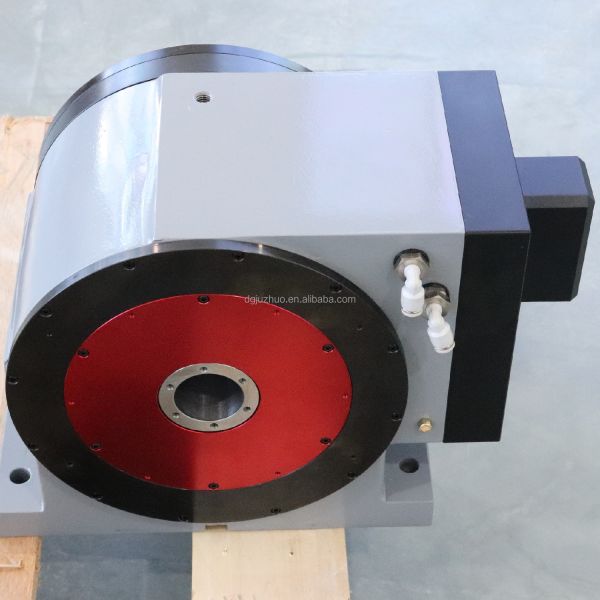

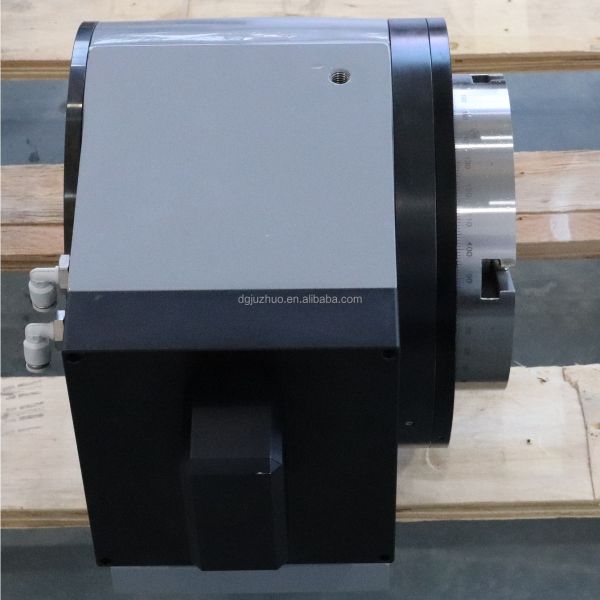

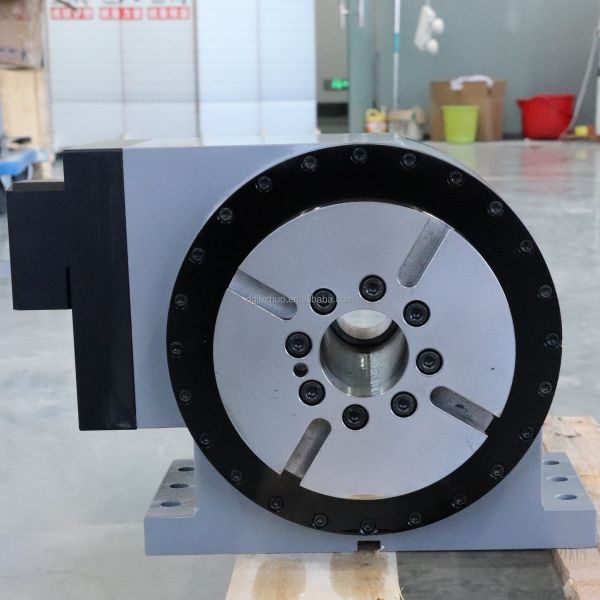

Product Images
