Specifications
Machine Type :
Punching Machine, Milling Machine, lathe machine, Grinding Machine, Drilling Machine, Boring Machine, turning machine, shaping machine, planning machine
MOQ :
1
Package :
Wooden Box
Place of Origin :
China
Brand Name :
JuZhuo
weight (kg) :
200
Size :
Customized Size
MOQ :
1
Color :
Custom Color
Products name :
pneumatic rotary table
After Warranty Service :
Video technical support
Usage :
processed products
warranty :
1.5 year
Price :
$3,980
Description
Manual Pneumatic Rotary Table JZ-800
Manual Pneumatic Rotary Table JZ-800 is designed for precision indexing applications in various machining operations.
Application
The JZ-1000 precision indexing rotary table is primarily suitable for various bore hole, milling, grinding machines, and other high-precision processing applications.
Main Features
  • Adopts two-pieces of helical gear coupling for positioning
  • Dividing precision/accuracy can reach up to ±2 seconds
  • Precision not affected by increased usage hours
  • Strong air pressure locking system resistant to heavy cutting
  • Fast rotation and easy operation
  • 360-degree rotation capability
  • Can connect with host machine for milling, cutting, turning, and boring operations
  • Multiple processes (milling, boring, drilling, countersinking, reaming, tapering) possible with single fixture
Technical Parameters
Pneumatic Rotary Table JZ-800 Manufacturer
Specifications/Model JZ-450 JZ-600 JZ-800 JZ-1000
Table size (Length×Width) mm 450×450 600×600 800×800 1000×1000
Total Thickness/height (mm) 170 200 280 300
Diameter of center hole (mm) Ø30 Ø40 Ø60 Ø60
Milling T-slots (mm) 18 20 22 22
The direction of rotates Clockwise and Counter-clockwise rotating
The tightness of Table 5 5 8 8
Drive Lock/loosen - Air pressure supply 5~8 kg/square Centimeter
Rotation Manual
Minimum Division (Degree) 1 or 5 degree
Division accuracy/precision ±2 seconds
Vertical Load (Theory) 2400 3400 4500 6000
Allowable load (practical) 1000 2000 3000 4000
Locked-in stress 2200 3200 5400 5400
Weight 220 420 900 1200

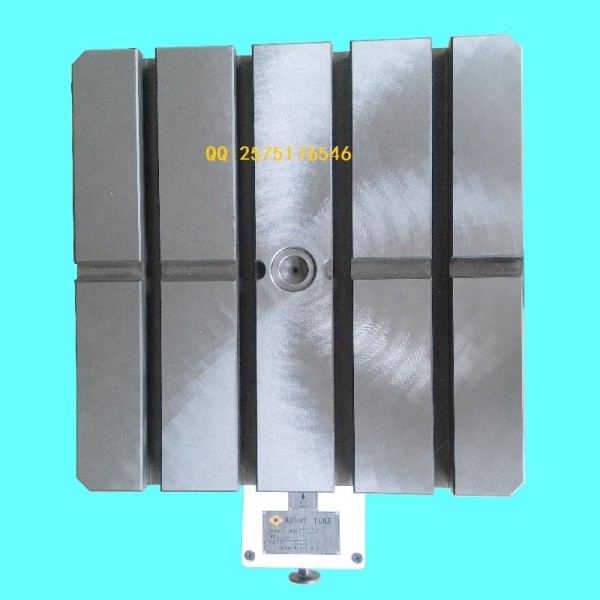

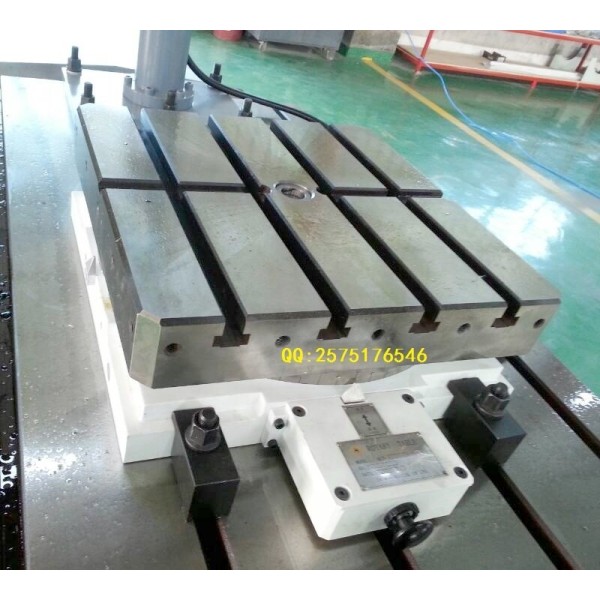

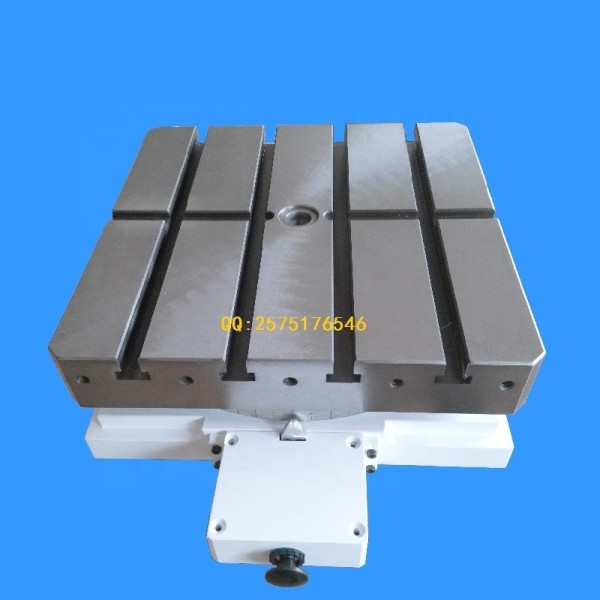

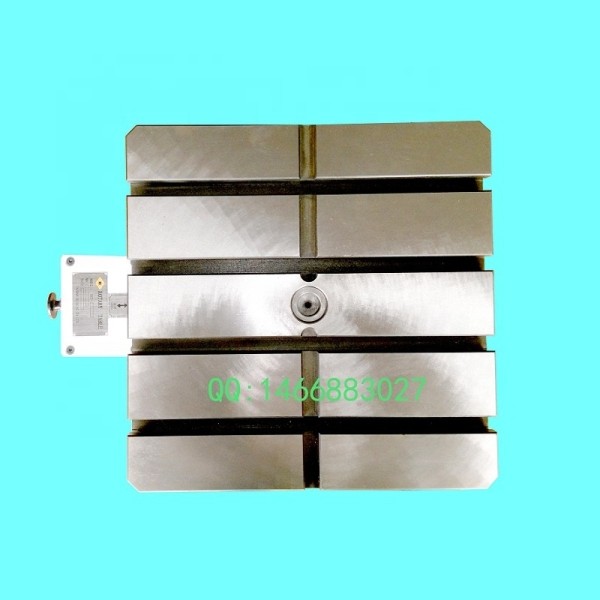

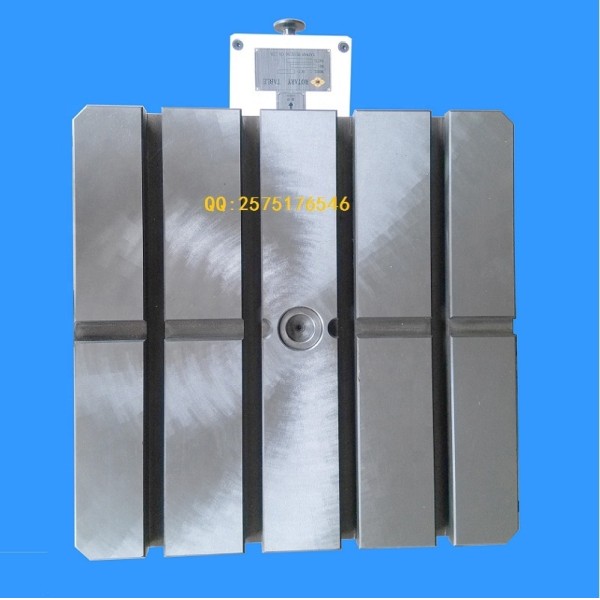

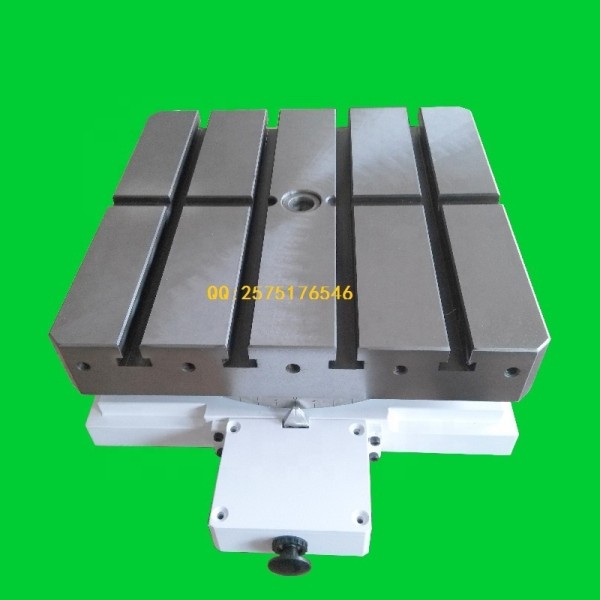

Product Images
Pneumatic Rotary Table JZ-800 Manufacturer Pneumatic Rotary Table JZ-800 Manufacturer Pneumatic Rotary Table JZ-800 Manufacturer Pneumatic Rotary Table JZ-800 Manufacturer Pneumatic Rotary Table JZ-800 Manufacturer Pneumatic Rotary Table JZ-800 Manufacturer Pneumatic Rotary Table JZ-800 Manufacturer Pneumatic Rotary Table JZ-800 Manufacturer
