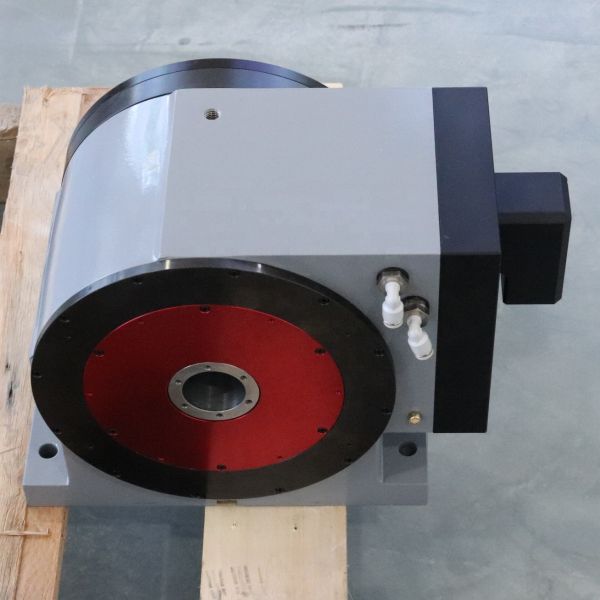

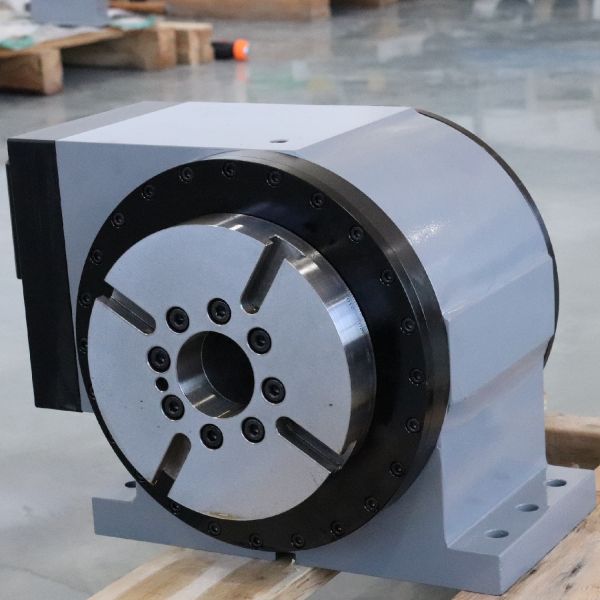

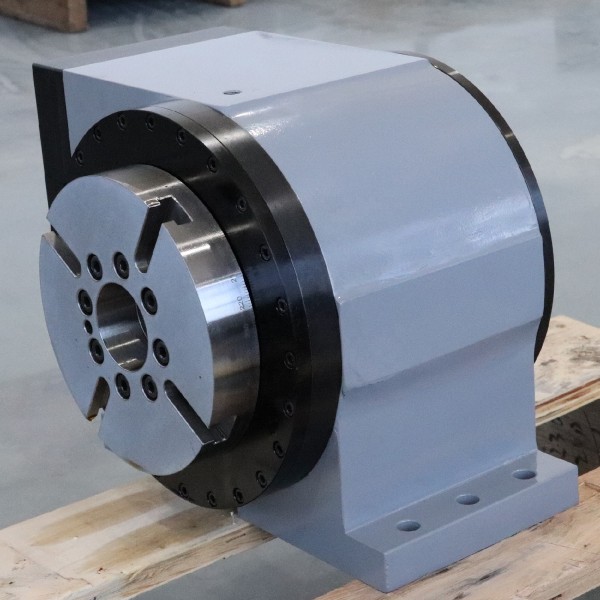

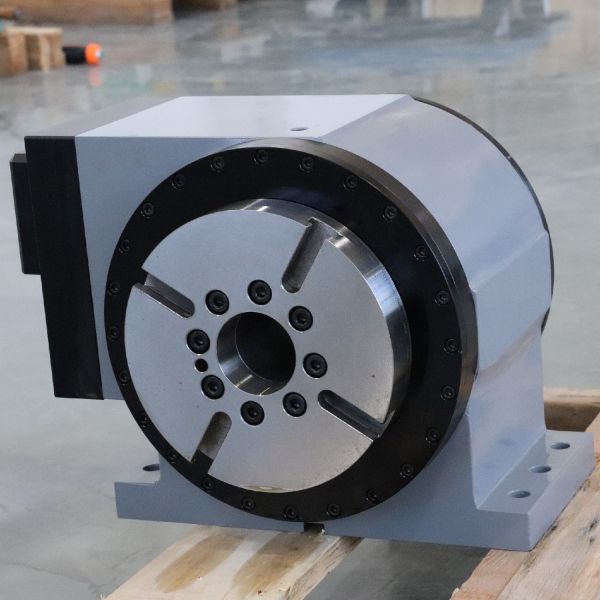

Fourth Axis Rotary Table CNC Horizontal Precision Rotary Table For Milling Machine
Fourth Axis Rotary Table CNC Horizontal Precision Rotary Table For Milling Machine
Fourth Axis Rotary Table CNC Horizontal Precision Rotary Table For Milling Machine
Fourth Axis Rotary Table CNC Horizontal Precision Rotary Table For Milling Machine
Fourth Axis Rotary Table CNC Horizontal Precision Rotary Table For Milling Machine
Fourth Axis Rotary Table CNC Horizontal Precision Rotary Table For Milling Machine
Fourth Axis Rotary Table CNC Horizontal Precision Rotary Table For Milling Machine
Fourth Axis Rotary Table CNC Horizontal Precision Rotary Table For Milling Machine
Fourth Axis Rotary Table CNC Horizontal Precision Rotary Table For Milling Machine
Fourth Axis Rotary Table CNC Horizontal Precision Rotary Table For Milling Machine
Fourth Axis Rotary Table CNC Horizontal Precision Rotary Table For Milling Machine
Fourth Axis Rotary Table CNC Horizontal Precision Rotary Table For Milling Machine
Specifications
warranty :
3 Years
Axis Orientation :
Horizontal
Brand Name :
Juzhuo
machinery test report :
Provided
weight (kg) :
80
Model :
DAR-170
center height :
135mm
Machine Type :
CNC rotary table, Direct-drive 4axis rotary table
brake torque :
150N.M
Table loading capacity :
50kg
T-slot size :
12H8
IP Rating :
IP65
Table diameter :
170
Place of Origin :
Guangdong, China
video outgoing-inspection :
Provided
Products name :
Fourth Axis Rotary Table
MOQ :
1
Description
Direct Drive for the Fourth Axis of the CNC Milling Machine DD Motor Rotary Table

Direct-drive Torque Motor 4th Axis Rotary Table featuring high-performance DD motor technology designed for CNC milling applications.

Key Features
  • Adopts a direct-drive motor with high acceleration, high torque, high precision, and zero backlash
  • Built-in pneumatic power brake system
  • The rotary axis uses large-bore, high-rigidity bearings
  • Suitable for high-speed indexing processing of blades, medical instrument parts, 3C product parts, etc.
Technical Specifications (Model: DAR-170)
Item/Model Unit Specifications
Table Diameter mm 170
Center Height mm 135
T-slot Size - 12H8
Table Load Capacity kg 50
Axis Orientation - Horizontal
Hollow Bore Diameter mm 40
Max. Rotary Table Speed r/min 200
Motor Rated Torque N*m 65
Motor Peak Torque N*m 309
Brake Torque N*m 150
IP Rating - IP65
Motor Cooling - Natural Cooling
Cable Outlet Type - Aviation Plug
Overall Weight kg 48
