Hollow Shaft Direct Drive CNC Rotary Table
Hollow Shaft Direct Drive CNC Rotary Table
Hollow Shaft Direct Drive CNC Rotary Table
Hollow Shaft Direct Drive CNC Rotary Table
Hollow Shaft Direct Drive CNC Rotary Table
Hollow Shaft Direct Drive CNC Rotary Table
Hollow Shaft Direct Drive CNC Rotary Table
Hollow Shaft Direct Drive CNC Rotary Table
Hollow Shaft Direct Drive CNC Rotary Table
Hollow Shaft Direct Drive CNC Rotary Table
Specifications
Machine Type :
CNC rotary table, Direct-drive 4axis rotary table
Table diameter :
170
machinery test report :
Provided
Warranty :
3 Years
MOQ :
1
weight (kg) :
80
Table loading capacity :
50kg
center height :
135mm
Model :
DAR-170
brake torque :
150N.M
Brand Name :
Juzhuo
Axis Orientation :
Horizontal
T-slot size :
12H8
Place of Origin :
Guangdong, China
IP Rating :
IP65
video outgoing-inspection :
Provided
Products name :
CNC Rotary Table
Description
Hollow Shaft Direct-drive DDR 4th Axis Rotary Table
Product Overview

Direct-drive Torque Motor 4th Axis Rotary Table DDR Rotary Table with hollow shaft design for precision manufacturing applications.

Key Features
  • Adopts a direct-drive motor with high acceleration, high torque, high precision, and zero backlash
  • Built-in pneumatic power brake system
  • The rotary axis uses large-bore, high-rigidity bearings
  • Suitable for high-speed indexing processing of blades, medical instrument parts, 3C product parts, etc.
Technical Specifications (Model: DAR-170)
Item/Model Unit Specifications
Table Diameter mm 170
Center Height mm 135
T-slot Size - 12H8
Table Load Capacity kg 50
Axis Orientation - Horizontal
Hollow Bore Diameter mm 40
Max. Rotary Table Speed r/min 200
Motor Rated Torque N*m 65
Motor Peak Torque N*m 309
Brake Torque N*m 150
IP Rating - IP65
Motor Cooling - Natural Cooling
Cable Outlet Type - Aviation Plug
Overall Weight kg 48

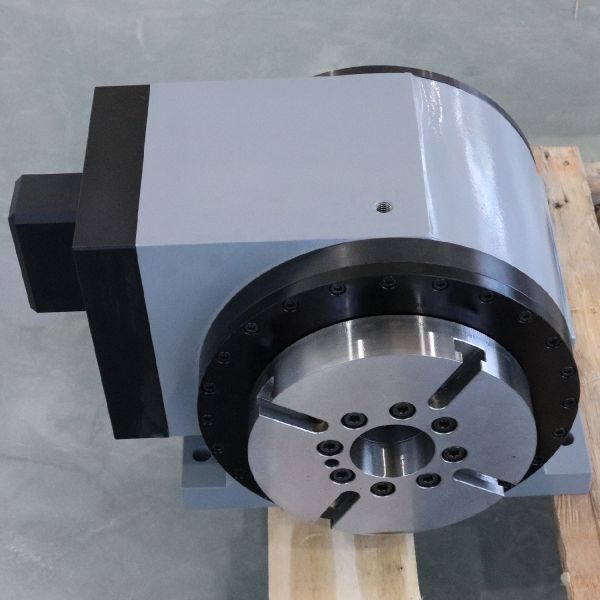

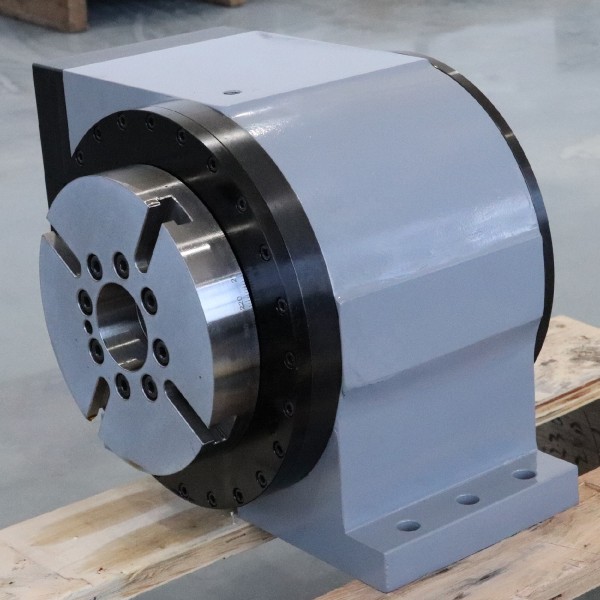

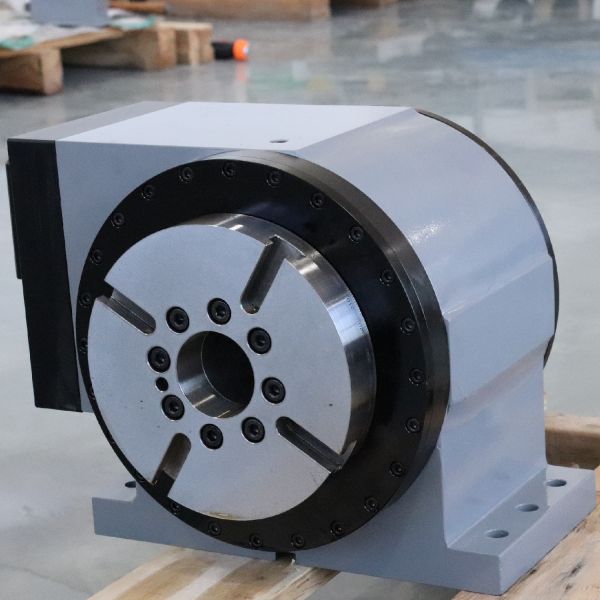

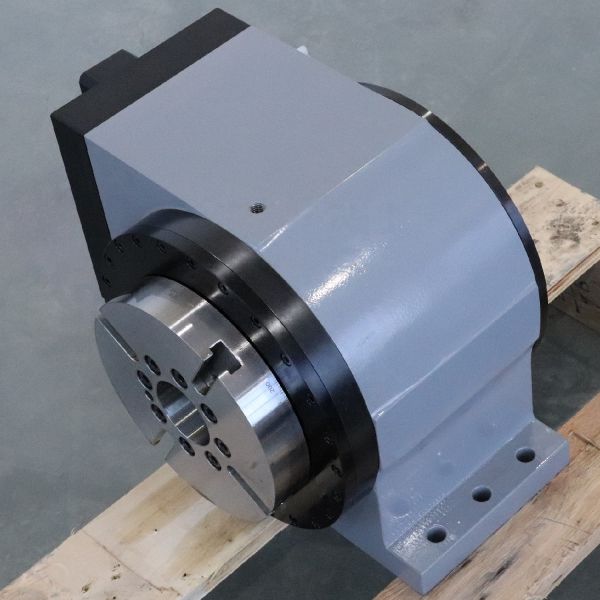

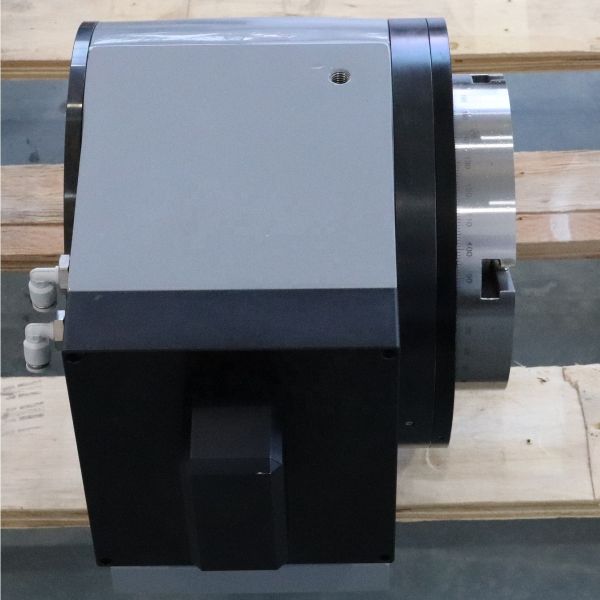

Product Images
Hollow Shaft Direct Drive CNC Rotary Table Hollow Shaft Direct Drive CNC Rotary Table Hollow Shaft Direct Drive CNC Rotary Table Hollow Shaft Direct Drive CNC Rotary Table Hollow Shaft Direct Drive CNC Rotary Table Hollow Shaft Direct Drive CNC Rotary Table Hollow Shaft Direct Drive CNC Rotary Table Hollow Shaft Direct Drive CNC Rotary Table Hollow Shaft Direct Drive CNC Rotary Table Hollow Shaft Direct Drive CNC Rotary Table Hollow Shaft Direct Drive CNC Rotary Table
