Specifications
weight (kg) :
80
Machine Type :
CNC rotary table, Direct-drive 4axis rotary table
brake torque :
150N.M
Table loading capacity :
50kg
T-slot size :
12H8
IP Rating :
IP65
Model :
DAR-170
center height :
135mm
Brand Name :
Juzhuo
warranty :
3 Years
Axis Orientation :
Horizontal
Table diameter :
170
Place of Origin :
Guangdong, China
machinery test report :
Provided
MOQ :
1
video outgoing-inspection :
Provided
Products name :
Direct Drive Rotary Table
Description
Direct Drive 4th Axis Rotary Table for Machining Center
Direct-drive Torque Motor 4th Axis Rotary Table designed for precision machining applications. This high-performance rotary table offers exceptional accuracy and reliability for demanding manufacturing environments.
Key Features
  • Adopts a direct-drive motor with high acceleration, high torque, high precision, and zero backlash
  • Built-in pneumatic power brake system
  • The rotary axis uses large-bore, high-rigidity bearings
  • Suitable for high-speed indexing processing of blades, medical instrument parts, 3C product parts, and more
Technical Specifications (Model: DAR-170)
Item/Model Unit Specifications
Table Diameter mm 170
Center Height mm 135
T-slot Size - 12H8
Table Load Capacity kg 50
Axis Orientation - Horizontal
Hollow Bore Diameter mm 40
Max. Rotary Table Speed r/min 200
Motor Rated Torque N*m 65
Motor Peak Torque N*m 309
Brake Torque N*m 150
IP Rating - IP65
Motor Cooling - Natural Cooling
Cable Outlet Type - Aviation Plug
Overall Weight kg 48

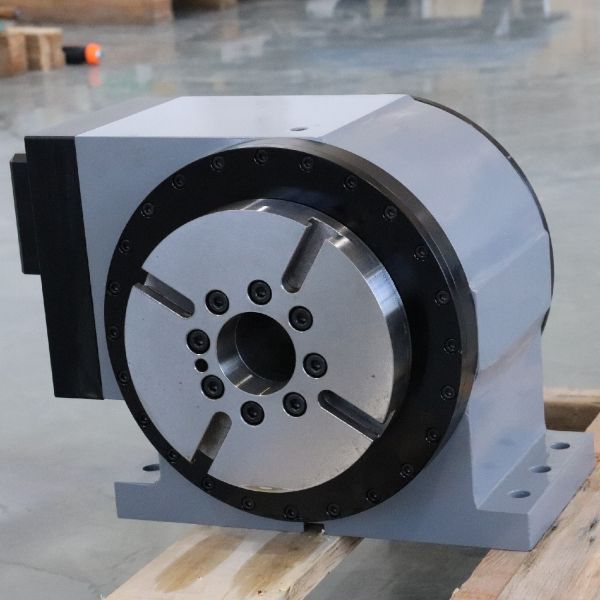

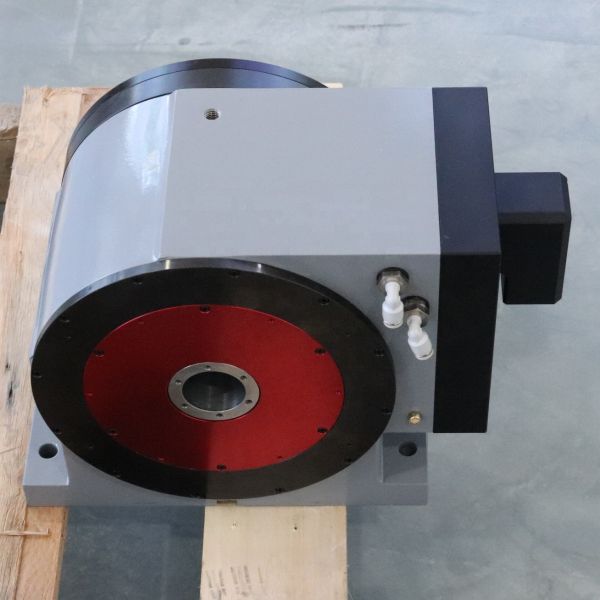

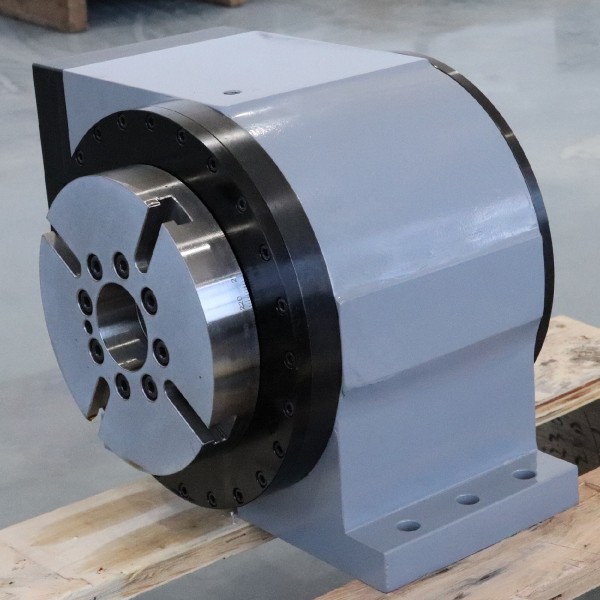

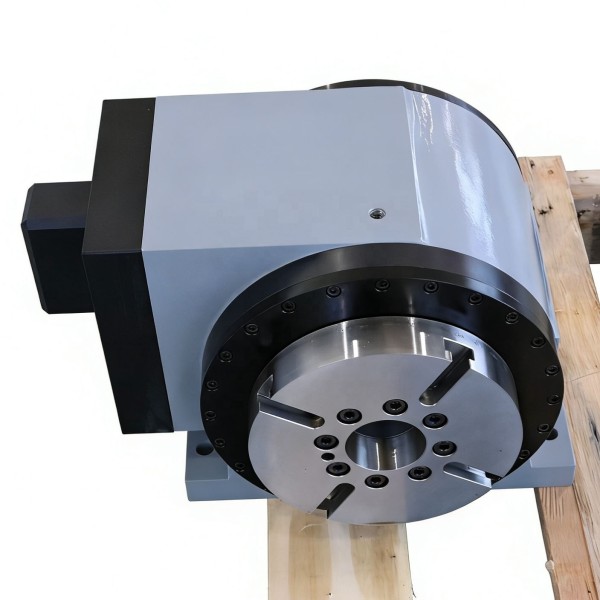

Product Images
Horizontal Direct Drive Rotary Table 4th Axis For Machining Center Horizontal Direct Drive Rotary Table 4th Axis For Machining Center Horizontal Direct Drive Rotary Table 4th Axis For Machining Center Horizontal Direct Drive Rotary Table 4th Axis For Machining Center Horizontal Direct Drive Rotary Table 4th Axis For Machining Center Horizontal Direct Drive Rotary Table 4th Axis For Machining Center Horizontal Direct Drive Rotary Table 4th Axis For Machining Center Horizontal Direct Drive Rotary Table 4th Axis For Machining Center Horizontal Direct Drive Rotary Table 4th Axis For Machining Center Horizontal Direct Drive Rotary Table 4th Axis For Machining Center Horizontal Direct Drive Rotary Table 4th Axis For Machining Center
