Specifications
weight (kg) :
80
Axis Orientation :
Horizontal
Model :
DAR-170
Brand Name :
Juzhuo
IP Rating :
IP65
Table loading capacity :
50kg
center height :
135mm
Machine Type :
CNC rotary table, Direct-drive 4axis rotary table
brake torque :
150N.M
MOQ :
1
warranty :
3 Years
Table diameter :
170
machinery test report :
Provided
T-slot size :
12H8
video outgoing-inspection :
Provided
Place of Origin :
Guangdong, China
Products name :
Index Rotary Table
Description
High Positioning Accuracy Direct-drive Index Rotary Table
Direct-drive Torque Motor 4th Axis Rotary Table for selection, maintenance, and modification. High positioning accuracy direct-drive index rotary table designed for precision manufacturing applications.
Key Features
  • Adopts a direct-drive motor with high acceleration, high torque, high precision, and zero backlash
  • Built-in pneumatic power brake system
  • The rotary axis uses large-bore, high-rigidity bearings
  • Suitable for high-speed indexing processing of blades, medical instrument parts, 3C product parts, and more
Technical Specifications (Model: DAR-170)
Item/Model Unit Specifications
Table Diameter mm 170
Center Height mm 135
T-slot Size - 12H8
Table Load Capacity kg 50
Axis Orientation - Horizontal
Hollow Bore Diameter mm 40
Max. Rotary Table Speed r/min 200
Motor Rated Torque N*m 65
Motor Peak Torque N*m 309
Brake Torque N*m 150
IP Rating - IP65
Motor Cooling - Natural Cooling
Cable Outlet Type - Aviation Plug
Overall Weight kg 48

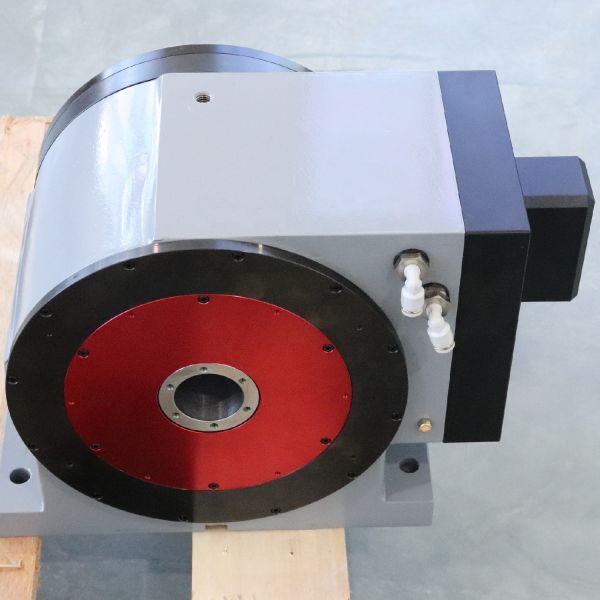

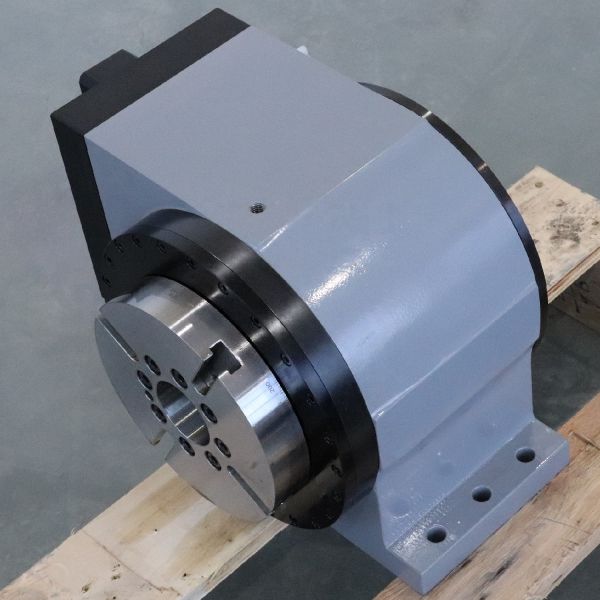

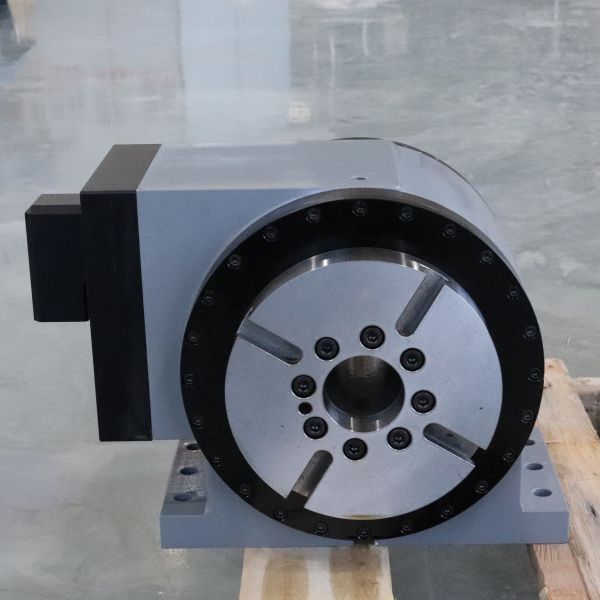

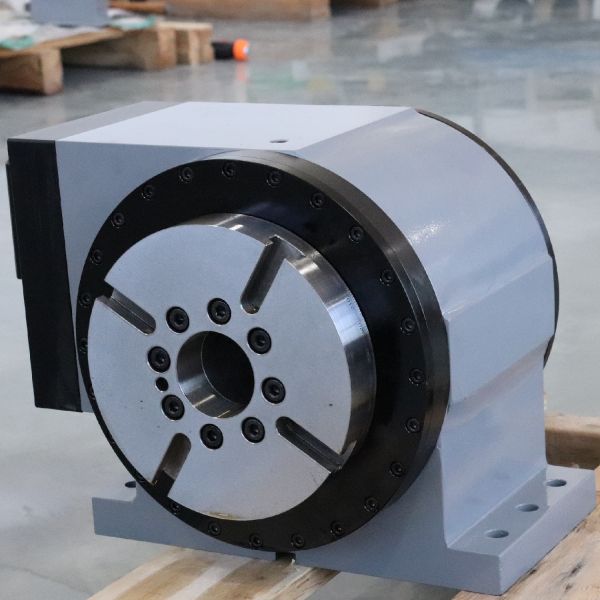

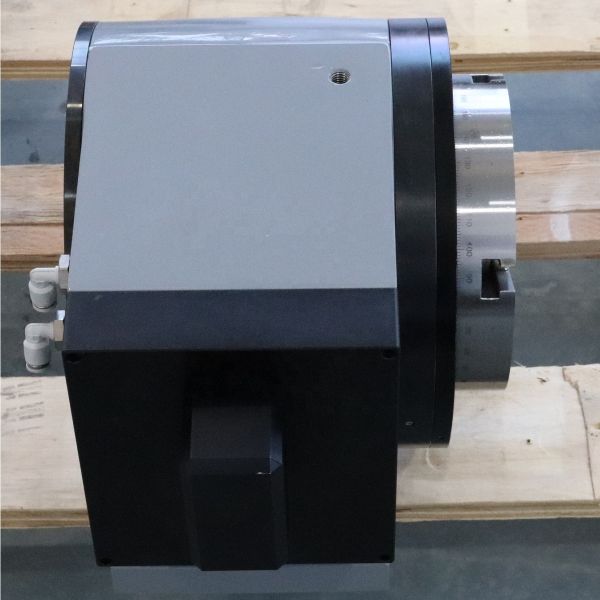

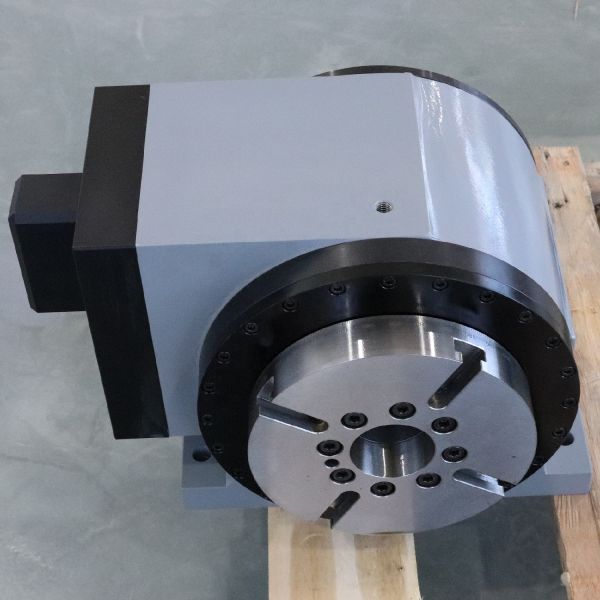

Product Images
High Positioning Accuracy Direct Drive Index Rotary Table 4th Axis High Positioning Accuracy Direct Drive Index Rotary Table 4th Axis High Positioning Accuracy Direct Drive Index Rotary Table 4th Axis High Positioning Accuracy Direct Drive Index Rotary Table 4th Axis High Positioning Accuracy Direct Drive Index Rotary Table 4th Axis High Positioning Accuracy Direct Drive Index Rotary Table 4th Axis High Positioning Accuracy Direct Drive Index Rotary Table 4th Axis High Positioning Accuracy Direct Drive Index Rotary Table 4th Axis High Positioning Accuracy Direct Drive Index Rotary Table 4th Axis High Positioning Accuracy Direct Drive Index Rotary Table 4th Axis High Positioning Accuracy Direct Drive Index Rotary Table 4th Axis
