Hydraulic 5 Axis CNC Rotary Table NCT-200
Hydraulic 5 Axis CNC Rotary Table NCT-200
Hydraulic 5 Axis CNC Rotary Table NCT-200
Hydraulic 5 Axis CNC Rotary Table NCT-200
Hydraulic 5 Axis CNC Rotary Table NCT-200
Hydraulic 5 Axis CNC Rotary Table NCT-200
Hydraulic 5 Axis CNC Rotary Table NCT-200
Hydraulic 5 Axis CNC Rotary Table NCT-200
Hydraulic 5 Axis CNC Rotary Table NCT-200
Hydraulic 5 Axis CNC Rotary Table NCT-200
Hydraulic 5 Axis CNC Rotary Table NCT-200
Hydraulic 5 Axis CNC Rotary Table NCT-200
Specifications
Precision :
15~20Second
machinery test report :
Provided
material :
steel
video outgoing-inspection :
Provided
Machine Type :
Punching Machine, Milling Machine, lathe machine, Grinding Machine, Drilling Machine, Boring Machine, turning machine, shaping machine, planning machine
MOQ :
1
weight (kg) :
150
warranty :
3 Years
Allowable workpiece Diameter(mm) :
320
Brand Name :
Juzhuo
Brand :
JUZHUO
Rotary Table Diameter :
200
Hole Diameter(mm) :
50
usage :
milling or drilling machine
Place of Origin :
Guangdong, China
repeat positioning accuracy :
4second
Center Bore Diameter(mm) :
50H7
Through-Hole Diameter(mm) :
50(Optional)
Description
Rotary Table 4th and 5th Axis Index Table Cnc Milling Machine Use Hydraulic Rotary Table NCT-200
Rotary table 4th and 5th axis index table CNC milling machine use hydraulic rotary table NCT-200
Product Characteristics
  • High Precision Roller Cam unit
  • Heavy Duty Oil Hydraulic Lock system
  • YRT Radial bearings, Heavy cutting resistance
  • Large aperture
  • High Rigidity
  • CNC indexable rotary table

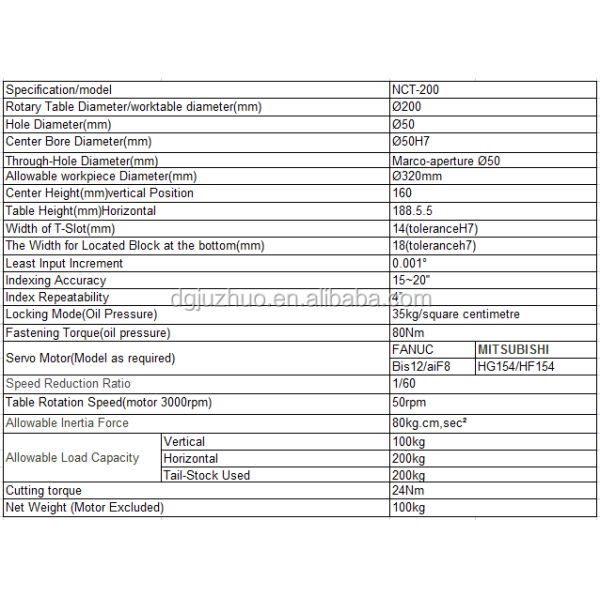

Technical Parameters
Hydraulic 5 Axis CNC Rotary Table NCT-200 Hydraulic 5 Axis CNC Rotary Table NCT-200 Hydraulic 5 Axis CNC Rotary Table NCT-200 Hydraulic 5 Axis CNC Rotary Table NCT-200 Hydraulic 5 Axis CNC Rotary Table NCT-200 Hydraulic 5 Axis CNC Rotary Table NCT-200 Hydraulic 5 Axis CNC Rotary Table NCT-200 Hydraulic 5 Axis CNC Rotary Table NCT-200 Hydraulic 5 Axis CNC Rotary Table NCT-200 Hydraulic 5 Axis CNC Rotary Table NCT-200 Hydraulic 5 Axis CNC Rotary Table NCT-200 Hydraulic 5 Axis CNC Rotary Table NCT-200 Hydraulic 5 Axis CNC Rotary Table NCT-200 Hydraulic 5 Axis CNC Rotary Table NCT-200
Send your message to this supplier
Send Now

Hydraulic 5 Axis CNC Rotary Table NCT-200

Ask Latest Price
Product Detail
Precision :
15~20Second
machinery test report :
Provided
material :
steel
video outgoing-inspection :
Provided
Machine Type :
Punching Machine, Milling Machine, lathe machine, Grinding Machine, Drilling Machine, Boring Machine, turning machine, shaping machine, planning machine
MOQ :
1
Contact Supplier
Hydraulic 5 Axis CNC Rotary Table NCT-200
Hydraulic 5 Axis CNC Rotary Table NCT-200
Hydraulic 5 Axis CNC Rotary Table NCT-200
Hydraulic 5 Axis CNC Rotary Table NCT-200
Hydraulic 5 Axis CNC Rotary Table NCT-200
Hydraulic 5 Axis CNC Rotary Table NCT-200

Dongguan Juzhuo Precision Machinery Co., Ltd.

Verified Supplier
1 Years
guangdong, dongguan
Since 2014
Business Type :
Manufacturer, Exporter
Main Products :
CNC Rotary Table, 4th Axis Rotary Table, 5th Axis Rotary Table
Total Annual :
5000000-10000000
Employee Number :
100~200
Certification Level :
Verified Supplier
