Specifications
Brand Name :
JuZhuo
Accuracy :
1degree or5degree
Machine Type :
Punching Machine, Milling Machine, lathe machine, Grinding Machine, Drilling Machine, Boring Machine, turning machine, shaping machine, planning machine
raw material :
stainless steel
color :
white and blue(customized)
Products name :
Rotary Table
video outgoing-inspection :
Provided
Place of Origin :
Taiwan, China
Price :
$3,980
MOQ :
1 Set
Package :
Wooden Case
weight (kg) :
1200
Brand :
JUZHUO,Taiwan core component
machinery test report :
Provided
Application :
Cnc Machining Center etc
MOQ :
1
warranty :
1.5 year
Size :
Customized Size
Description
Division 5 Degree Index Rotary Table JZ-1000
Product Overview

The JZ-1000 Precision Indexing Rotary Table is engineered for high-precision machining applications, suitable for various bore hole, milling, and grinding operations.

Main Features
  • Advanced helical gear coupling system ensures positioning accuracy of ±2 seconds
  • Maintains precision over extended operational periods
  • Robust air pressure locking system withstands heavy cutting operations
  • High-speed rotation with user-friendly operation
  • 360-degree rotation capability for comprehensive workpiece access
  • Seamless integration with host machines for milling, turning, and boring operations
  • Single-fixture processing for milling, boring, drilling, countersinking, reaming, and tapering

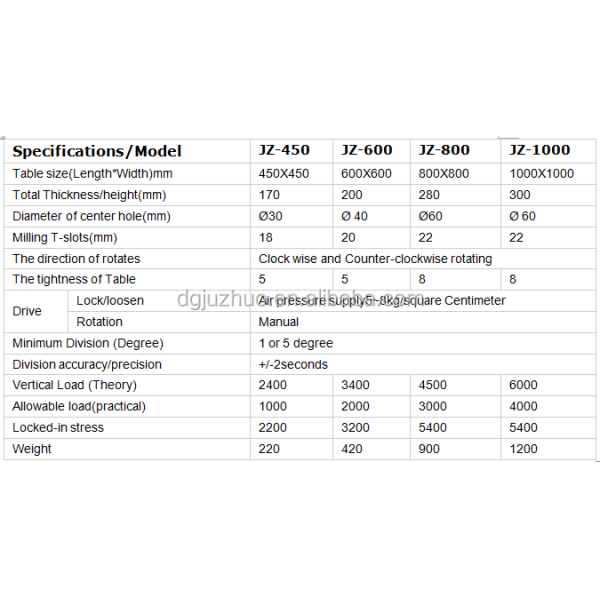

Technical Parameters
Parameter Specification
Model JZ-1000
Indexing Precision ±2 seconds
Rotation Range 360 degrees
Gear System Two-piece helical gear coupling
Locking System Air pressure locking
Compatible Processes Milling, boring, drilling, countersinking, reaming, tapering
Product Images

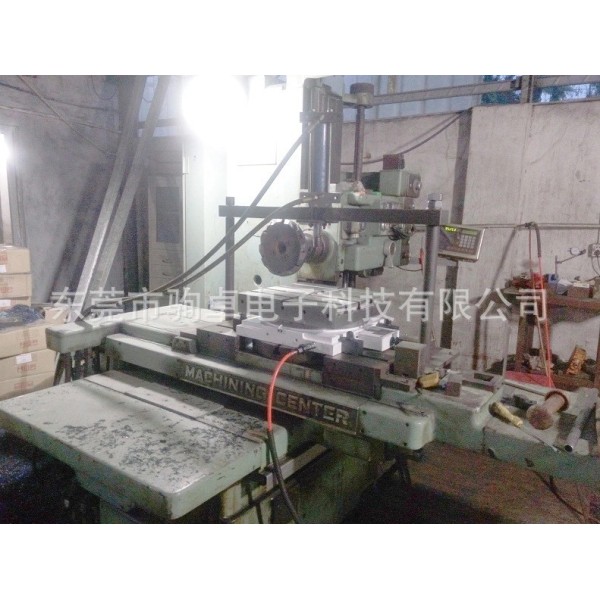

Index Rotary Table JZ-1000 Index Rotary Table JZ-1000 Index Rotary Table JZ-1000 Index Rotary Table JZ-1000 Index Rotary Table JZ-1000 Index Rotary Table JZ-1000 Index Rotary Table JZ-1000 Index Rotary Table JZ-1000 Index Rotary Table JZ-1000
