Direct Drive CNC Rotary Table
Direct Drive CNC Rotary Table
Direct Drive CNC Rotary Table
Direct Drive CNC Rotary Table
Direct Drive CNC Rotary Table
Direct Drive CNC Rotary Table
Direct Drive CNC Rotary Table
Direct Drive CNC Rotary Table
Direct Drive CNC Rotary Table
Direct Drive CNC Rotary Table
Direct Drive CNC Rotary Table
Direct Drive CNC Rotary Table
Specifications
IP Rating :
IP65
Axis Orientation :
Horizontal
Table diameter :
170
Brand Name :
Juzhuo
Model :
DAR-170
video outgoing-inspection :
Provided
Place of Origin :
Guangdong, China
Products name :
4th axis rotary table
center height :
135mm
Table loading capacity :
50kg
MOQ :
1
weight (kg) :
80
warranty :
3 Years
Machine Type :
CNC rotary table, Direct-drive 4axis rotary table
machinery test report :
Provided
brake torque :
150N.M
T-slot size :
12H8
Description

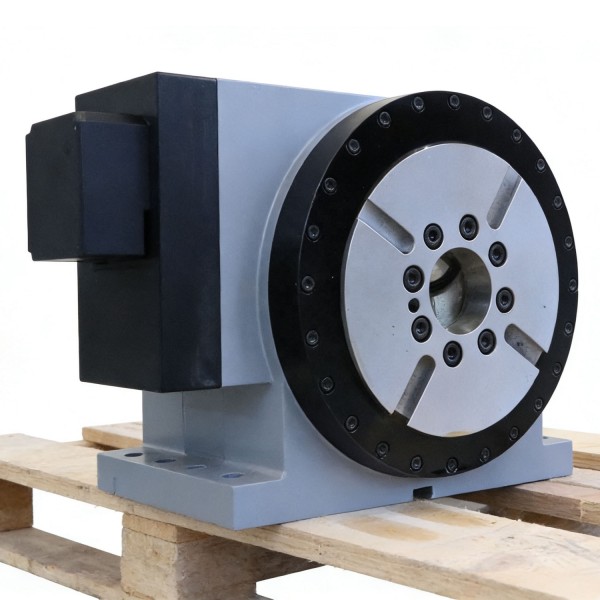

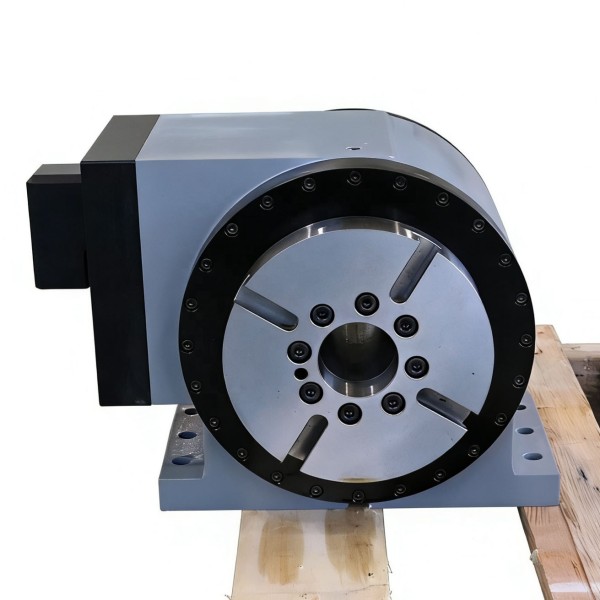

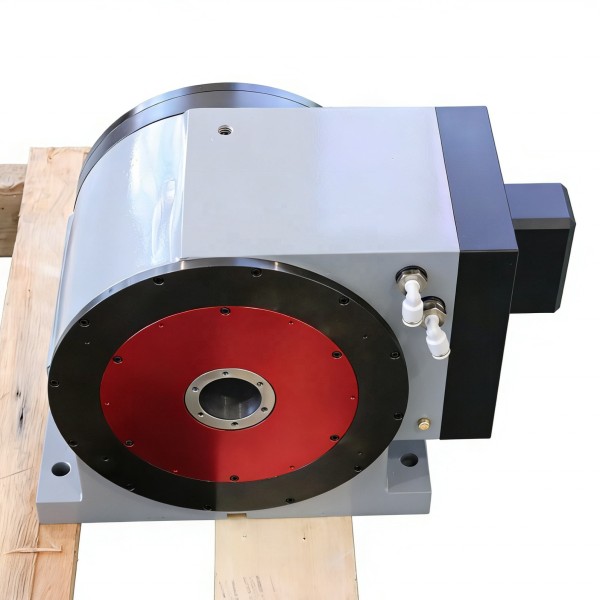

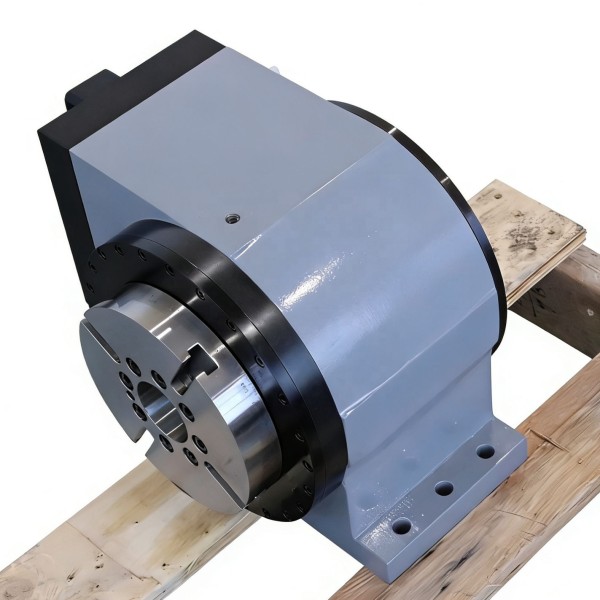

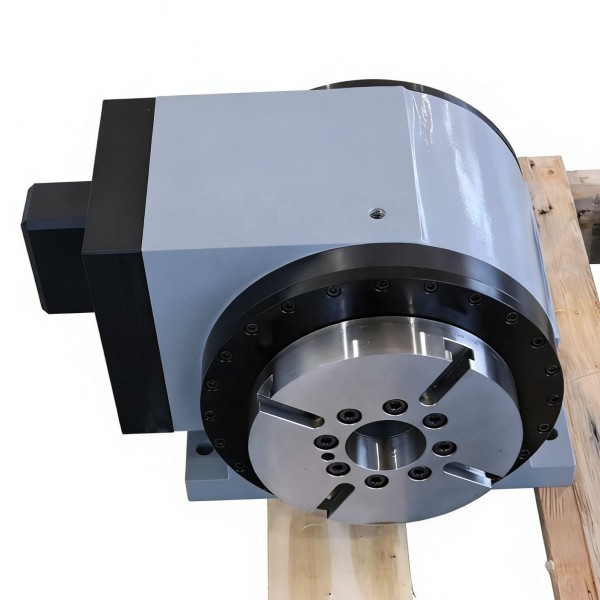

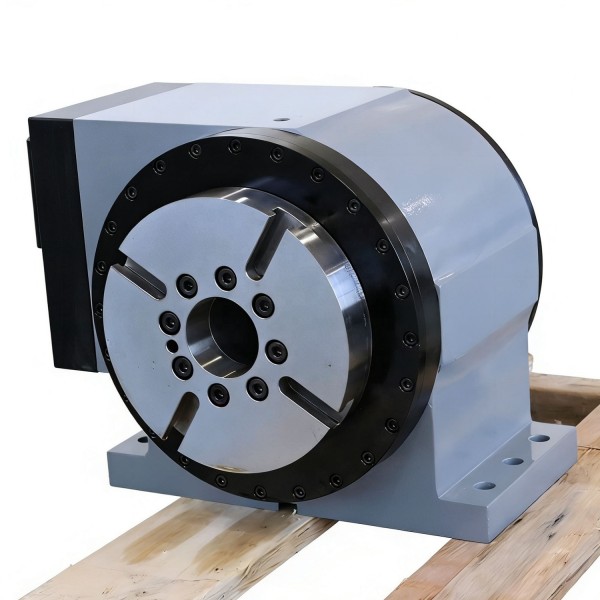

DD Motor Rotary Table
Direct-drive Torque Motor 4th Axis Rotary Table DD Motor Rotary Table
Features
  • Adopts a direct-drive motor with high acceleration, high torque, high precision, and zero backlash
  • Built-in pneumatic power brake system
  • The rotary axis uses large-bore, high-rigidity bearings
  • Suitable for high-speed indexing processing of blades, medical instrument parts, 3C product parts, etc.
Technical Specifications (Model: DAR-170)
Item/Model Unit Specifications
Table Diameter mm 170
Center Height mm 135
T-slot Size - 12H8
Table Load Capacity kg 50
Axis Orientation - Horizontal
Hollow Bore Diameter mm 40
Max. Rotary Table Speed r/min 200
Motor Rated Torque N*m 65
Motor Peak Torque N*m 309
Brake Torque N*m 150
IP Rating - IP65
Motor Cooling - Natural Cooling
Cable Outlet Type - Aviation Plug
Overall Weight kg 48
Product Images
Direct Drive CNC Rotary Table Direct Drive CNC Rotary Table Direct Drive CNC Rotary Table Direct Drive CNC Rotary Table Direct Drive CNC Rotary Table Direct Drive CNC Rotary Table Direct Drive CNC Rotary Table Direct Drive CNC Rotary Table Direct Drive CNC Rotary Table Direct Drive CNC Rotary Table Direct Drive CNC Rotary Table
