Specifications
Dividing accuracy :
15
Center height(mm) :
465
T-slot size (mm) :
8-18H12
video outgoing-inspection :
Provided
Repeatability accuracy :
4
Rotary Table Diameter :
800mm
Brand Name :
Juzhuo
Center through hole :
135(F230)H6
MOQ :
1
Locating key size (mm) :
22mm
Place of Origin :
Guangdong, China
total thickness :
390mm
Worm gear ratio :
1to120
Total reduction ratio :
1to 360
warranty :
3 Years
weight (kg) :
1500
machinery test report :
Provided
Machine Type :
Punching Machine, Milling Machine, lathe machine, Grinding Machine, Drilling Machine, Boring Machine, turning machine, shaping machine, planning machine
Description

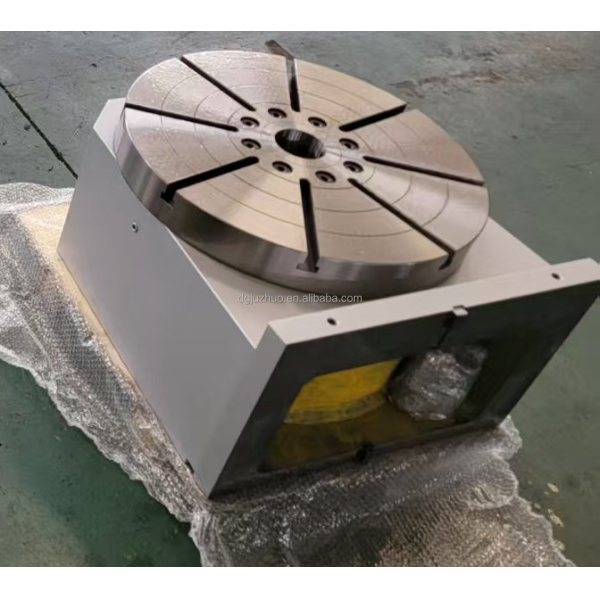

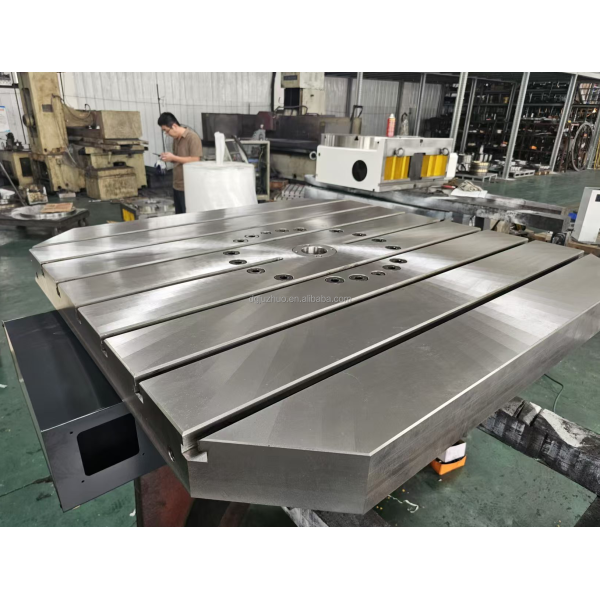

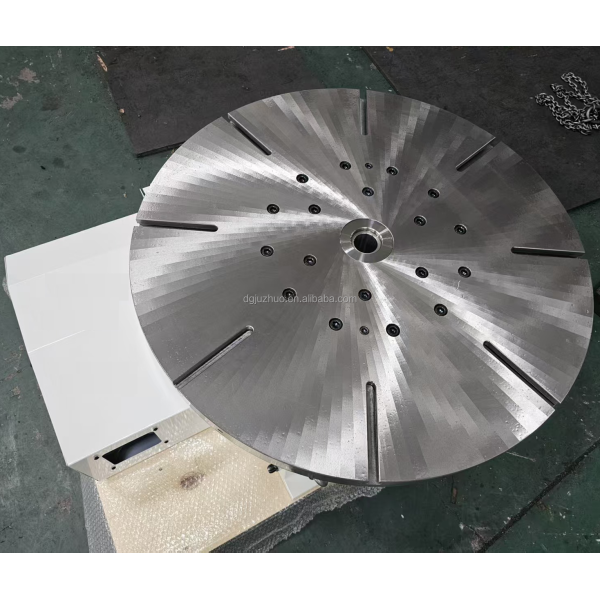

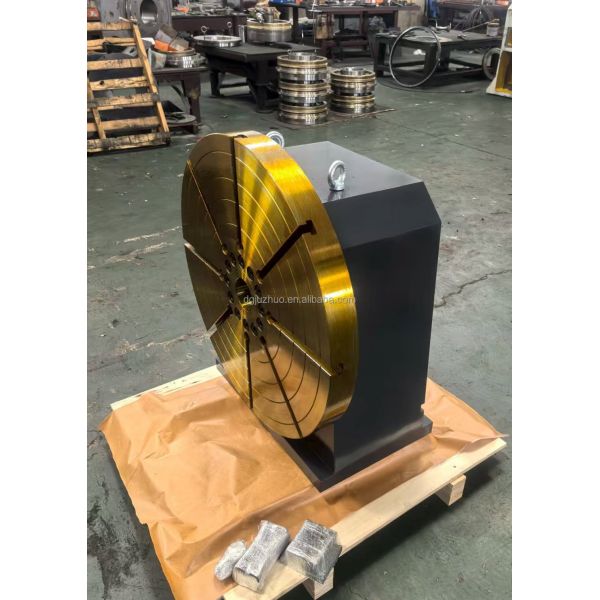

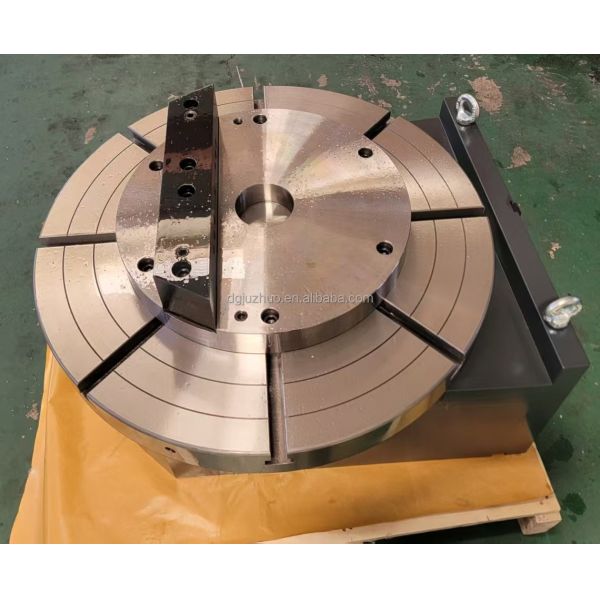

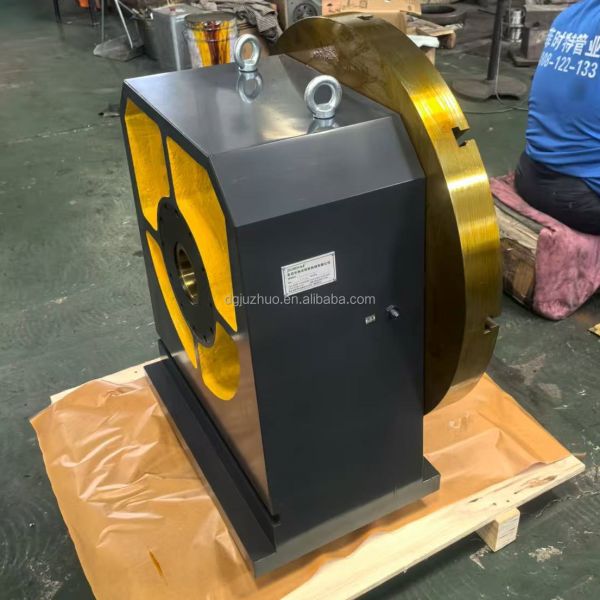

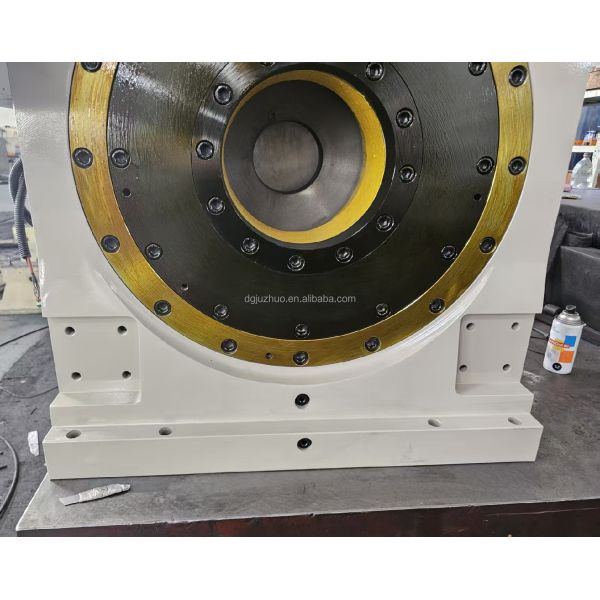

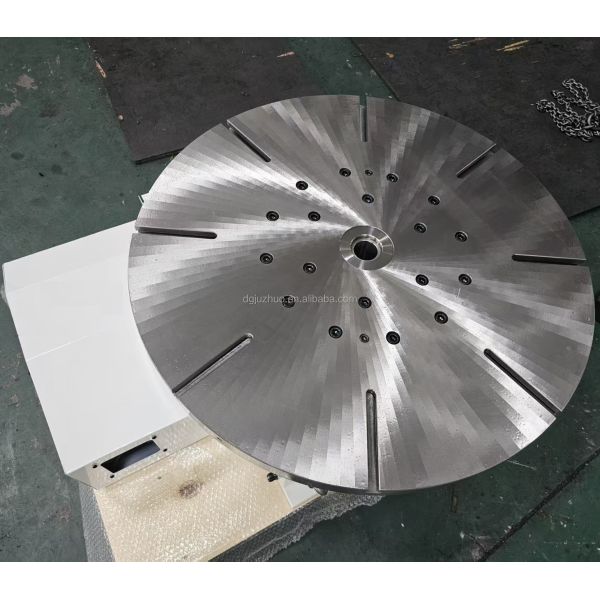

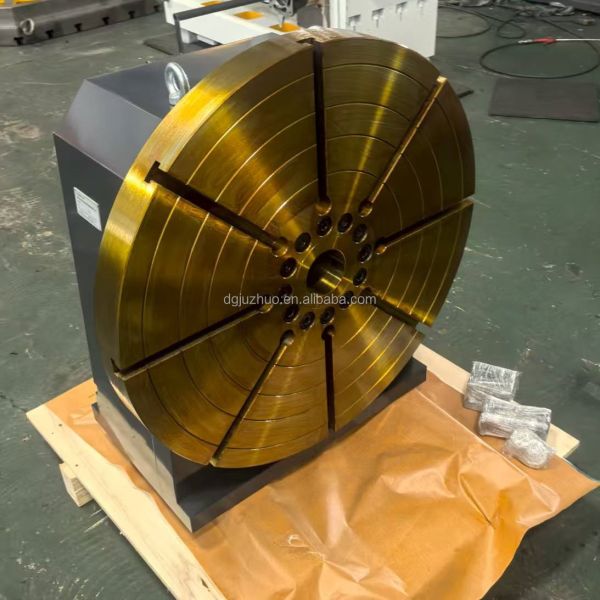

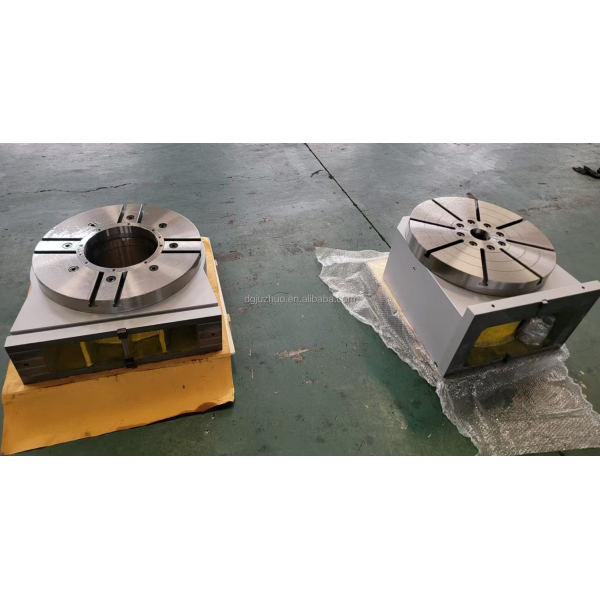

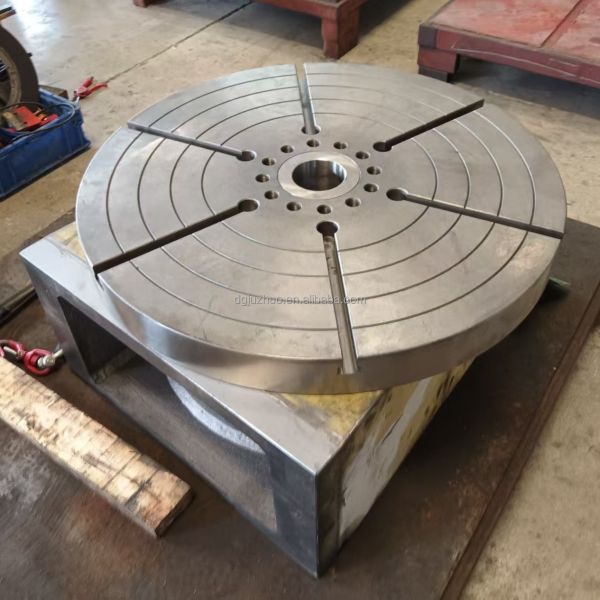

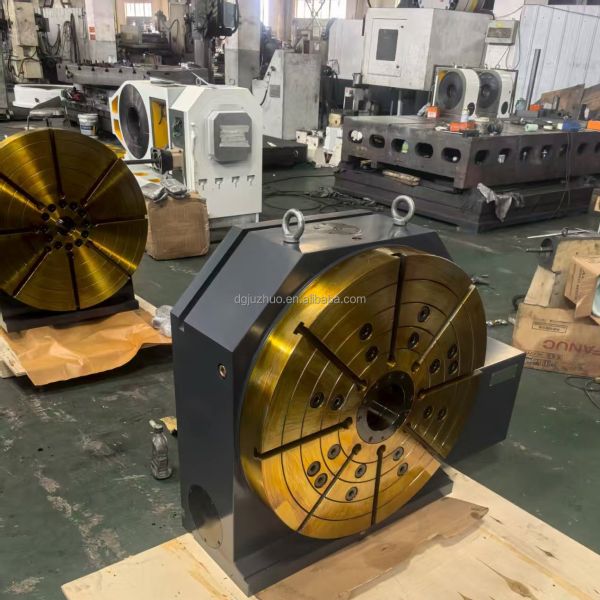

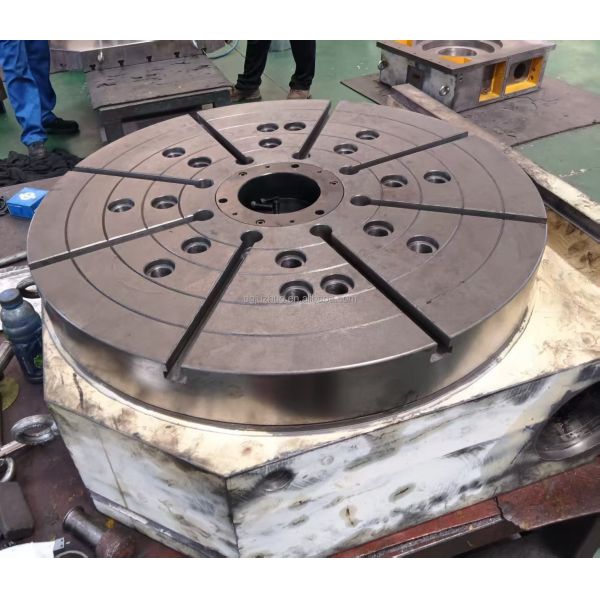

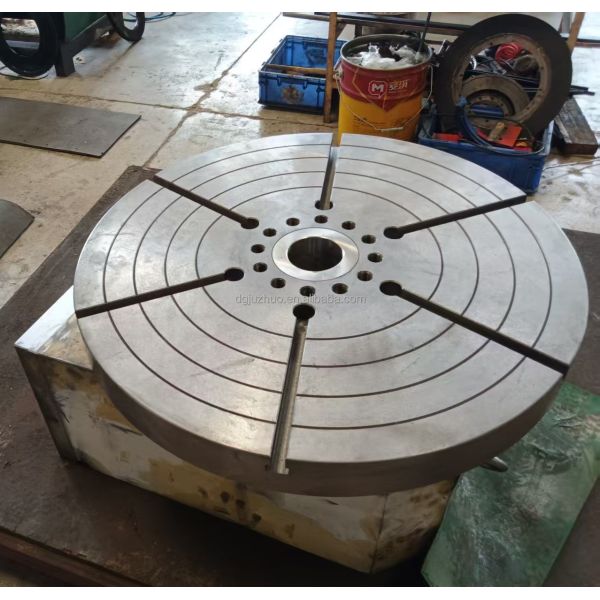

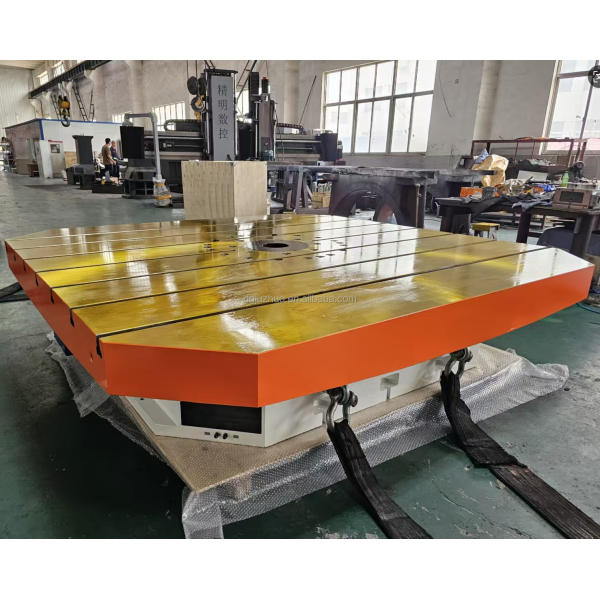

Heavy Cutting Horizontal Vertical Precision Rotary Tables with Tailstock

Model NC-800 worm gear worm wheel structures 4-axis rotary table is a rotational device used in machine tools.

Key Features
  • High transmission ratio: The single-threaded worm gear has a transmission ratio of up to 100:1 or more, making it suitable for scenarios requiring a large reduction ratio.
  • Compact structure: Compared to multi-stage gear transmission, the worm gear and worm wheel structure saves more space.
  • Self-locking property: When the helix angle of the worm is small, it can prevent reverse drive and enhance safety.

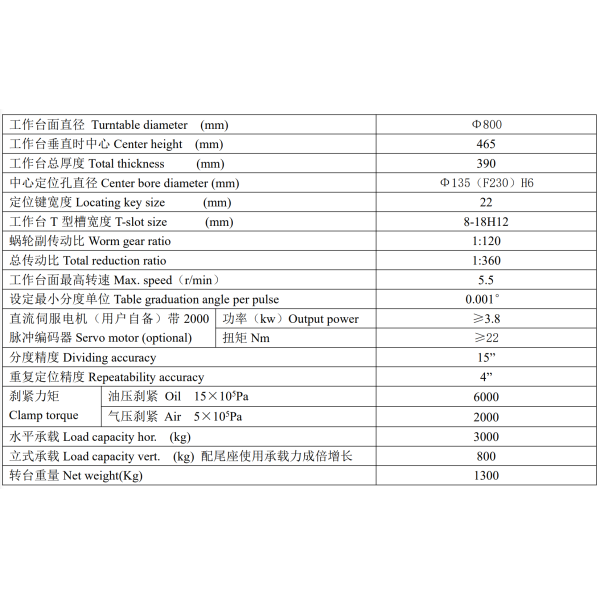

Technical Specifications
