4 Axis CNC Rotary Table NCT-630
4 Axis CNC Rotary Table NCT-630
4 Axis CNC Rotary Table NCT-630
4 Axis CNC Rotary Table NCT-630
4 Axis CNC Rotary Table NCT-630
4 Axis CNC Rotary Table NCT-630
4 Axis CNC Rotary Table NCT-630
4 Axis CNC Rotary Table NCT-630
4 Axis CNC Rotary Table NCT-630
4 Axis CNC Rotary Table NCT-630
4 Axis CNC Rotary Table NCT-630
4 Axis CNC Rotary Table NCT-630
Specifications
Brand :
JUZHUO
video outgoing-inspection :
Provided
Through-Hole Diameter(mm) :
220(Optional)
MOQ :
1
repeat positioning accuracy :
4second
Precision :
15Second
Brand Name :
Juzhuo
Hole Diameter(mm) :
220
usage :
milling or drilling machine
material :
steel
machinery test report :
Provided
Center Bore Diameter(mm) :
220H7
Place of Origin :
Guangdong, China
Rotary Table Diameter :
630
warranty :
3 Years
weight (kg) :
500
Allowable workpiece Diameter(mm) :
730
Machine Type :
CNC machine
Description
Best Selling CNC 4 Axis Rotary Table NCT-630
The NCT-630 CNC 4 Axis Rotary Table is our best-selling model, designed for precision machining applications requiring high accuracy and heavy-duty performance.
Product Characteristics
  • High Precision Roller Cam Unit
  • Heavy Duty Oil Hydraulic Lock System
  • YRT Radial Bearings with Heavy Cutting Resistance
  • Large Aperture Design
  • High Rigidity Construction
  • CNC Indexable Rotary Table

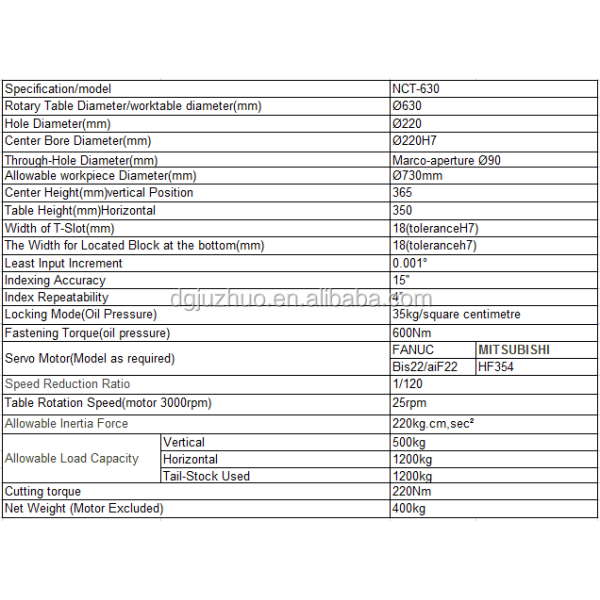

Technical Parameters
4 Axis CNC Rotary Table NCT-630 4 Axis CNC Rotary Table NCT-630 4 Axis CNC Rotary Table NCT-630 4 Axis CNC Rotary Table NCT-630 4 Axis CNC Rotary Table NCT-630 4 Axis CNC Rotary Table NCT-630 4 Axis CNC Rotary Table NCT-630 4 Axis CNC Rotary Table NCT-630 4 Axis CNC Rotary Table NCT-630 4 Axis CNC Rotary Table NCT-630 4 Axis CNC Rotary Table NCT-630 4 Axis CNC Rotary Table NCT-630 4 Axis CNC Rotary Table NCT-630 4 Axis CNC Rotary Table NCT-630
