Specifications
Price :
$25,000
table travel (x) (mm) :
1000x550
MOQ :
1
table travel (z) (mm) :
550mm
weight (t) :
5
no. of spindles :
Single
min. time of tool change(s) :
8000rpm (ring spray)
repeatability (x/y/z) (mm) :
±0.003/300
max. table load(kg) :
600
table travel (y) (mm) :
550mm
Description

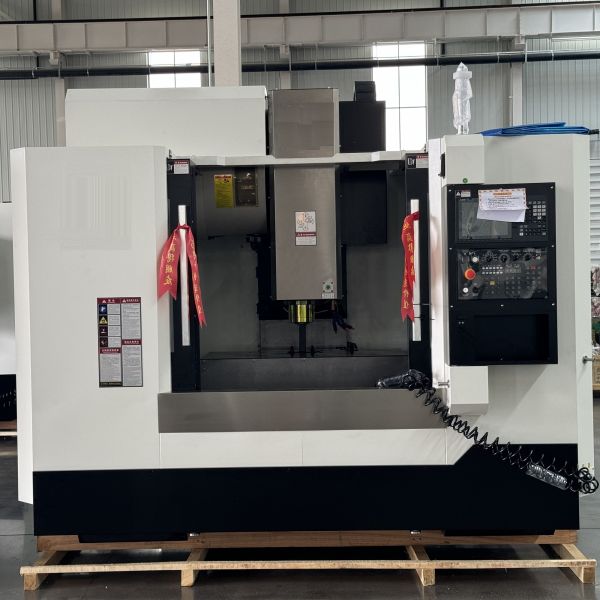

VMC855 Vertical Machining Center
High-performance 4-axis CNC milling machine with advanced features for precision manufacturing applications.
Product Overview
  • X, Y, Z three-axis travel: 800×550×550mm
  • Belt-driven spindle with maximum speed: 8000 RPM (ring spray)
  • Standard 24-tool round automatic tool changer
  • Heavy-duty box-type head structure with reinforced internal ribs
  • Pneumatic spindle punching mechanism for uniform bearing stress
  • Isolated electrical box design with heat exchanger system
  • High-precision screw system with precompression and pretension
  • Roller linear guides on all axes for high rigidity and accuracy
  • Laser positioning correction and comprehensive testing
Technical Specifications
Parameter Unit Specification
Work table dimension mm 1000×550
X/Y/Z axis travels mm 800/550/550
Distance from spindle end face to table mm 120-670
Distance from spindle center to column mm 590
Maximum load of table Kg 600
Table T-slot mm 5-18×90
X/Y/Z axis fast feed m/min 36/36/36
X/Y/Z rail width mm RGH45/45/45 pin roller
Positional accuracy mm ±0.005
Repeat positioning accuracy mm ±0.003/300
Minimum positioning unit mm ±0.001
Maximum spindle speed rpm 8000 (Ring spray)
Main spindle end taper mm BT40-150
Disk manipulator tool library pcs 24T
Control System / Fanuc 0i-MF PLUS
X/Y/Z axis motor power bis12/bis12/bis22B
Spindle motor power BiL8 (7.5-11KW)
Weight Kg 5000
Dimension mm 2600×2400×2650
Standard Configuration
  • Control system: FanUC 0i-MF PLUS latest system
  • Maximum spindle speed: 8000rpm (ring spray)
  • Spindle rotation mode: synchronous belt spindle
  • Spindle taper: BT40/150
  • Travel: 800×550×550mm
  • Taiwan 24 disk manipulator tool library
  • Fast moving speed: 48/48/48m/min
  • Cutting cooling system
  • Automatic lubrication system
  • Cutting and blowing device
  • Explosion-proof working light
  • Three-color alarm light
  • Horizontal adjustment bolts and pads
  • Electrical box radiator
  • Three-axis screw pre-drawing device
  • Program storage
  • Reserve four-axis interfaces
  • Double work light inside sheet metal machine tool
  • Double high pressure pump bottom plate flushing chips
  • Automatic simulation of the program hand wheel
  • Main shaft dust and air curtain protection
  • Cleaning device in the machine: air gun flushing water gun
  • Manual pulse generator: hand wheel
  • Three-axis telescopic protective cover
  • External protection sheet metal
  • Rigid tapping
  • Accuracy inspection certificate
  • Electrical instructions
  • User manual
  • Procedure operation manual
  • Anti-stuck knife gas storage tank
  • Machine tool oil and water separation device
  • Three-axis motor chip protection cover
  • External data transmission interface
  • Double filter rear chip storage tank Schneider Electric of France
