Specifications
Price :
$25,000
warranty :
1 Year
Machine Type :
Drilling Machine
Brand Name :
JUZHUO
weight (kg) :
5000
Place of Origin :
Guangdong, China
machinery test report :
Provided
MOQ :
1
video outgoing-inspection :
Provided
Description

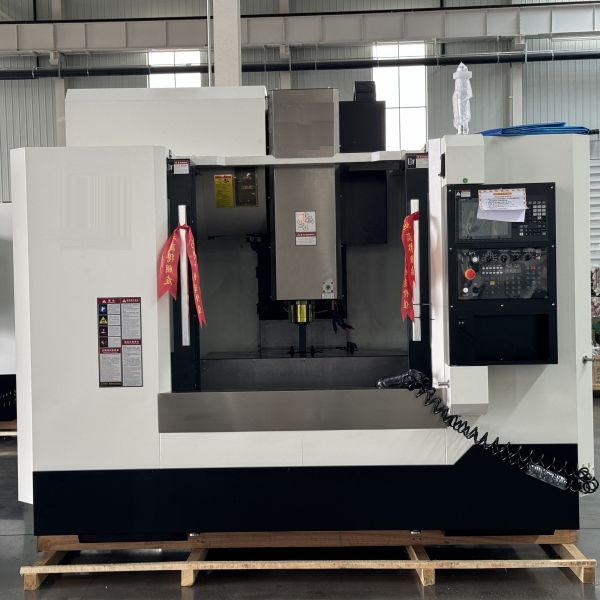

VMC855 Vertical Machining Center
Product Overview

The VMC855 Vertical Machining Center is a high-performance CNC machine featuring the latest Fanuc 0i-MF PLUS control system, designed for precision manufacturing applications.

Key Features
  • Three-axis travel: X: 800mm, Y: 550mm, Z: 550mm
  • Spindle system: Belt-driven with maximum speed of 8000 RPM (ring spray cooling)
  • Tool capacity: 24-position disc-type automatic tool changer

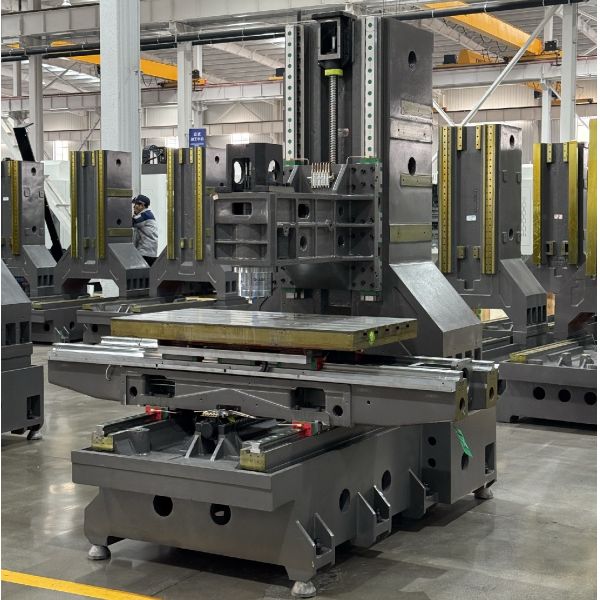

  • Head structure: Heavy-duty box-type design with reinforced internal ribs for high rigidity
  • Spindle clamping: Pneumatic mechanism for uniform stress distribution and extended bearing life
  • Electrical system: Isolated design with heat exchanger and rear fan cooling to prevent dust ingress
  • Precision components: High-precision ball screws with pre-compression nuts and pre-tensioning devices
  • Linear guides: Roller-type linear guides (X, Y, Z axes) for high rigidity, low noise, and fast positioning
  • Quality assurance: Laser positioning calibration and circular testing ensure optimal accuracy and long-term stability
Technical Specifications
Parameter Unit Specification
Work table dimension mm 1000×550
X/Y/Z axis travels mm 800/550/550
Distance from spindle end face to table mm 120-670
Distance from spindle center to column mm 590
Maximum load of table Kg 600
Table T-slot mm 5-18×90
X/Y/Z axis fast feed m/min 36/36/36
X/Y/Z rail width mm RGH45/45/45 pin roller
Positional accuracy mm ±0.005
Repeat positioning accuracy mm ±0.003/300
Minimum positioning unit mm ±0.001
Maximum spindle speed rpm 8000 (Ring spray)
Main spindle end taper mm BT40-150
Disc manipulator tool library pcs 24T
Control System / Fanuc 0i-MF PLUS
X/Y/Z axis motor power bis12/bis12/bis22B
Spindle motor power BiL8 (7.5-11KW)
Weight Kg 5000
Dimension mm 2600×2400×2650
Standard Configuration
Item Configuration
1 Control system: Fanuc 0i-MF PLUS latest system
2 Maximum spindle speed: 8000rpm (ring spray)
3 Spindle rotation mode: synchronous belt spindle
4 Spindle taper: BT40/150
5 Working range: 800×550×550mm
6 Taiwan 24 disc manipulator tool library
7 Fast moving speed: 48/48/48m/min
8 Complete accessory package including cooling system, lubrication system, cutting and blowing device, working lights, alarm lights, adjustment hardware, cooling systems, precision components, and interface options
