Specifications
Price :
$25,000
no. of spindles :
Single
min. time of tool change(s) :
8000rpm (ring spray)
repeatability (x/y/z) (mm) :
±0.003/300
weight (t) :
5
table travel (z) (mm) :
550mm
table travel (x) (mm) :
1000x550
max. table load(kg) :
600
table travel (y) (mm) :
550mm
MOQ :
1
Description

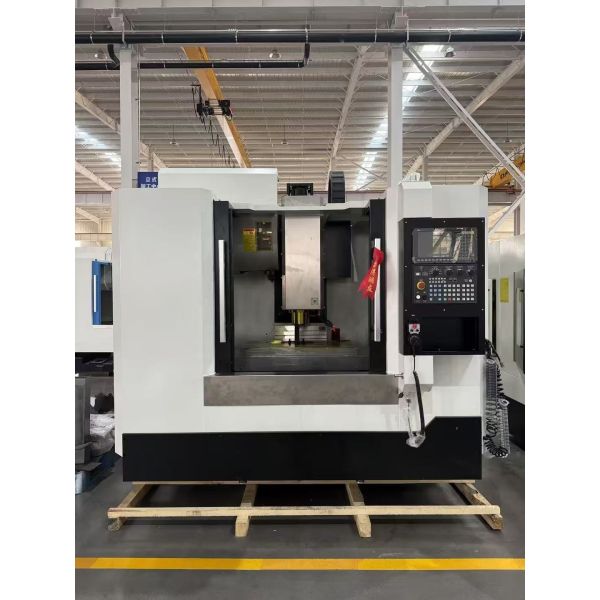

VMC855 CNC Vertical Machining Center
Product Overview

The VMC855 Vertical Machining Center is a high-performance 5-axis CNC milling machine featuring the latest Fanuc 0i-MF PLUS control system, designed for precision manufacturing applications.

Key Features
  • X, Y, Z three-axis travel: 800×550×550mm
  • Belt-driven spindle with maximum speed: 8000 RPM (ring spray cooling)
  • 24-position disc-type automatic tool changer
  • Heavy-duty box-type head structure with reinforced internal ribs for high rigidity
  • Pneumatic spindle punching mechanism for even bearing stress and extended lifespan
  • Isolated electrical box design with heat exchanger and rear fan cooling system
  • High-precision ball screws with pre-compression nuts and pre-tensioning devices
  • Roller linear guides on all axes (6 sliders on Z-axis) for high rigidity and fast positioning
  • Laser positioning correction and circular testing for optimal accuracy
Technical Specifications
Parameter Unit Specification
Work table dimension mm 1000×550
X/Y/Z axis travels mm 800/550/550
Distance from spindle end face to table mm 120-670
Distance from spindle center to column mm 590
Maximum load of table Kg 600
Table T-slot mm 5-18×90
X/Y/Z axis fast feed m/min 36/36/36
X/Y/Z rail width mm RGH45/45/45 pin roller
Positional accuracy mm ±0.005
Repeat positioning accuracy mm ±0.003/300
Minimum positioning unit mm ±0.001
Maximum spindle speed rpm 8000 (Ring spray)
Main spindle end taper mm BT40-150
Disk manipulator tool library pcs 24T
Control System / Fanuc 0i-MF PLUS
X/Y/Z axis motor power bis12/bis12/bis22B
Spindle motor power BiL8 (7.5-11KW)
Weight Kg 5000
Dimension mm 2600×2400×2650
Standard Configuration
  • Control system: Fanuc 0i-MF PLUS latest system
  • Maximum spindle speed: 8000rpm (ring spray)
  • Spindle rotation mode: synchronous belt spindle
  • Spindle taper: BT40/150
  • Working range: 800×550×550mm
  • Taiwan 24-disc manipulator tool library
  • Fast moving speed: 48/48/48m/min
  • Complete accessory package including cooling system, lubrication, chip management, and safety features
  • Schneider Electric components (France)
