Specifications
weight (kg) :
150
vertical loading capacity :
80Kg
MOQ :
1
video outgoing-inspection :
Provided
machinery test report :
Provided
usage :
milling or drilling machine
Place of Origin :
Guangdong, China
Brand Name :
Juzhuo
division precision :
+/-12
warranty :
3 Years
Center height(mm) :
160
Structure :
Worm gear
Center through hole :
50H7
Rotary Table Diameter :
210
Machine Type :
Punching Machine, Milling Machine, lathe machine, Grinding Machine, Drilling Machine, Boring Machine, turning machine, shaping machine, planning machine
material :
steel
Horizontal loading capacity :
180kg
Description
Hot Sale 4-axis Worm Gear CNC Rotary Table Use D-210
Hot Sale Worm Gear 4-axis CNC rotary table D-210
Product Characteristics
  • This 4-axis CNC rotary table uses imported precision dual-lead worm and turbine components
  • Turbine is manufactured with aluminum bronze alloy, ensuring high precision transmission and positioning accuracy
  • Turbine size is nearly the same as the disc size, with steel rigidity 30-50% better than similar products
  • Features cross roller bearings that improve rotation accuracy and rigidity
  • Designed for long-term processing operations without producing defective workpieces

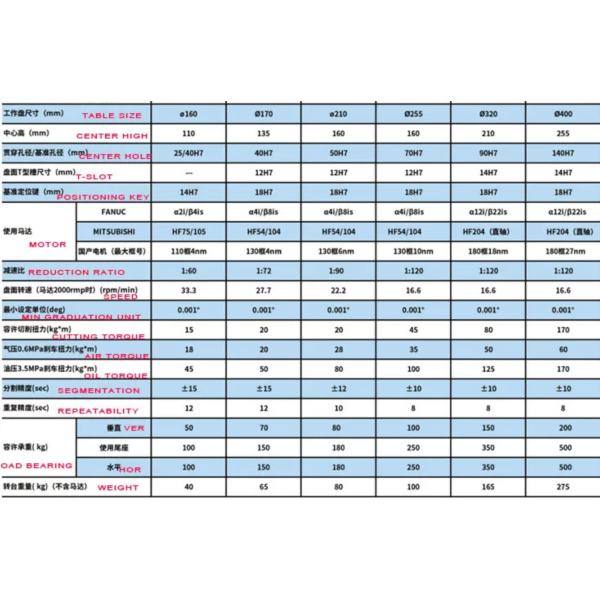

Technical Parameters
Worm Gear 4 Axis CNC Rotary Table D-210
Worm Gear 4 Axis CNC Rotary Table D-210
Worm Gear 4 Axis CNC Rotary Table D-210
Worm Gear 4 Axis CNC Rotary Table D-210
