High-Precision φ135 mm CNC Rotary Table with 83.3 min⁻¹ Max Speed and 45 arcsec Accuracy
High-Precision φ135 mm CNC Rotary Table with 83.3 min⁻¹ Max Speed and 45 arcsec Accuracy
Specifications
Center Hole :
Front Bore:φ50H7×45 (mm),Through Hole:φ30 mm
Place of Origin :
Guangdong, China
Model Number :
RN-100
MOQ :
1 set
Delivery Time :
According To Customer Needs
Indexing Accuracy (Cumulative) :
45 arcsec
Payment Terms :
T/T
Table Diameter :
φ135 mm
Max. Table Rotation Speed :
83.3min⁻¹ (at 3,000 min⁻¹ motor)
Price :
Negotiable
Center Height :
110 mm
Supply Ability :
1000set/month
Spindle Bore Diameter :
φ80 mm
Brand Name :
Juzhuo
Packaging Details :
Wooden Box
Certification :
ISO9001,CE
Description

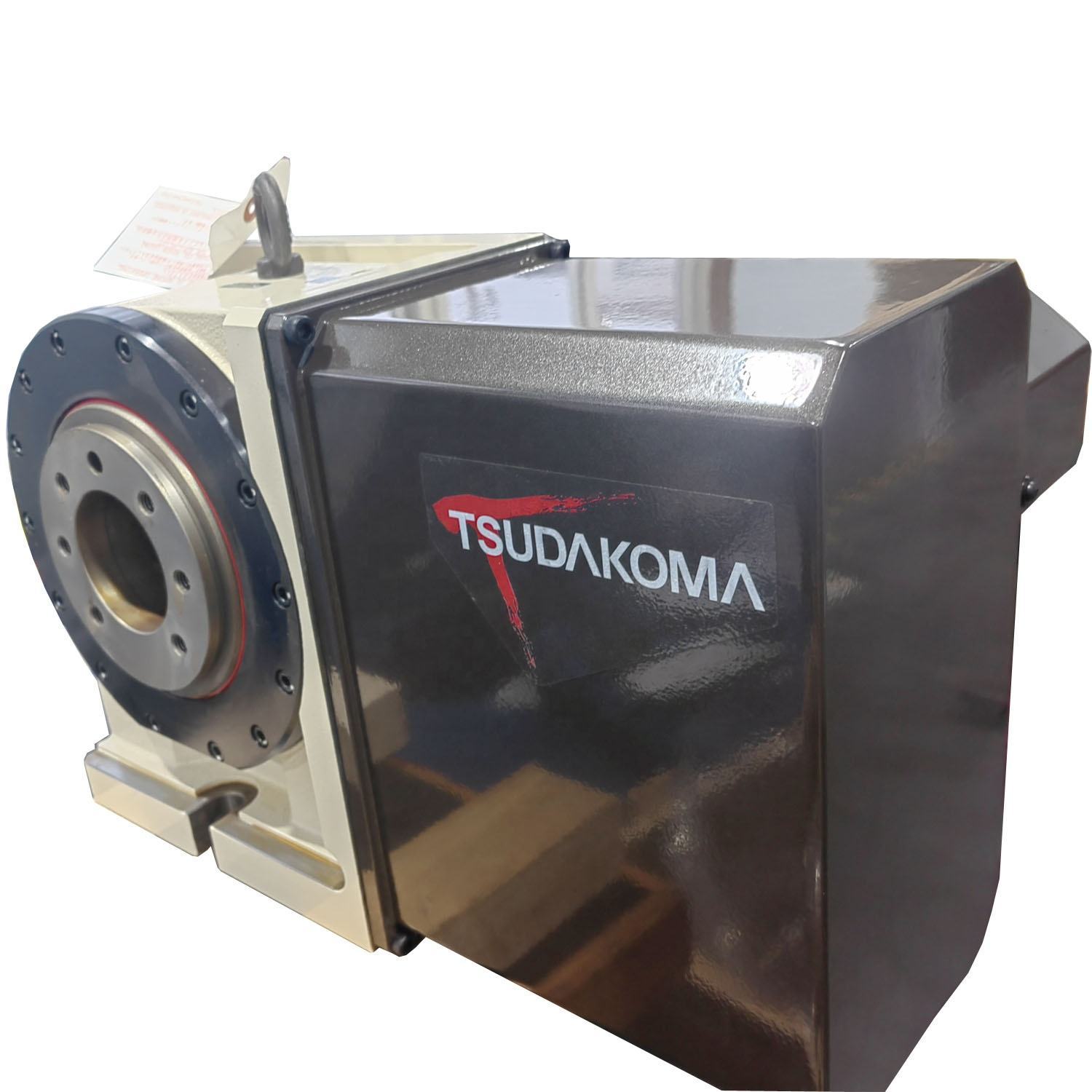

High-Precision 4th-Axis Indexer for CNC Machining Centers
Product Overview

The RN-100 CNC Rotary Table is a compact, lightweight 4th-axis solution with a φ80 mm spindle bore and φ135 mm table. Weighing only 28 kg and driven by a FANUC αiF2 servo motor with 1/36 gear ratio, it achieves 83.3 min⁻¹ max rotation speed — the fastest in the series. Ideal for small machining centers, drill-tap machines, and space-limited automation setups.

Key Features
  • Compact φ80 mm spindle bore, φ135 mm table
  • Ultra-fast 83.3 min⁻¹ max rotation speed
  • FANUC αiF2 servo, 1/36 gear ratio
  • Lightweight 28 kg, easy to mount
  • 80 N*m clamping, 50 kg horizontal load
Technical Specifications
Parameter Detail Value
Application Range R (Right Angle) ✓
Application Range L (Inline) ✓
Spindle Bore Diameter mm φ80
Table Diameter *1 mm φ135 (Optional)
Center Height mm 110
Center Hole Front Bore (mm) φ50H7×45
Center Hole Through Hole (mm) φ30
Table T-slot *1 -- 10H8
Locating Block -- 14h7
Servo Motor (FANUC) -- αiF2
Motor Shaft Equivalent Inertia ×10⁻³ kg*m² 0.23
Product Weight kg 28
Total Gear Ratio -- 1/36
Max. Table Rotation Speed min⁻¹ (at 3,000 min⁻¹ motor) 83.3
Indexing Accuracy (Cumulative) arcsec 45
Clamping Method -- Pneumatic
Clamping Torque (at 0.49 MPa) RWE (N*m) --
Clamping Torque (at 0.49 MPa) RWA (N*m) 80
Gear Strength N*m 176
Load Capacity Vertical Position (with tailstock) (kg) 25 (50)
Load Capacity Horizontal Position (kg) 50
Max. Load (Table Clamped) F (Axial Force) (N) 5,880
Max. Load (Table Clamped) F×L (Moment - Type 1) (N*m) 80
Max. Load (Table Clamped) F×L (Moment - Type 2) (N*m) 156
Max. Workpiece Inertia J = W*D²/8 (kg*m²) 0.10
Applications
  • Small machining centers and drill-tap machines
  • Space-limited automation and robotic cells
  • High-speed indexing of small precision parts
  • Prototype machining and small-batch production
Mounting & Integration
  • Configurations: Dual mounting — R (right-angle) and L (inline) — suits both vertical and horizontal machining centers
  • Drive: FANUC αiF2 servo motor, 1/36 gear ratio, 83.3 min⁻¹ max speed (fastest in series)
  • Clamping: Pneumatic clamping, 80 N*m (RWA) at 0.49 MPa
Options & Ordering
Table Diameter: φ135 (optional)
Tailstock: Optional tailstock support for vertical-position loading
Custom Options: Other options (spindle interface, motor brand, etc.): [To be confirmed by manufacturer]
*1 Table diameter is an optional specification.
*2 Gear ratio with special designation.
All dimensions in mm unless otherwise noted.
