RWE/RWA-200 CNC Rotary Table with 20 arcsec Indexing Accuracy φ120 mm Spindle Bore and 800 N*m Clamping Torque
RWE/RWA-200 CNC Rotary Table with 20 arcsec Indexing Accuracy φ120 mm Spindle Bore and 800 N*m Clamping Torque
Specifications
Center Hole :
Front Bore:φ65H7×45 mm;Through Hole:φ45 mm
Place of Origin :
Guangdong, China
Model Number :
RWE/RWA-200
Supply Ability :
1000set/month
Spindle Bore Diameter :
φ120 mm
MOQ :
1 set
Delivery Time :
According To Customer Needs
Indexing Accuracy (Cumulative) :
20 arcsec
Payment Terms :
T/T
Table Diameter :
φ200 or 250 mm
Max. Table Rotation Speed :
41.6 min⁻¹ (at 3,000 min⁻¹ motor)
Price :
Negotiable
Center Height :
160 mm
Certification :
ISO9001,CE
Brand Name :
Juzhuo
Packaging Details :
Wooden Box
Description

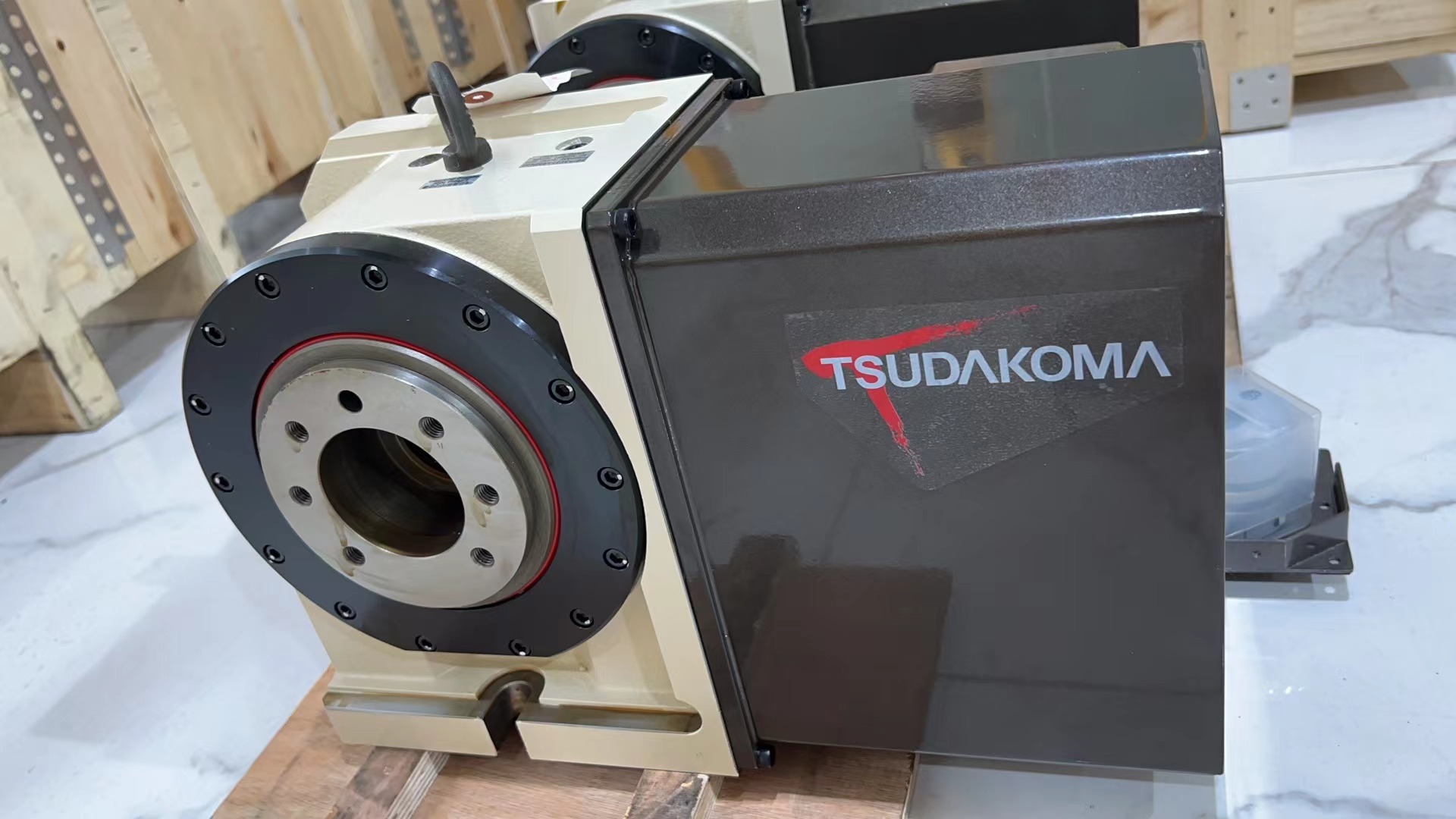

RWE/RWA-200 CNC Rotary Table 20-arcsec 4th-Axis Indexer for Machining Centers
Product Overview

The RWE/RWA-200 CNC Rotary Table is a mid-size 4th-axis solution featuring a φ120 mm spindle bore and 20 arcsec cumulative indexing accuracy. Driven by a FANUC αiS4 servo motor with a 1/72 gear ratio, it provides 41.6 min⁻¹ max rotation speed and up to 800 N*m clamping torque. Suitable for both right-angle and inline mounting configurations.

Key Features
  • φ120 mm spindle bore, φ200/250 mm optional table
  • FANUC αiS4 servo motor, 1/72 gear ratio
  • 20 arcsec high indexing accuracy
  • Up to 800 N*m clamping torque (RWA)
  • 250 kg horizontal load capacity
Technical Specifications
Parameter Detail Value
Application Range R (Right Angle) ✓
Application Range L (Inline) ✓
Spindle Bore Diameter mm φ120
Table Diameter *1 mm φ200 or 250 (Optional)
Center Height mm 160
Center Hole Front Bore (mm) φ65H7×45
Center Hole Through Hole (mm) φ45
Table T-slot *1 -- 12H8
Locating Block -- 18h7
Servo Motor (FANUC) -- αiS4
Motor Shaft Equivalent Inertia ×10⁻³ kg*m² 0.17
Product Weight kg 61
Total Gear Ratio -- 1/72
Max. Table Rotation Speed min⁻¹ (at 3,000 min⁻¹ motor) 41.6
Indexing Accuracy (Cumulative) arcsec 20
Clamping Method -- Pneumatic
Clamping Torque (at 0.49 MPa) RWE (N*m) 400
Clamping Torque (at 0.49 MPa) RWA (N*m) 800
Gear Strength N*m 288
Load Capacity Vertical Position (with tailstock) (kg) 125 (250)
Load Capacity Horizontal Position (kg) 250
Max. Load (Table Clamped) F (Axial Force) (N) 14,400
Max. Load (Table Clamped) F×L (Moment - Type 1) (N*m) 800
Max. Load (Table Clamped) F×L (Moment - Type 2) (N*m) 1,900
Max. Workpiece Inertia J = W*D²/8 (kg*m²) 1.25
Applications
  • Medium machining centers for 4-axis milling, drilling and tapping
  • Multi-face machining of medium-size workpieces
  • Semi-automated production lines requiring up to 800 N*m clamping
  • Die & mold, automotive and general precision machining
Mounting & Integration

Configurations: Dual mounting — R (right-angle) and L (inline) — suits both vertical and horizontal machining centers

Drive: FANUC αiS4 servo motor, 1/72 gear ratio, 41.6 min⁻¹ max speed

Clamping: Pneumatic clamping, 400 N*m (RWE) / 800 N*m (RWA) at 0.49 MPa

Options & Ordering
  • Table Diameter: φ200 or φ250 (optional)
  • Gear Ratio: Special gear ratio designation available on request (*2)
  • Tailstock: Optional tailstock support for vertical-position loading
  • Custom Options: Other options (spindle interface, motor brand, etc.): To be confirmed by manufacturer

*1 Table diameter is an optional specification.

*2 Gear ratio with special designation.

All dimensions in mm unless otherwise noted.
