RWE/RWA-160 CNC Rotary Table with 25 Arcsec Indexing Accuracy φ100 mm Spindle Bore and Pneumatic Clamping
RWE/RWA-160 CNC Rotary Table with 25 Arcsec Indexing Accuracy φ100 mm Spindle Bore and Pneumatic Clamping
Specifications
Center Hole :
Front Bore :φ55H7×45 mm;Through Hole :40 mm
Place of Origin :
Guangdong, China
Model Number :
RN-160
MOQ :
1 set
Delivery Time :
According To Customer Needs
Indexing Accuracy (Cumulative) :
25 arcsec
Payment Terms :
T/T
Table Diameter :
φ160 or 200 mm
Max. Table Rotation Speed :
41.6 min⁻¹ (at 3,000 min⁻¹ motor)
Price :
Negotiable
Center Height :
135 mm
Supply Ability :
1000set/month
Spindle Bore Diameter :
φ100 mm
Certification :
ISO9001,CE
Brand Name :
Juzhuo
Packaging Details :
Wooden Box
Description

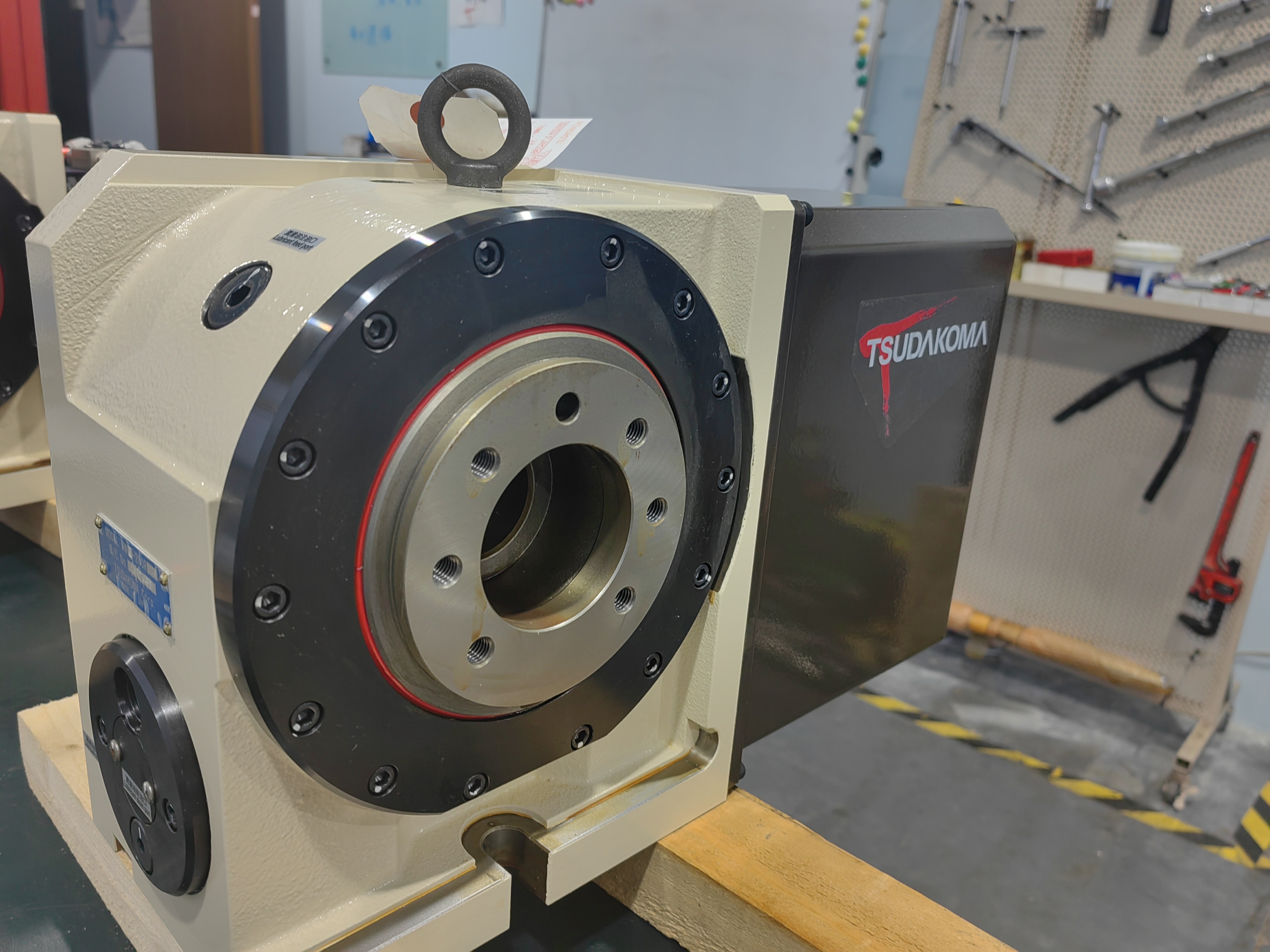

RWE/RWA-160 CNC Rotary Table Precision 4th-Axis Indexer for Machining Centers
Product Overview

The RWE/RWA-160 CNC Rotary Table delivers high-precision 4th-axis indexing for small to medium machining centers. With a φ100 mm spindle bore and pneumatic clamping, it offers rigid positioning and smooth rotation for milling, drilling, and tapping applications. Compact footprint, 40 kg weight, and 25 arcsec indexing accuracy make it ideal for vertical and horizontal machine integration.

Key Features
  • φ100 mm spindle bore with φ55H7×45 front taper
  • Pneumatic clamping up to 500 N*m (RWA)
  • 25 arcsec cumulative indexing accuracy
  • Dual mounting: right-angle (R) and inline (L)
  • Lightweight 40 kg design for easy integration
Technical Specifications
Parameter Detail Value
Application Range R (Right Angle) ✓
Application Range L (Inline) ✓
Spindle Bore Diameter mm φ100
Table Diameter *1 mm φ160 or 200 (Optional)
Center Height mm 135
Center Hole Front Bore (mm) φ55H7×45
Center Hole Through Hole (mm) φ40
Table T-slot *1 -- 12H8
Locating Block -- 14h7
Servo Motor (FANUC) -- αiS2
Motor Shaft Equivalent Inertia ×10⁻³ kg*m² 0.09
Product Weight kg 40
Total Gear Ratio -- 1/72
Max. Table Rotation Speed min⁻¹ (at 3,000 min⁻¹ motor) 41.6
Indexing Accuracy (Cumulative) arcsec 25
Clamping Method -- Pneumatic
Clamping Torque (at 0.49 MPa) RWE (N*m) 250
Clamping Torque (at 0.49 MPa) RWA (N*m) 500
Gear Strength N*m 206
Load Capacity Vertical Position (with tailstock) (kg) 100 (200)
Load Capacity Horizontal Position (kg) 200
Max. Load (Table Clamped) F (Axial Force) (N) 10,800
Max. Load (Table Clamped) F×L (Moment - Type 1) (N*m) 500
Max. Load (Table Clamped) F×L (Moment - Type 2) (N*m) 780
Max. Workpiece Inertia J = W*D²/8 (kg*m²) 0.64
Applications
  • Small-to-medium vertical and horizontal machining centers (VMC / HMC)
  • Multi-face milling, drilling and tapping of precision components
  • Drill-tap centers and compact automation cells
  • Prototype and job-shop machining requiring accurate, lightweight indexing
Mounting & Integration

Configurations: Dual mounting — R (right-angle) and L (inline) — suits both vertical and horizontal machining centers

Drive: FANUC αiS2 servo motor for plug-and-play integration with FANUC CNC controls

Clamping: Pneumatic clamping, 250 N*m (RWE) / 500 N*m (RWA) at 0.49 MPa

Options & Ordering

Table Diameter: φ160 or φ200 (optional)

Gear Ratio: Special gear ratio designation available on request (*2)

Tailstock: Optional tailstock support for vertical-position loading

Custom Options: Other options (spindle interface, motor brand, etc.): [To be confirmed by manufacturer]

*1 Table diameter is an optional specification.
*2 Gear ratio with special designation.
All dimensions in mm unless otherwise noted.
