RWA-320 Heavy-Duty CNC Rotary Table with φ180 mm Spindle Bore, 1,500 N*m Clamping Torque, and 350 kg Load Capacity
RWA-320 Heavy-Duty CNC Rotary Table with φ180 mm Spindle Bore, 1,500 N*m Clamping Torque, and 350 kg Load Capacity
Specifications
Max. Table Rotation Speed :
25 min⁻¹ (at 3,000 min⁻¹ motor)
Place of Origin :
Guangdong, China
Model Number :
RWA-320
MOQ :
1 set
Delivery Time :
According To Customer Needs
Gear Strength :
939 N·m
Payment Terms :
T/T
Table Diameter :
φ320 mm
Clamping Method :
Pneumatic
Price :
Negotiable
Center Height :
210 mm
Supply Ability :
1000set/month
Spindle Bore Diameter :
φ180 mm
Certification :
ISO9001,CE
Brand Name :
Juzhuo
Packaging Details :
Wooden Box
Description
RWA-320 CNC Rotary Table Heavy-Duty 4th-Axis Indexer for Large Workpieces
Product Overview

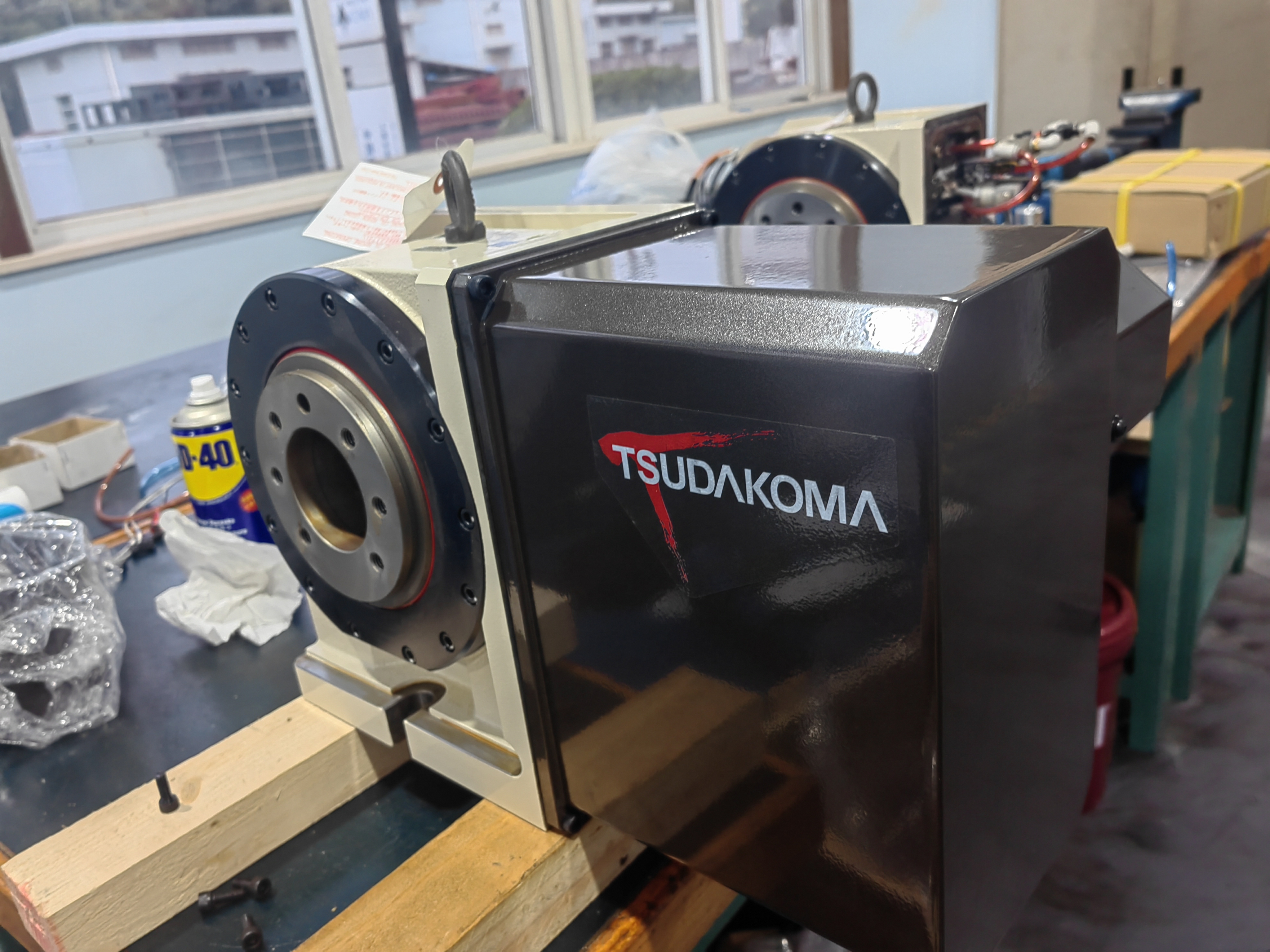

The RWA-320 CNC Rotary Table is a heavy-duty 4th-axis indexer with a φ180 mm spindle bore and φ320 mm table diameter. Featuring a FANUC αiS8 servo drive, 1/120 gear ratio, and 1,500 N*m clamping torque, it handles large workpieces up to 350 kg horizontally. With 24,800 N axial load capacity and 20 arcsec accuracy, it is built for demanding industrial machining environments.

Key Features
  • φ180 mm large spindle bore, φ320 mm table
  • FANUC αiS8 servo, 1/120 gear ratio
  • 1,500 N*m clamping torque, 939 N*m gear strength
  • 350 kg horizontal load, 24,800 N axial force
  • Heavy-duty construction for large workpieces
Technical Specifications
Parameter Detail Value
Application Range R (Right Angle) ✓
Application Range L (Inline) ✓
Spindle Bore Diameter mm φ180
Table Diameter *1 mm φ320 (Optional)
Center Height mm 210
Center Hole Front Bore (mm) φ115H7×45
Center Hole Through Hole (mm) φ85
Table T-slot *1 -- 14H8
Locating Block -- 18h7
Servo Motor (FANUC) -- αiS8
Motor Shaft Equivalent Inertia ×10⁻³ kg*m² 0.52
Product Weight kg 150
Total Gear Ratio -- 1/120 *2
Max. Table Rotation Speed min⁻¹ (at 3,000 min⁻¹ motor) 25
Indexing Accuracy (Cumulative) arcsec 20
Clamping Method -- Pneumatic
Clamping Torque (at 0.49 MPa) RWE (N*m) --
Clamping Torque (at 0.49 MPa) RWA (N*m) 1,500
Gear Strength N*m 939
Load Capacity Vertical Position (with tailstock) (kg) 175 (350)
Load Capacity Horizontal Position (kg) 350
Max. Load (Table Clamped) F (Axial Force) (N) 24,800
Max. Load (Table Clamped) F×L (Moment - Type 1) (N*m) 1,500
Max. Load (Table Clamped) F×L (Moment - Type 2) (N*m) 4,700
Max. Workpiece Inertia J = W*D²/8 (kg*m²) 4.48
Applications
  • Heavy-duty machining centers and large-workpiece machining
  • 4-axis milling and drilling of large, heavy workpieces (up to 350 kg horizontal)
  • Automotive, energy, die & mold and heavy machinery sectors
  • High-load indexing with 24,800 N axial force capacity
Mounting & Integration

Configurations: Dual mounting — R (right-angle) and L (inline) — suits both vertical and horizontal machining centers

Drive: FANUC αiS8 servo motor, 1/120 gear ratio, 25 min⁻¹ max speed

Clamping: Pneumatic clamping, 1,500 N*m (RWA) at 0.49 MPa

Options & Ordering

Table Diameter: φ320 (optional)

Gear Ratio: Special gear ratio designation available on request (*2)

Tailstock: Optional tailstock support for vertical-position loading

Custom Options: Other options (spindle interface, motor brand, etc.): [To be confirmed by manufacturer]

*1 Table diameter is an optional specification.
*2 Gear ratio with special designation.
All dimensions in mm unless otherwise noted.
