Li Zhun 4 Axis CNC Horizontal Machining Center Multipurpose DB1000
Li Zhun 4 Axis CNC Horizontal Machining Center Multipurpose DB1000
Specifications
Brand Name :
Li Zhun
Model Number :
DB-1000
Certification :
SGS
Place of Origin :
China
MOQ :
1
Payment Terms :
T/T
Supply Ability :
10000 per year
Delivery Time :
45-60 Work Days
Packaging Details :
Wooden Box
Condition :
New
Warranty :
1 year
Type :
Horizontal
Worktable size :
1000mm * 1000mm
Maximum load capability :
3000kg
Spindle speed range :
6000RPM
Description

High Speed 4 Axis CNC Horizontal Machining Center High Precision DB1000

Product Description

The 4 axis version of DB-1000 is a very excellent cnc horizontal machining center which features in high speed, high precision and high rigidity. The overall rigidity of the machine is very excellent. All the castings of the body are have been secondary tempering to provide excellent rigidity and stability for the machine to avoide any deformation problems during the process of machining. The performance of the spindle is also excellent. The speed range of the spindle is up to 6000RPM and the materials of the spindle can absorb vibration to avoide any accuracy problems which generated during the process of machining.

Main Features

  • High speed spindle which is up to 6000RPM
  • High rigidity
  • High precision
  • Overall rigidity of the machine is excellent
  • X / Y / Z axis travel distance: 1700mm / 1030mm / 1030mm
  • Maximum cutting feed speed: 1 - 8000RPM

Main Parameters

ITEM MODELS DB 1000
WORKTABLE (WIDTH*LENGTH) mm 1000*1000
T SLOTS mm 5*18*110
DISTANCE BETWEEN T SLOTS mm 7-22*100
DISTANCE FROM SPINDLE NOSE TOWORKBENCH mm 210-1240
MAX LOAD BEARING OF WORKTABLE kg 3000
X/Y/Z AXIS TRAVEL mm 1700/1030/1030
SPINDLE HOLE TAPER BT50
SPINDLE SPEED RANGE r/min 6000
TRANSMISSION OF SPINDLE BOX BELT/DIRECT Optional
X/Y/Z RAPID FEED SPEED m/min 16/16/16
MAX CUTTING FEED SPEED mm/min 1-8000
MACHINE DIMENSION mm 5430*6450*4590
MACHINE WEIGHT kg 33000

Standard Accessories Optional Accessories
Mitsubishi M80VB Controller Fanuc Oi-MD mate Controller
Air Blast through spindle BT30 Direct Type (12000/15000/18000/20000/24000rpm)
Rigid tapping BT30 Built-IN Type (24000rpm)
Rs232 interface BT40 Direct Type (10000/15000/18000/20000rpm)
CF card interface ATC-BT30 16T/18T/21T
Word lamp ATC-BT40 16T/18T
Alarm lamp Around spindle cutting coolant unit
Auto power off Screw Type Chip Conveyor with Car
Auto lubricantion system Chain Type Chip Conveyor with Car
Cutting coolant unit Column raised: 100mm/200mm
Flushing device Tool lengthe measurement system
Full splash guard Disk type oil-water spearator
Heat exchange for control cabinet oil mist collector
Leveling Bolts and leveling Blocks Ath Axis
Tool Box Auto door
CE

Product Details

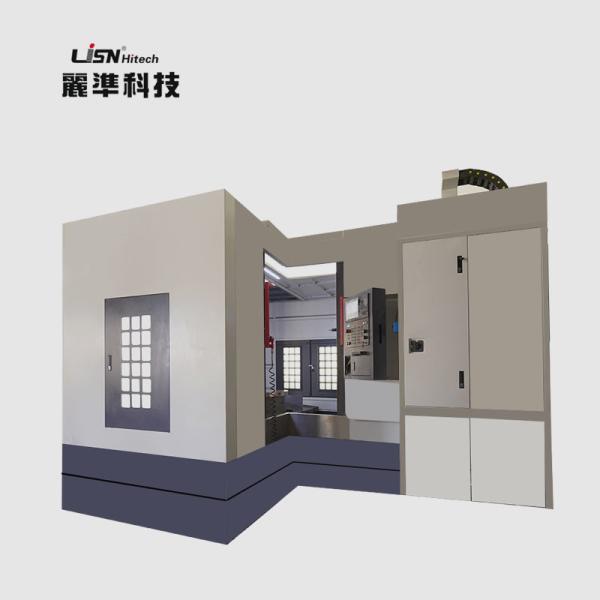

Li Zhun 4 Axis CNC Horizontal Machining Center Multipurpose DB1000

FAQ

1. Is it all right to make customer's own brand name?

A: yes. we are available with OEM

2. Are you a manufactuer or trading company?

A:We are the manufacturer

3. Can you do the design for us?

A: yes. if you want a different control system design or higher column , we are available.

4 . What is your terms of delivery?

A: FOB shenzhen.

5. What's your payment term?

A: T/T OR L/C at sight.
